January 2007
4-155
WorkCentre 7132
REP 16.3.1
Repairs/Adjustments
Reversion 4.0
REP 16.3.1 H-Transport Belt
Parts List on PL 17.3
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
CAUTION
Check that “Ready to Copy” is displayed on the Control Panel display.
1. Remove the H-Transport Assembly. (REP 16.1.1)

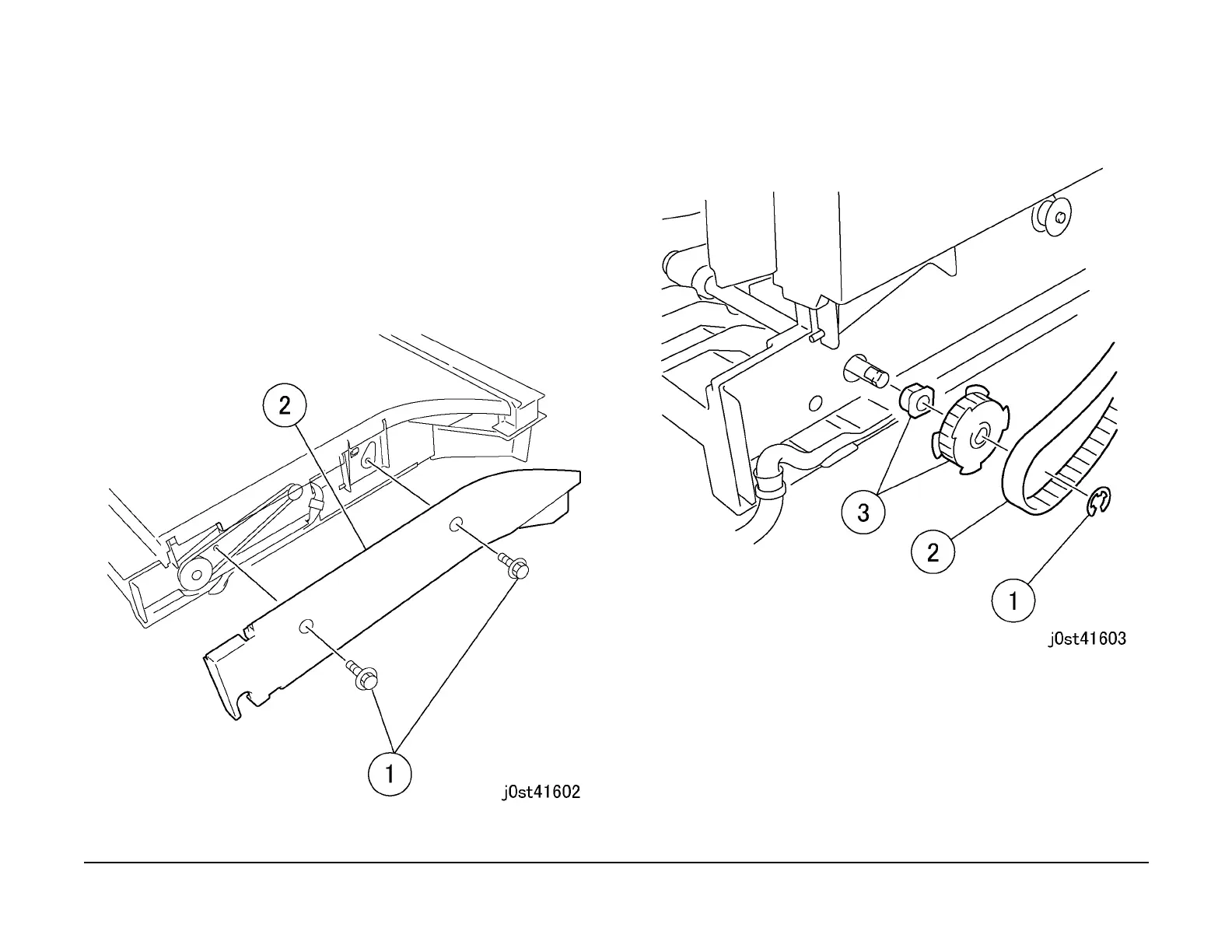

2. Remove the H-Transport Rear Cover. (Figure 1)
1. Remove the screws (x2).
2. Remove the H-Transport Rear Cover.
Figure 1 Removing the H-Transport Rear Cover
3. Remove the belt. (Figure 2)
1. Remove the E-Clip.
2. Remove the belt.
3. Remove the pulley and bearing.
Figure 2 Removing the belt
4. Remove the Transport Roll. (Figure 3)
1. Remove the E-Clip and bearing.
2. Remove the Transport Roll.
To Next Page
