Xerox WorkCentre 7132 Service Documentation

January 2007
4-156
WorkCentre 7132
REP 16.3.1
Reversion 4.0
Repairs/Adjustments

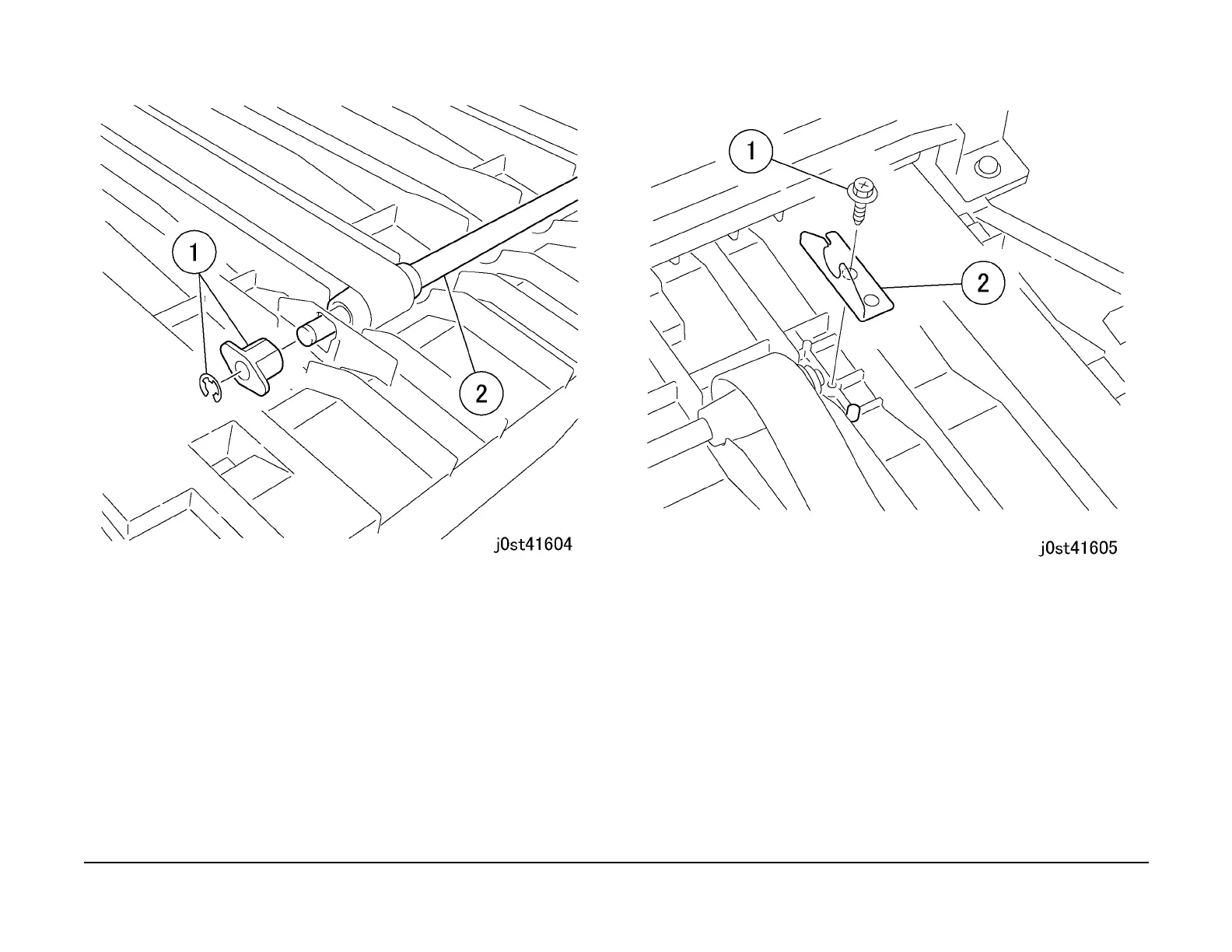

Figure 3 Removing the Transport Roll
5. Remove the bracket. (Figure 4)
1. Remove the screw.
2. Remove the bracket.
Figure 4 Removing the bracket
6. Remove the H-Transport Belt. (Figure 5)
1. Remove the rollers (x2).
2. Remove the H-Transport Belts (x2).
