January 2007
4-120
WorkCentre 7132
REP 13.6.1, REP 13.8.1
Reversion 4.0
Repairs/Adjustments

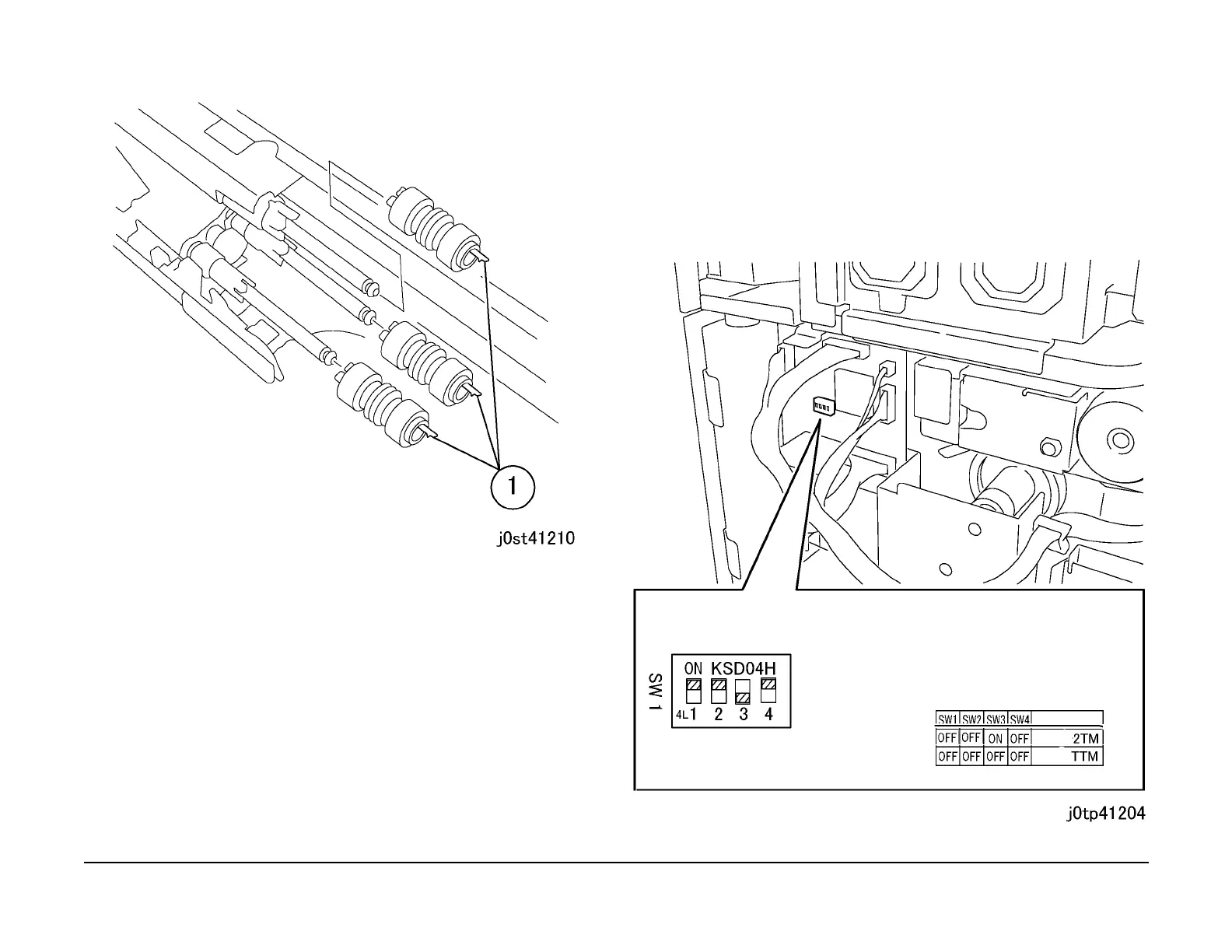

Figure 2 Removing the Feed/Retard/Nudger Roll
Replacement
1. To install, carry out the removal steps in reverse order.
REP 13.8.1 TTM PWB
Parts List on PL 15.9
Replacement
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
1. Before replacing the 2TM PWB, read and record the values at NVM location 742-022 and
742-023.
2. When replacing the TTM PWB, set the TTM PWB Dip Switch to the position as shown.
• Model (Figure 1)
Figure 1 Setting the Dip Switch
