January 2007
5-38
WorkCentre 7132
PL 12.1
Reversion 4.0
Parts-list

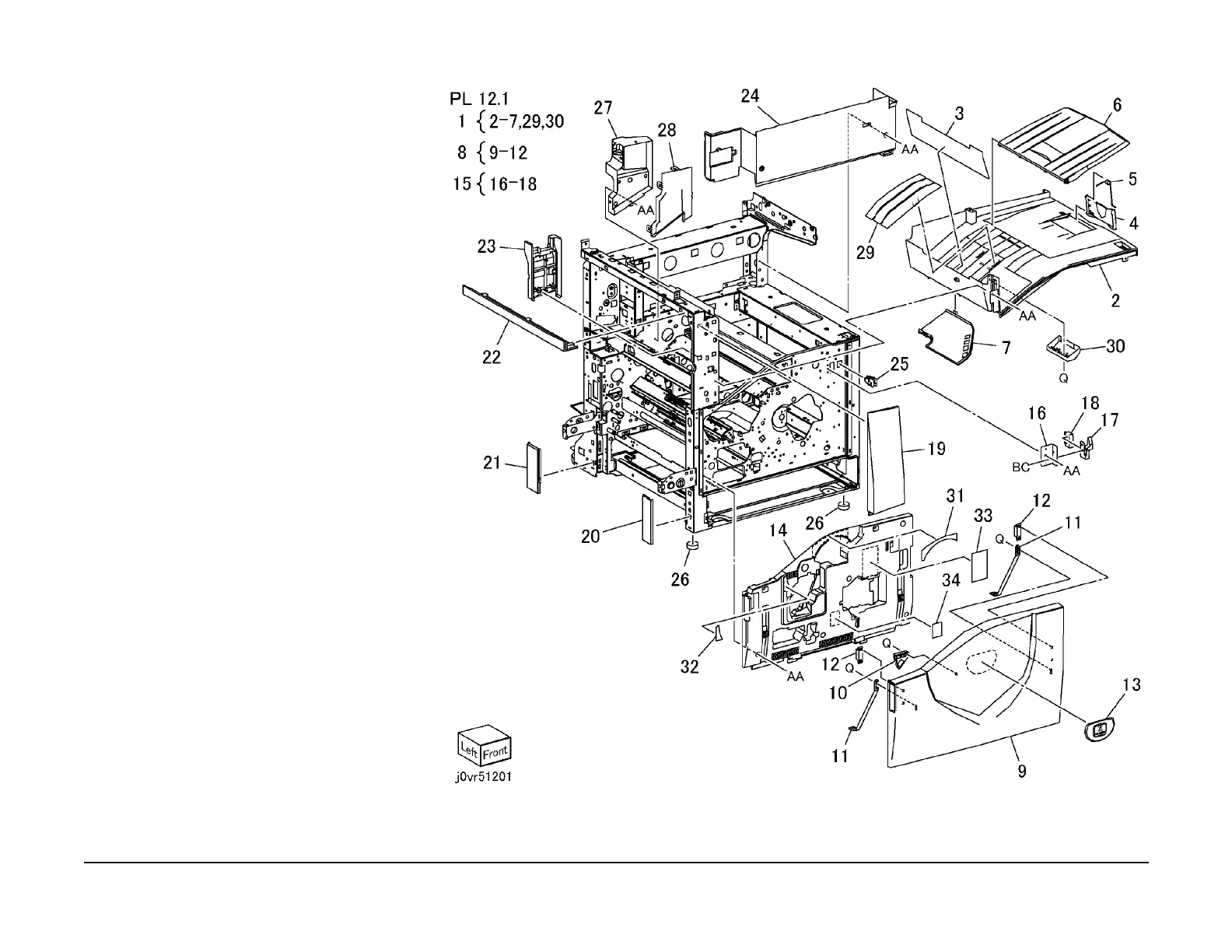

PL 12.1 Cover-Front, Left
Item Part Description
1 – Top Cover Assembly (Not Spared)
(REP 10.1.1)
2 – Top Cover (P/O PL 12.1 Item 1)
3 – Tray Top Pad (P/O PL 12.1 Item 1)
4 – Stopper (P/O PL 12.1 Item 1)
5 – Torsion Spring (P/O PL 12.1 Item 1)
6 – ADD Tray (P/O PL 12.1 Item 1)
7 – Lower Duct (P/O PL 12.1 Item 1)
8 802K83660 Front Cover Assembly (REP
10.2.2)
9 – Front Cover (P/O PL 12.1 Item 8)
10 – Front Guide (P/O PL 12.1 Item 8)
11 802E88720 Strip
12 121E92870 Catch Magnet
13 848K06221 Logo Badge
14 – Inner Front Cover (Not Spared)
(REP 10.2.2)
15 – Interlock Switch Assembly (Not
Spared)
16 – Interlock Switch Bracket (P/O PL
12.1 Item 15)
17 – Interlock Switch Plate (P/O PL 12.1
Item 15)
18 – Front Interlock Switch 2 (5vdc) (P/O
PL 12.1 Item 15)
19 – Fuser Front Cover (Not Spared)
(REP 10.1.1)
20 – Lefthand Front Cover (Not Spared)
21 – Lefthand Rear Cover (Not Spared)
22 – Lefthand IIT Cover (Not Spared)
23 – Exit Front Cover (Not Spared)
24 – Top Rear Cover (Not Spared)
25 110E97990 Front Interlock Switch 1 (24vdc)
26 – IOT Foot (Not Spared)
27 – Front Fuser Duct (Not Spared)
28 – Duct Cover (Not Spared)
29 – Add 2 Tray (P/O PL 12.1 Item 1)
30 – Cover (P/O PL 12.1 Item 1)
31 – IBT Cleaner Label (Not Spared)
32 – IBT Label (Not Spared)
33 – CRU Instruction Label (Not Spared)
34 – Blind Inner Cover (Not Spared)
