Xerox WorkCentre 7132 Service Documentation

January 2007
5-50
WorkCentre 7132
PL 14.5
Reversion 4.0
Parts-list

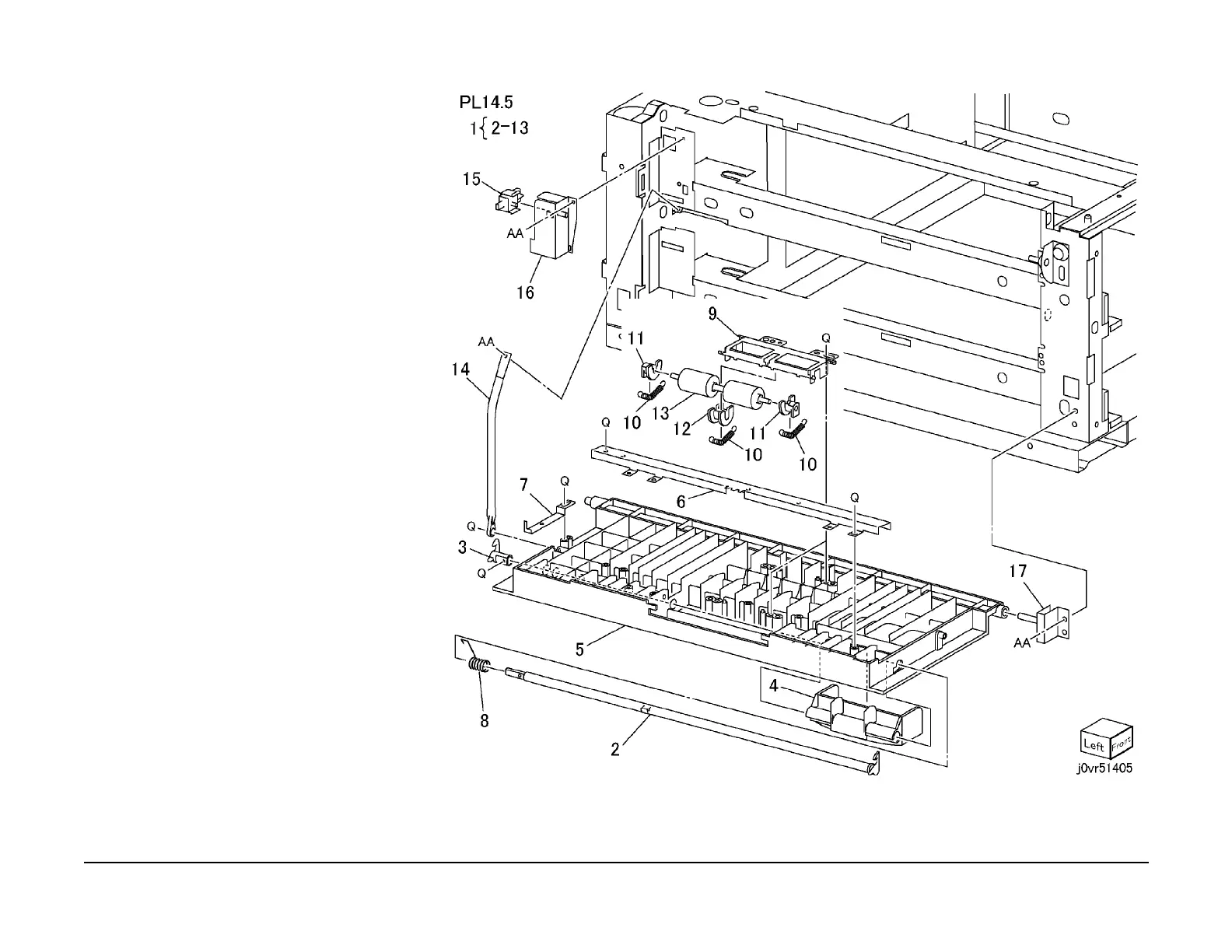

PL 14.5 Left Cover-2TM
Item Part Description
1 802K70854 Left Lower Cover Assembly
2 – Shaft Latch (P/O PL 14.5 Item 1)
3 – Hook (P/O PL 14.5 Item 1)
4 – Handle (P/O PL 14.5 Item 1)
5 – Left Cover (P/O PL 14.5 Item 1)
6 – Chute (P/O PL 14.5 Item 1)
7 – Actuator (P/O PL 14.5 Item 1)
8 – Latch Spring (P/O PL 14.5 Item 1)
9 – Pinch Bracket (P/O PL 14.5 Item 1)
10 – Pinch Spring (P/O PL 14.5 Item 1)
11 – Bearing (P/O PL 14.5 Item 1)
12 – Bearing (P/O PL 14.5 Item 1)
13 059E98190 Pinch Roll
14 830E45710 Lefthand Cover Support
15 110E12220 Left Cover Interlock Switch
16 – Interlock Bracket (Not Spared)
17 – Pivot Bracket (Not Spared)
