REP 4.2.3 Print Drum
Parts List on PL 4.1
Removal
1. Open the Front Door.
2. Preparing to remove the Print Drum. (Figure 1)

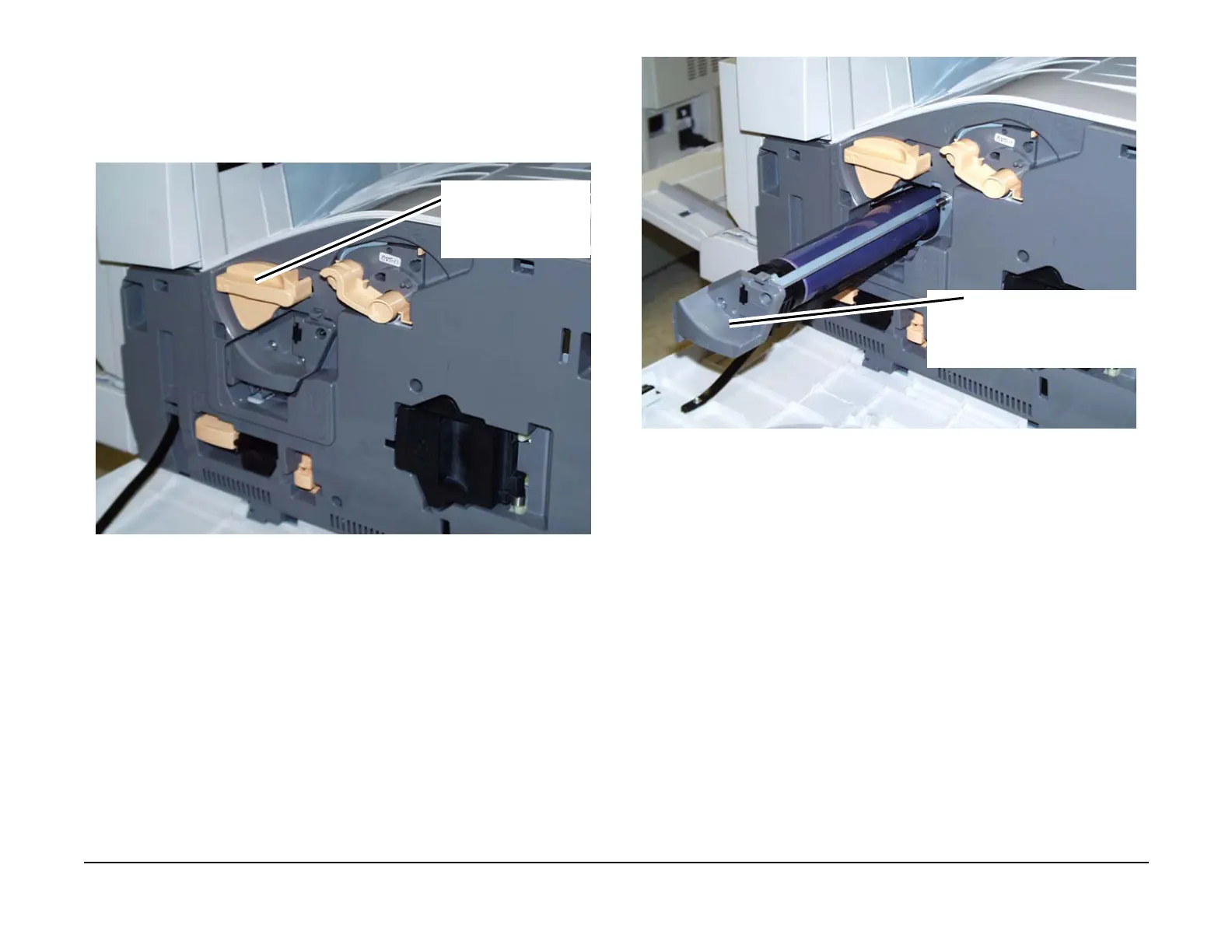

Figure 1 Preparing to remove the Print Drum
3. Removing the Print Drum from the machine. (Figure 2)
Figure 2 Removing the Print Drum
1
Rotate the latch
handle clock-
wise
1
Pull the Print Drum from
the machine
