January 2007
4-209
WorkCentre 7132
REP 22.5.4, REP 22.5.5
Repairs/Adjustments
Reversion 4.0
8. Remove the Support Bearing from the Main Paddle Shaft Assembly. (Figure 6)
(1)Remove E-Clip.
(2)Remove Support Bearing.

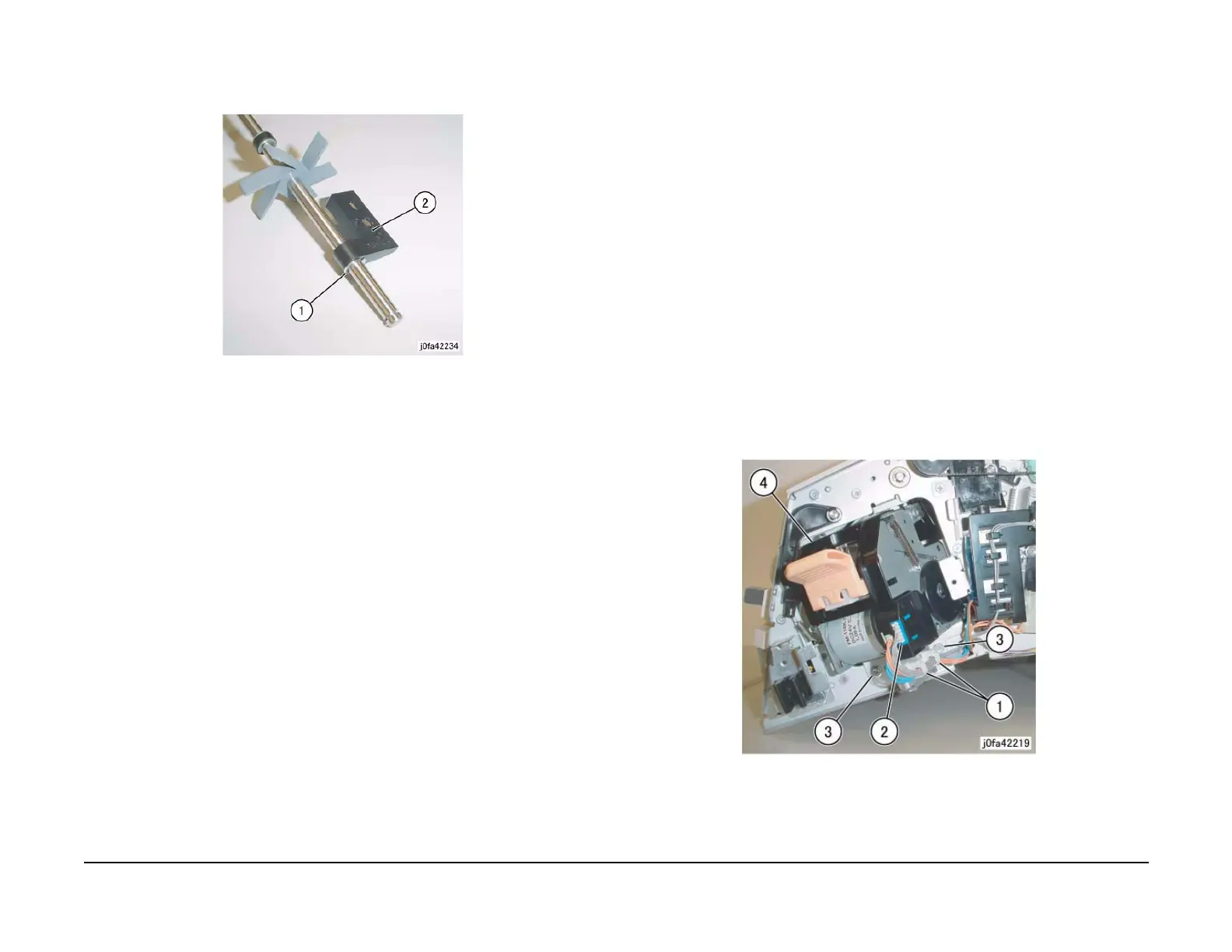

Figure 6 Removing the Support Bearing (j0fa42234)
Replacement
1. Reverse the removal procedure for replacement.
REP 22.5.5 Lower Chute Assembly
Parts List on PL 22.5
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
CAUTION
Before turning OFF the power switch, note the following to prevent loss of customer data.
[with the FAX function]
Check that the “Job in Memory” lamp is off. Press the “Job Status” button and check that no job
is in progress.
[with the Printer function]
Check that “Ready to print/send” is displayed on the Control Panel.
1. Remove the A-Finisher from the machine.
2. Remove the Compile Assembly. (REP 22.9.1)
3. Turn over the A-Finisher (Transport).
4. Remove the Stapler Assembly. (Figure 1)
(1)Release Clamps (2) and remove the wire.
(2)Disconnect Connectors (2).
(3)Remove Screws (2).
(4)Remove Stapler Assembly.
Figure 1 Removing the Stapler Assembly (j0fa42219)
5. Turn over the A-Finisher.
6. Remove the Transport Motor. (Figure 2)
(1)Remove Screws (2).
To Next Page
