Xerox WorkCentre 7132 Service Documentation

January 2007
5-96
WorkCentre 7132
PL 22.9
Reversion 4.0
Parts-list

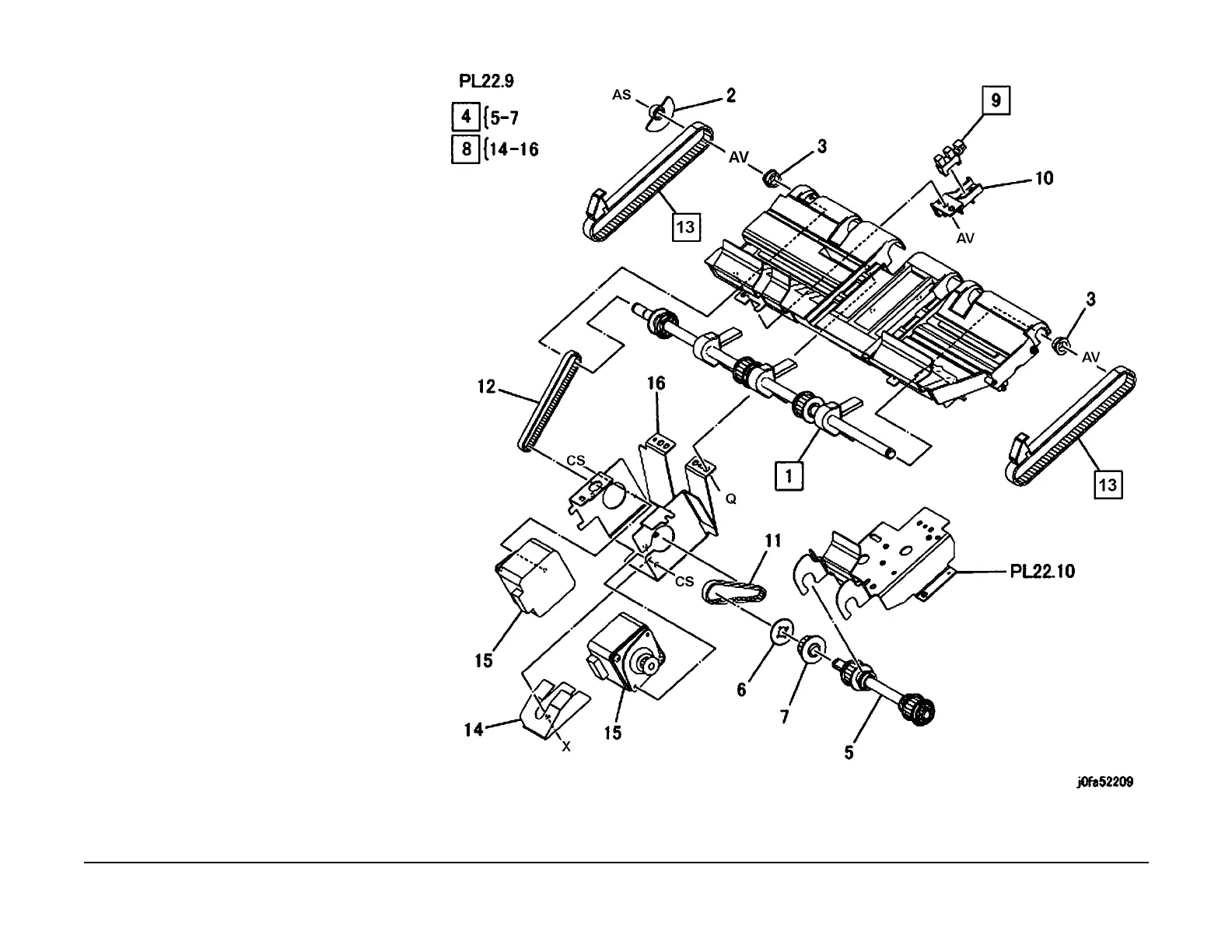

PL 22.9 Compile Assembly (Part 1 of
2)
Item Part Description
1 006K25010 Set Clamp Shaft (REP 22.9.2)
2 120E27220 Actuator
3 413W11860 Bearing
4 006K25020 Eject Shaft Assembly (REP 22.9.6)
5 – Eject Shaft (P/O PL 22.9 Item 4)
6 – Spacer (P/O PL 22.9 Item 4)
7 – Pulley (P/O PL 22.9 Item 4)
8 068K29830 Eject/Set Clamp Motor Assembly
(REP 22.9.4)
9 930W00111 Rear Tamper Home Sensor (REP
22.9.5)
10 – Support (P/O item 8)
11 423W26754 Belt
12 423W29554 Belt
13 023K91530 Eject Belt (REP 22.9.3)
14 – Spring (P/O item 8)
15 – Eject Motor, Set Clamp Motor (P/O
item 8)
16 – Bracket (P/O item 8)
