Xerox WorkCentre 7132 Service Documentation

January 2007
5-22
WorkCentre 7132
PL 6.2
Reversion 4.0
Parts-list

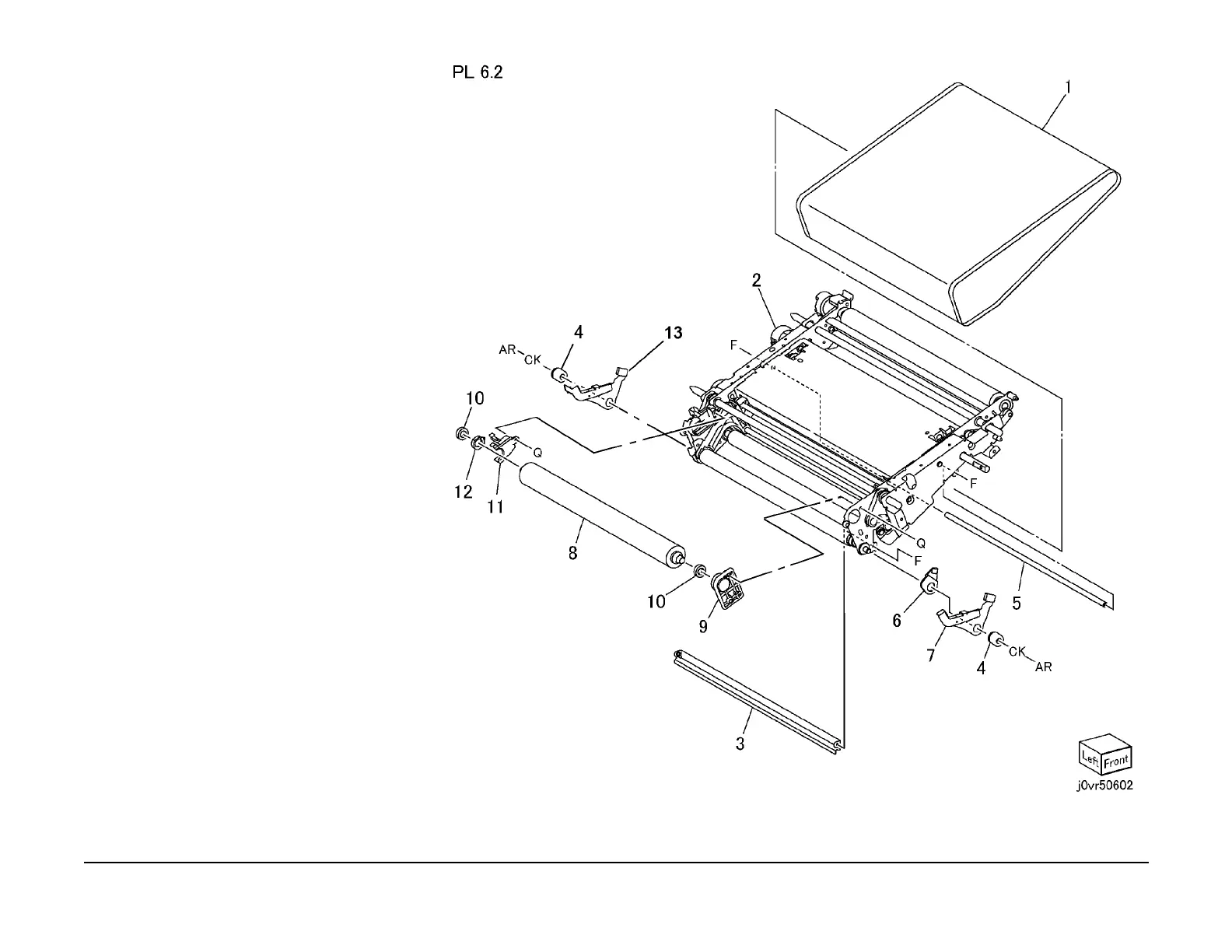

PL 6.2 IBT Belt Assembly
Item Part Description
1 064K92332 IBT Belt (REP 4.2.5)
2 – IBT Frame (P/O PL 6.1 Item 6)
3 – Lower Tie Plate (P/O PL 6.1 Item 6)
4 – Bearing (P/O PL 6.1 Item 6)
5 – BTR 1 Retract Shaft (P/O PL 6.1
Item 6)
6 – Spacer (P/O PL 6.1 Item 6)
7 031K93360 Contact Arm
8 059K43080 Backup Roll
9 – Roll Bur Housing (P/O PL 6.1 Item
6)
10 – Ball Bearing (P/O PL 6.1 Item 6)
11 – Bias BUR Cover (P/O PL 6.1 Item
6)
12 – Conductive BUR Bearing (P/O PL
6.1 Item 6)
13 031K93370 Rear Contact Arm
