January 2007
5-58
WorkCentre 7132
PL 15.5
Reversion 4.0
Parts-list

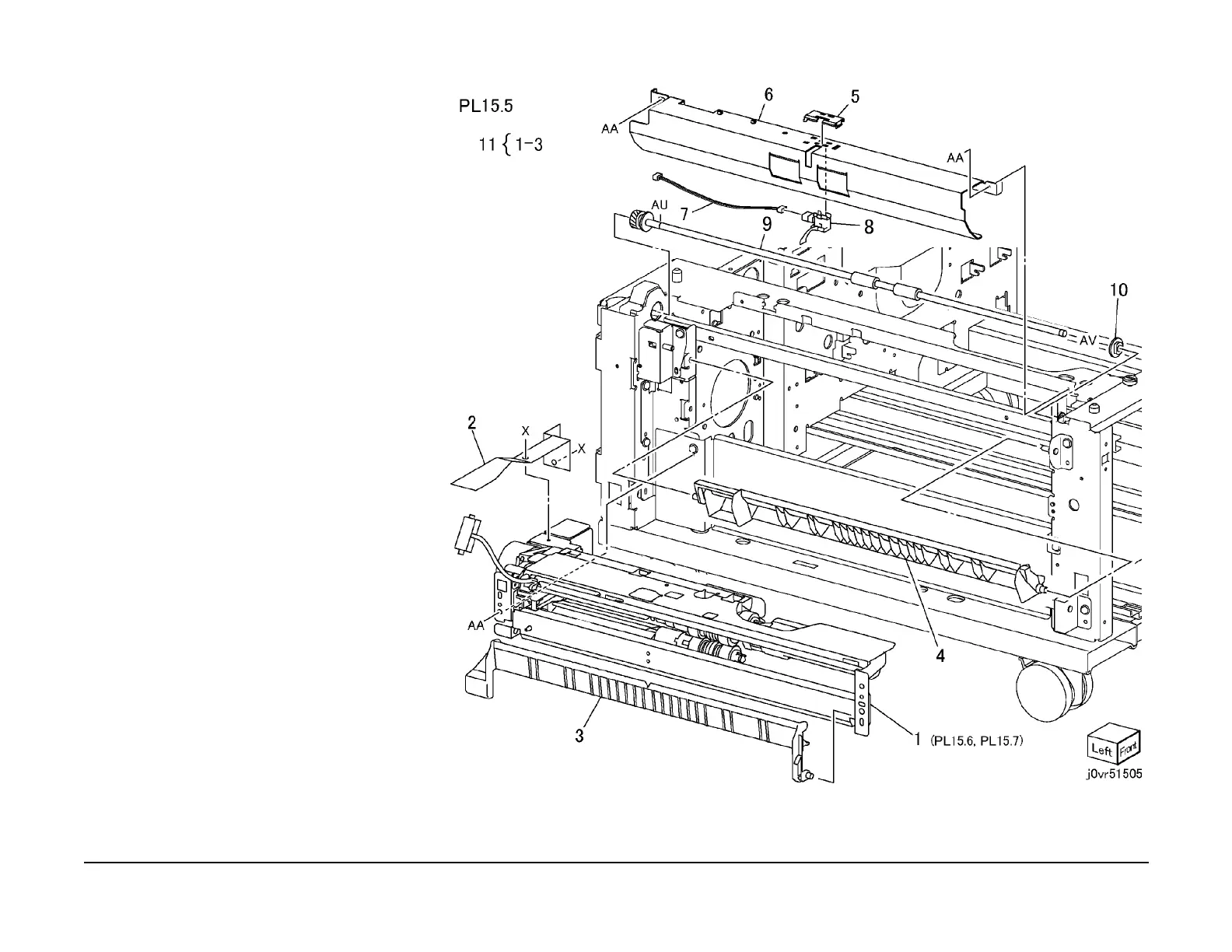

PL 15.5 Paper Feed (2 of 2)-TTM
Item Part Description
1 059K42524 Tray 2 Feeder (REP 13.5.1)
2 – Cover (P/O PL 15.5 Item 11)
3 054E22622 Feed Out Chute
4 – Feed Low Chute (Not Spared)
5 – Sensor Cover (Not Spared)
6 – Chute (Not Spared)
7 962K18171 Harness
8 130K64121 Feed Out Sensor
9 059K40370 Transport Roll
10 – Bearing (Not Spared)
11 059K42950 Feeder Assembly
