January 2007
5-36
WorkCentre 7132
PL 11.3
Reversion 4.0
Parts-list

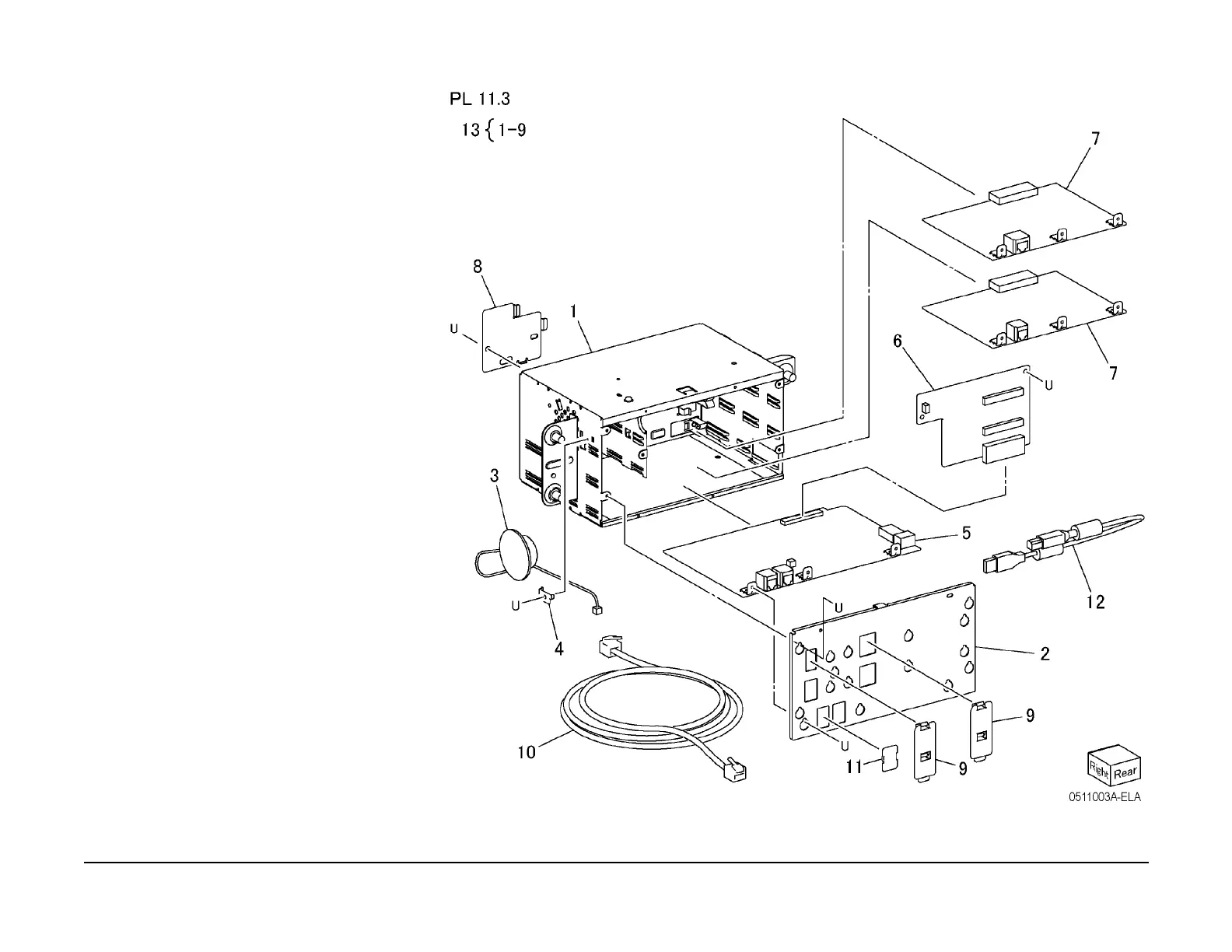

PL 11.3 FAX Unit
Item Part Description
1 – FAX Chassis Box (P/O PL 11.3
Item 13)
2 – Panel (P/O PL 11.3 Item 13)
3 – Speaker (P/O PL 11.3 Item 13)
4 – speaker Bracket (P/O PL 11.3 Item
13)
5 960K24942 FCB PWB (XC)
– 960K24952 FCB PWB (XE)
– 960K24962 FCB PWB (ARZ)
6 960K28320 EMB PWB
7 960K15962 G3B PWB (XC)
– 960K18771 G3B PWB (XE)
8 – Back Left Fax Cover (P/O PL 11.3
Item 13)
9 – Snap Fax Cover (P/O PL 11.3 Item
13)
10 – Tel Cable (Not Spared)
11 – 1CH Snap Fax Cover (Not Spared)
12 117K37370 USB Cable
13 – Fax Box Unit (Not Spared)
