Xerox WorkCentre 7132 Service Documentation

January 2007
4-77
WorkCentre 7132
REP 11.1.1
Repairs/Adjustments
Reversion 4.0
REP 11.1.1 Platen Cushion
Parts List on PL 13.1
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
1. Remove the Platen Cushion. (Figure 1)
1. Remove the Platen Cushion.

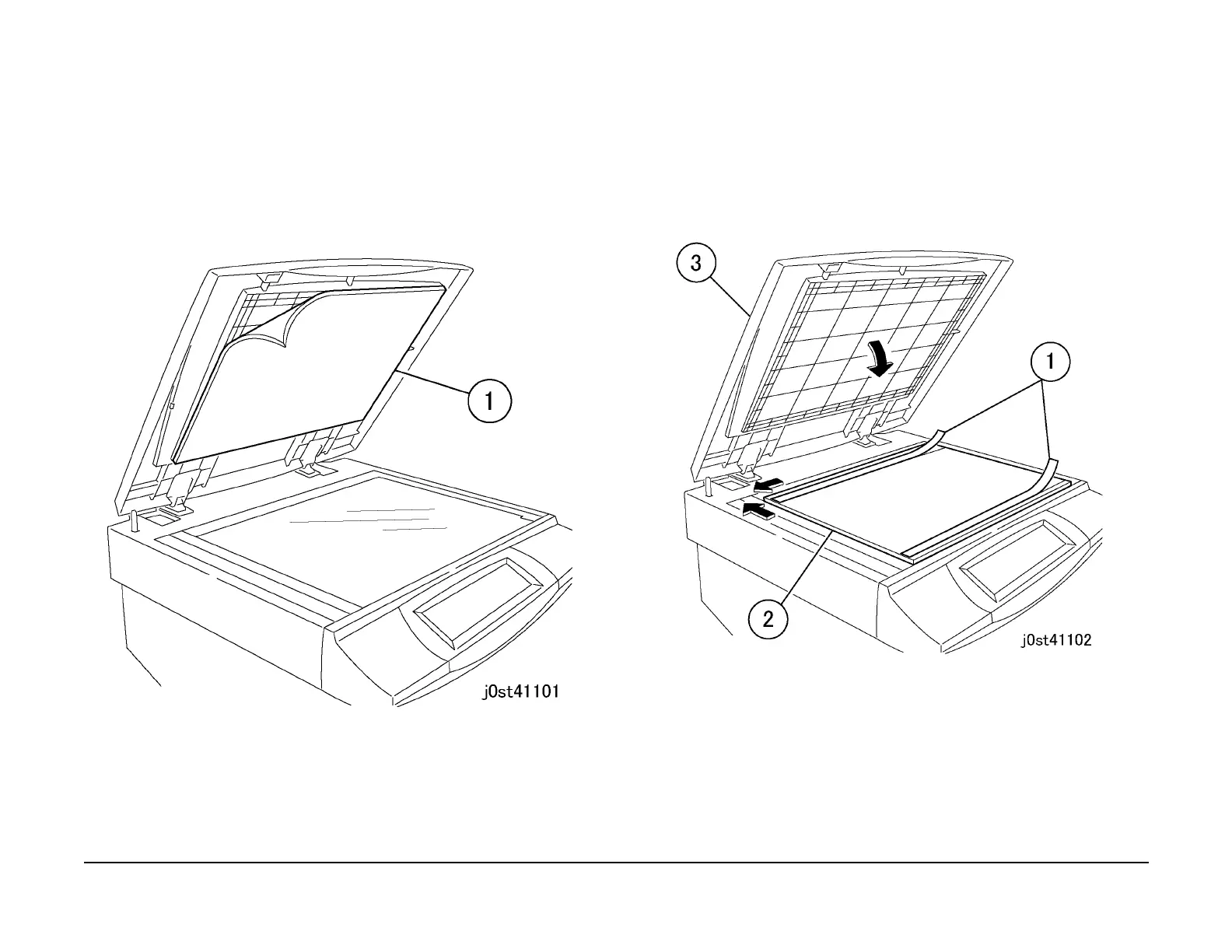

Figure 1 Removing the Platen Cushion
Replacement
NOTE: Remove all remaining tapes on the Platen Cover after the Platen Cushion has been
removed.
1. Install the Platen Cushion. (Figure 2)
1. Remove the seal.
2. Press gently in the direction of the arrow.
3. Slowly lower the Platen Cover pressing on the Platen Cushion.
Figure 2 Installing the Platen Cushion
