Xerox WorkCentre 7132 Service Documentation

January 2007
5-43
WorkCentre 7132
PL 13.4
Parts-list
Reversion 4.0

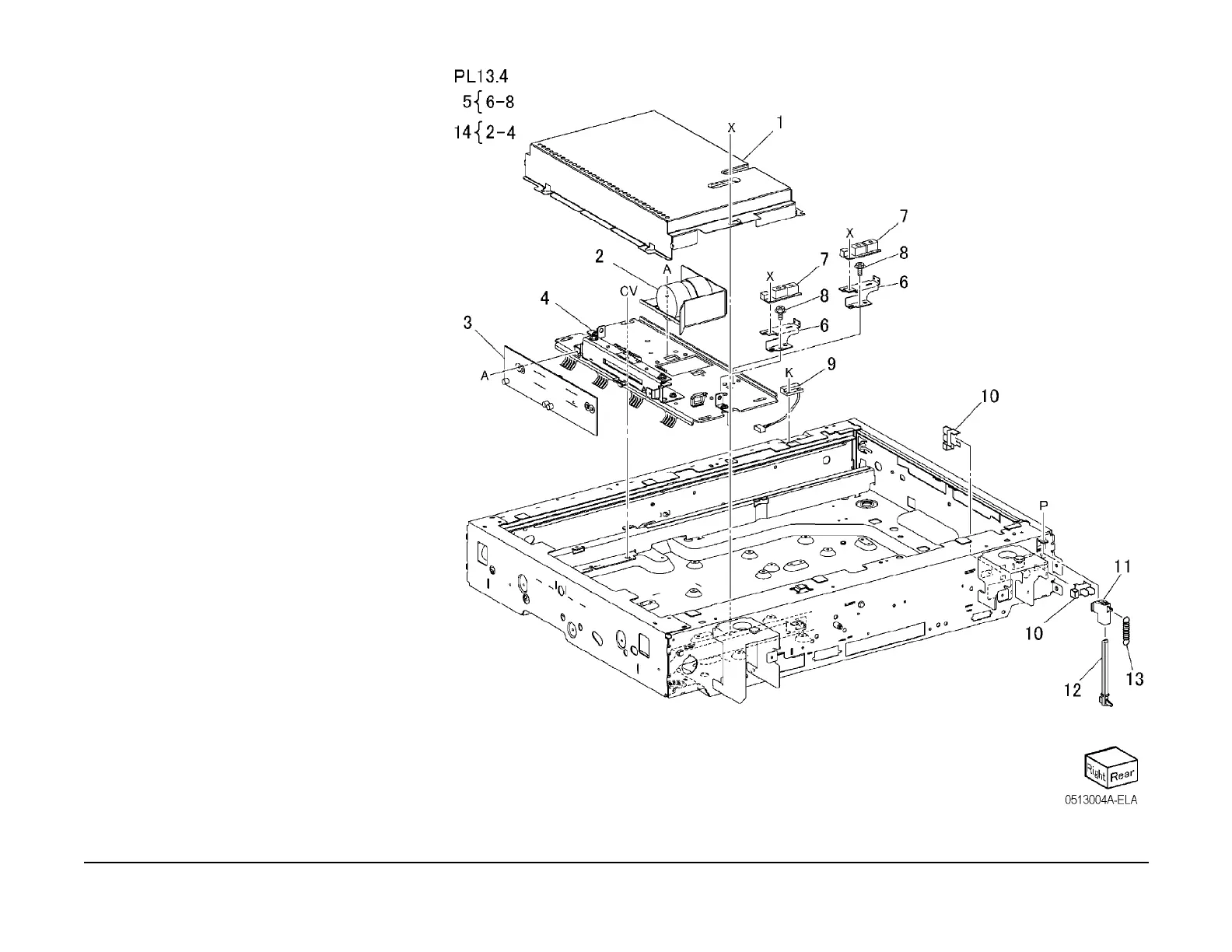

PL 13.4 CCD PWB, Sensor
Item Part Description
1 – Lens Cover (P/O PL 13.1 Item 12)
2 – Lens (P/O PL 13.4 Item 14)
3 – CCD PWB (P/O PL 13.4 Item 14)
4 – Lens Plate Base (P/O PL 13.4 Item
14) (REP 11.4.1)
5 – APS Sensor (P/O PL 13.1 Item 12)
6 – APS Bracket (P/O PL 13.1 Item 12)
7 130K64150 APS Sensor
8 – Screw (P/O PL 13.1 Item 12)
9 110K11960 Platen Open Switch
10 130E87280 IIT Registration Sensor, Platen
Angle Sensor
11 – Actuator Support (P/O PL 13.1 Item
12)
12 – Platen Actuator Sensor (P/O PL
13.1 Item 12)
13 – Extension Spring (P/O PL 13.1 Item
12)
14 604K29710 Lens Kit (220V)
– 604K29711 Lens Kit (120V)
