January 2007
4-117
WorkCentre 7132
REP 13.5.1
Repairs/Adjustments
Reversion 4.0
REP 13.5.1 Tray 2 Feeder (TTM)
Parts List on PL 15.5
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
1. Remove Tray 2 (REP 13.1.1).
2. Open the Left Cover.

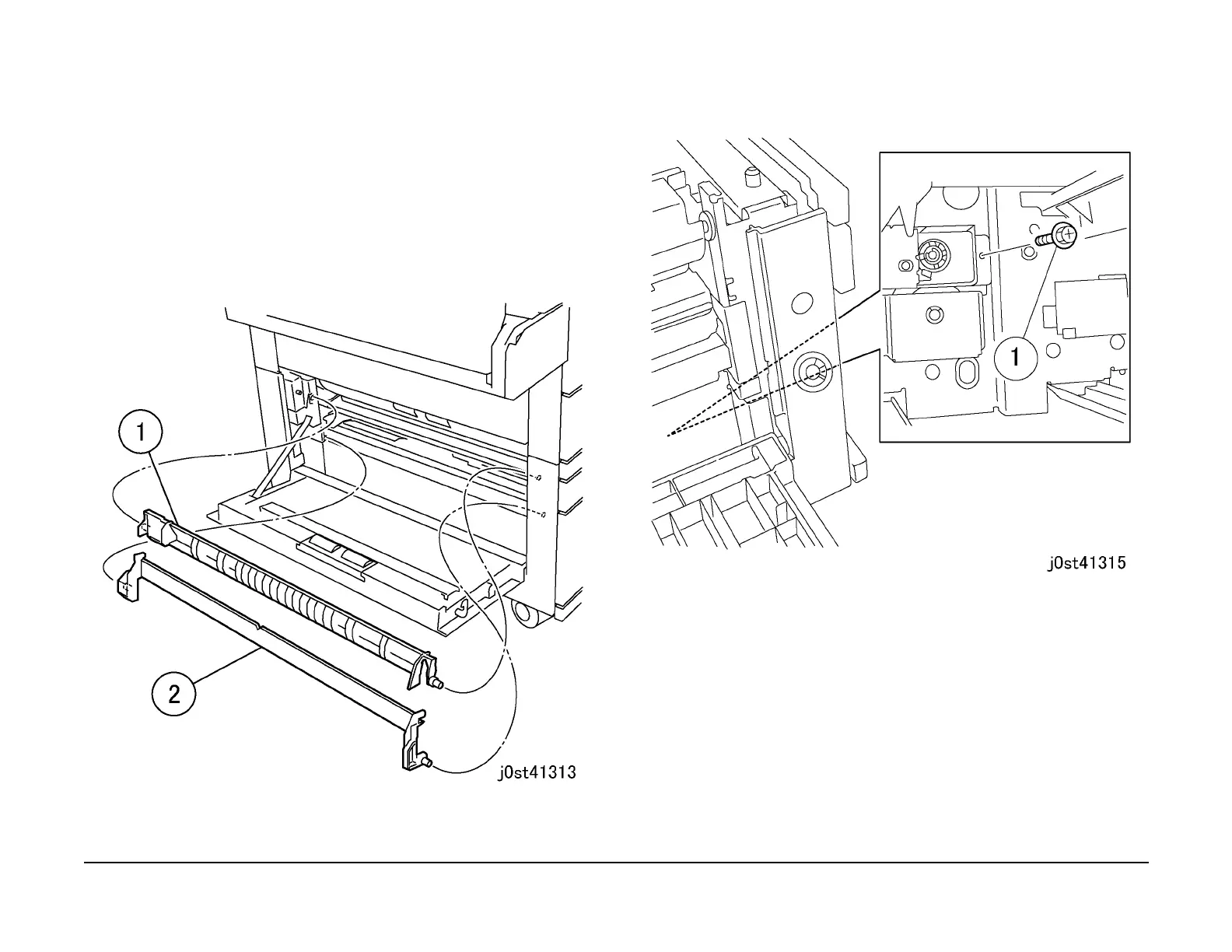

3. Remove the Upper/Lower Chute. (Figure 1)
1. Remove the Upper Chute.
2. Remove the Lower Chute.
Figure 1 Removing the Upper/Lower Chute
4. Remove the screw. (Figure 2)
1. Remove the screw.
Figure 2 Removing the screw
5. Remove the Tray 2 Feeder Assembly. (Figure 3)
1. Remove the screws.
2. Release the Wire Harness from the clamp.
3. Disconnect the connector.
4. Remove the screws (2).
5. Remove the Tray 2 Assembly.
NOTE: This image is seen as looking in
from the front of the machine and viewing
the rear frame. This screw is one of 3 that
secures the Feeder Assembly.
To Next Page
