Xerox WorkCentre 7132 Service Documentation

January 2007
4-116
WorkCentre 7132
REP 13.4.1
Reversion 4.0
Repairs/Adjustments
3. Remove the screws (2).
4. Remove the Lower Chute.

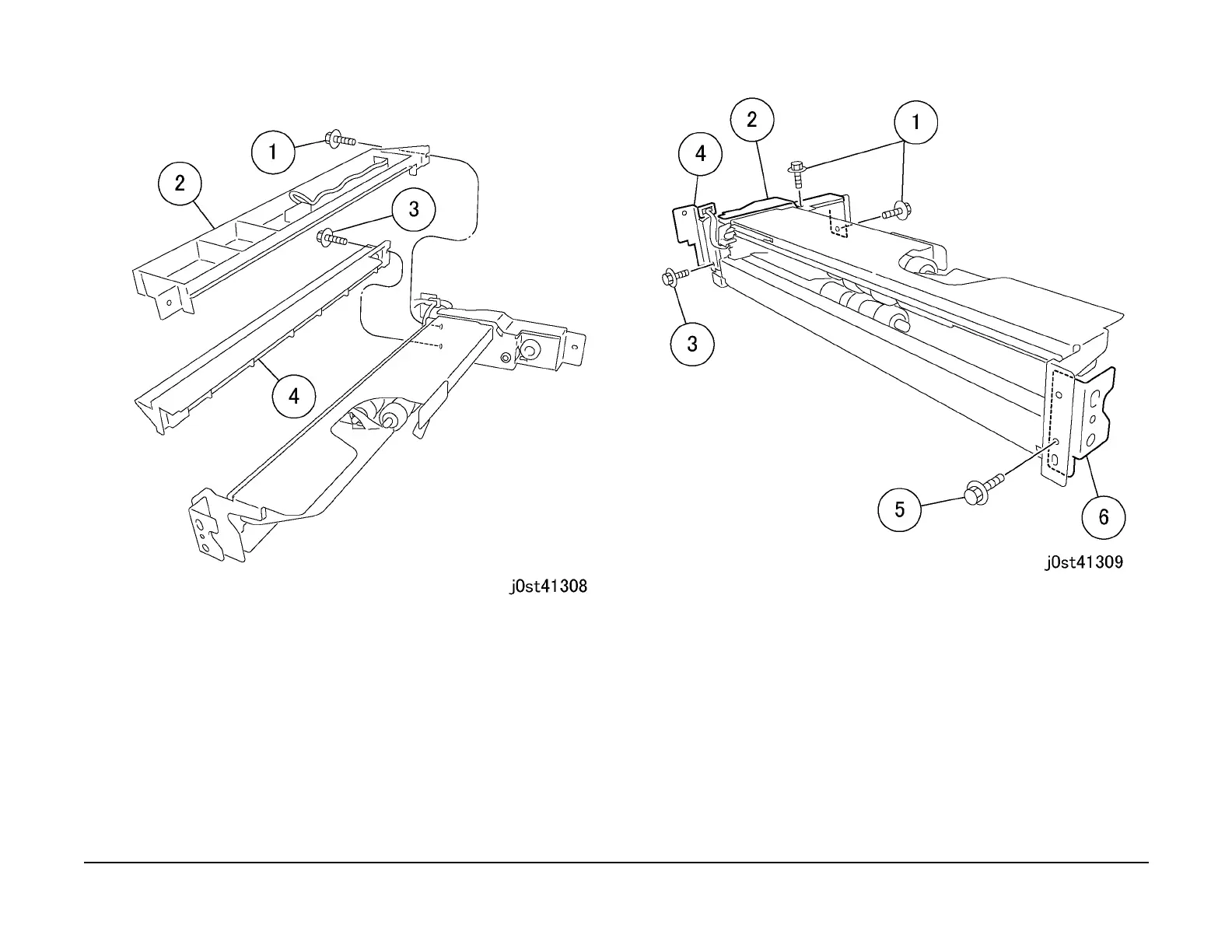

Figure 4 Removing the Lower Chute
7. Remove the Tray 3 Feeder. (Figure 5)
1. Remove the screws (2).
2. Remove the bracket.
3. Remove the screw.
4. Remove the bracket.
5. Remove the screw.
6. Remove the bracket.
Figure 5 Removing the Tray 3 Feeder
Replacement
1. To install, carry out the removal steps in reverse order.
