January 2007
4-126
WorkCentre 7132
REP 15.1.2, REP 15.2.1
Reversion 4.0
Repairs/Adjustments

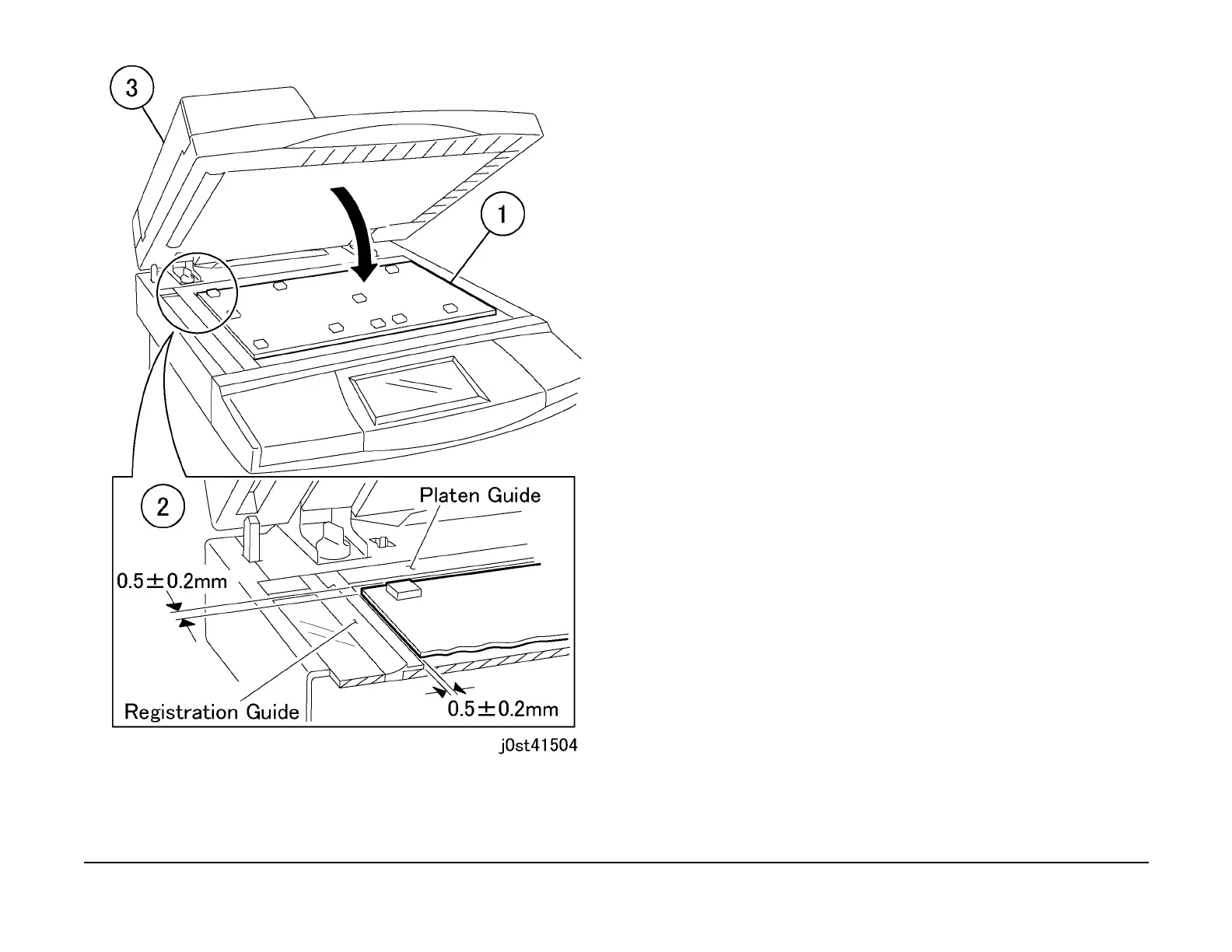

Figure 2 Installing the DADF Platen Cushion
Replacement
1. To install, carry out the removal steps in reverse order.
REP 15.2.1 DADF Document Tray
Parts List on PL 16.2
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
1. Remove the following parts:
• DADF Front Cover (REP 15.2.3)
• DADF Rear Cover (REP 15.2.4)
2. Open the Top Cover.
3. Disconnect the connectors. (Figure 1)
1. Remove the clamp.
2. Disconnect P/J760.
3. Disconnect P/J759.
4. Disconnect the screw (1).
5. Remove the Earth Wire.
6. Unhook the Wire Harness (x2).
To Next Page
