Xerox WorkCentre 7132 Service Documentation

January 2007
5-63
WorkCentre 7132
PL 15.10
Parts-list
Reversion 4.0

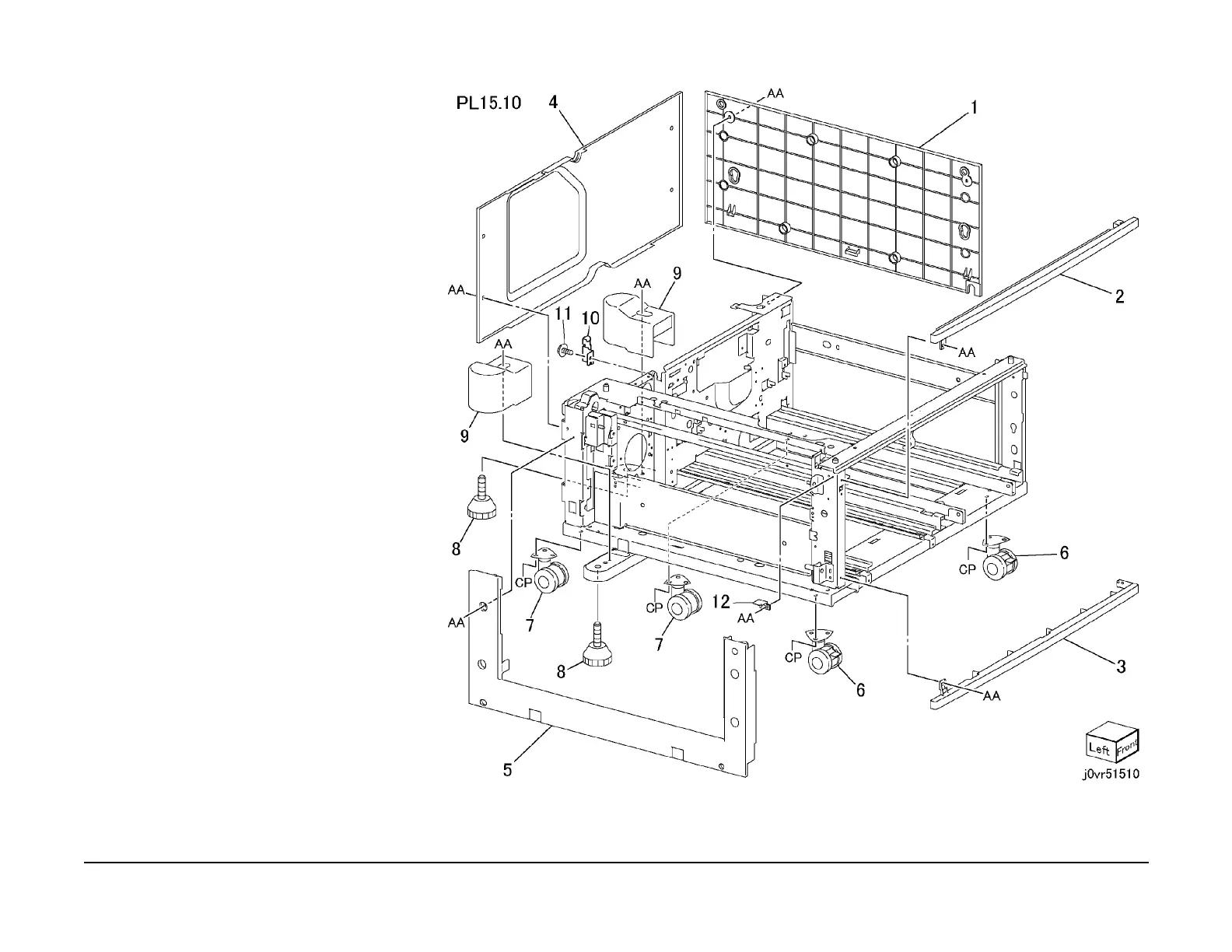

PL 15.10 Cover-TTM
Item Part Description
1 – Right Cover (Not Spared)
2 – Top Cover (Not Spared)
3 – Foot Cover (Not Spared)
4 – Rear Lower Cover (Not Spared)
5 – Left Cover (Not Spared)
6 – Caster (Stopper) (Not Spared)
7 – Caster (Not Spared)
8 – Foot (Not Spared)
9 – Foot Cover (Not Spared)
10 – Docking Bracket (Not Spared)
11 – Screw (Not Spared)
12 – IOT Support Bracket (Not Spared)
