REP 22.4.1
Repairs/Adjustments
Reversion 4.0

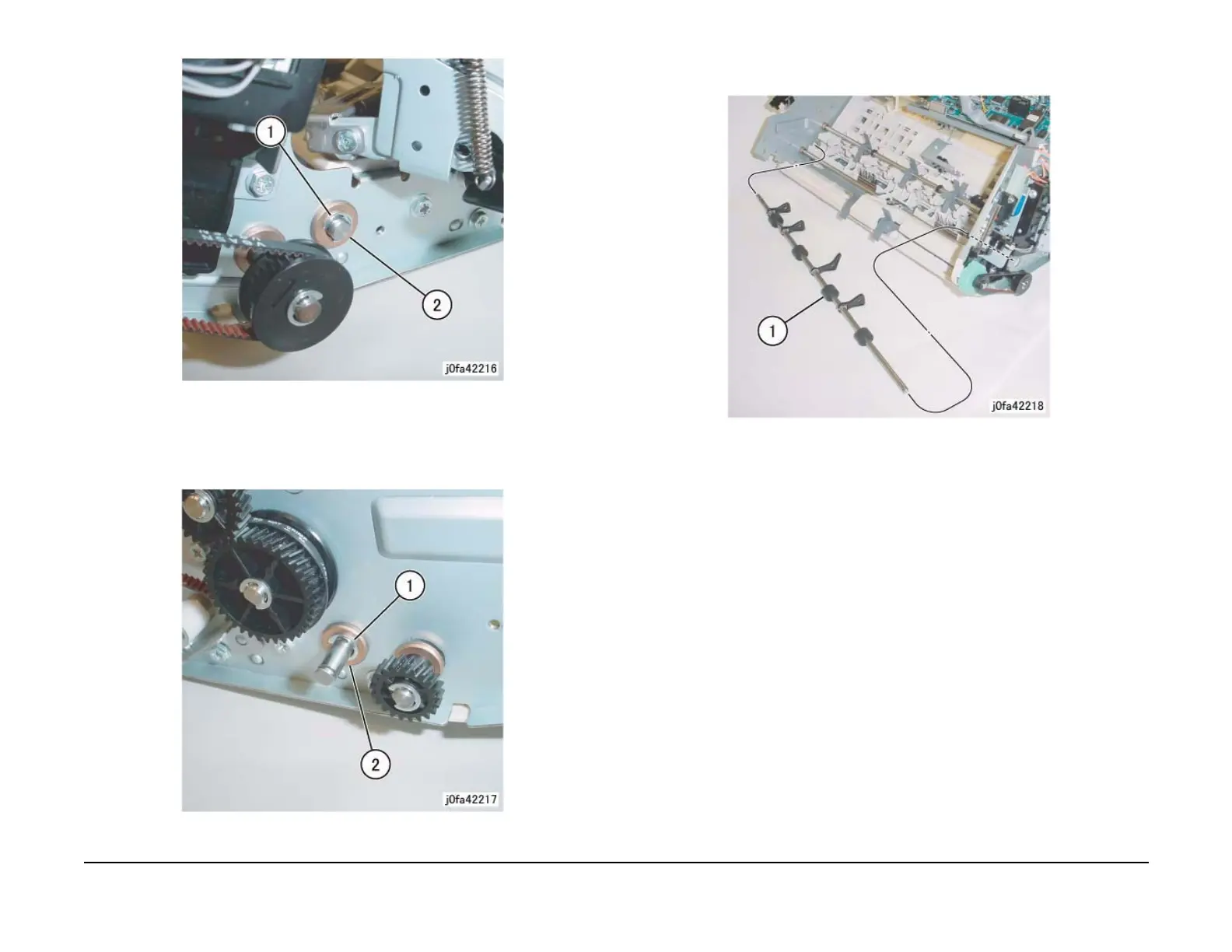

Figure 2 Removing the Bearing (j0fa42216)
6. Remove the rear Bearing. (Figure 3)
(1)Remove E-Clip.
(2)Remove Bearing.
Figure 3 Removing the Bearing (j0fa42217)
7. Remove the Exit Roll Assembly. (Figure 4)
(1)Remove Exit Roll Assembly.
Figure 4 Removing the Exit Roll Assembly (j0fa42218)
Replacement
1. Reverse the removal procedure for replacement.
