January 2007
5-85
WorkCentre 7132
PL 17.12
Parts-list
Reversion 4.0

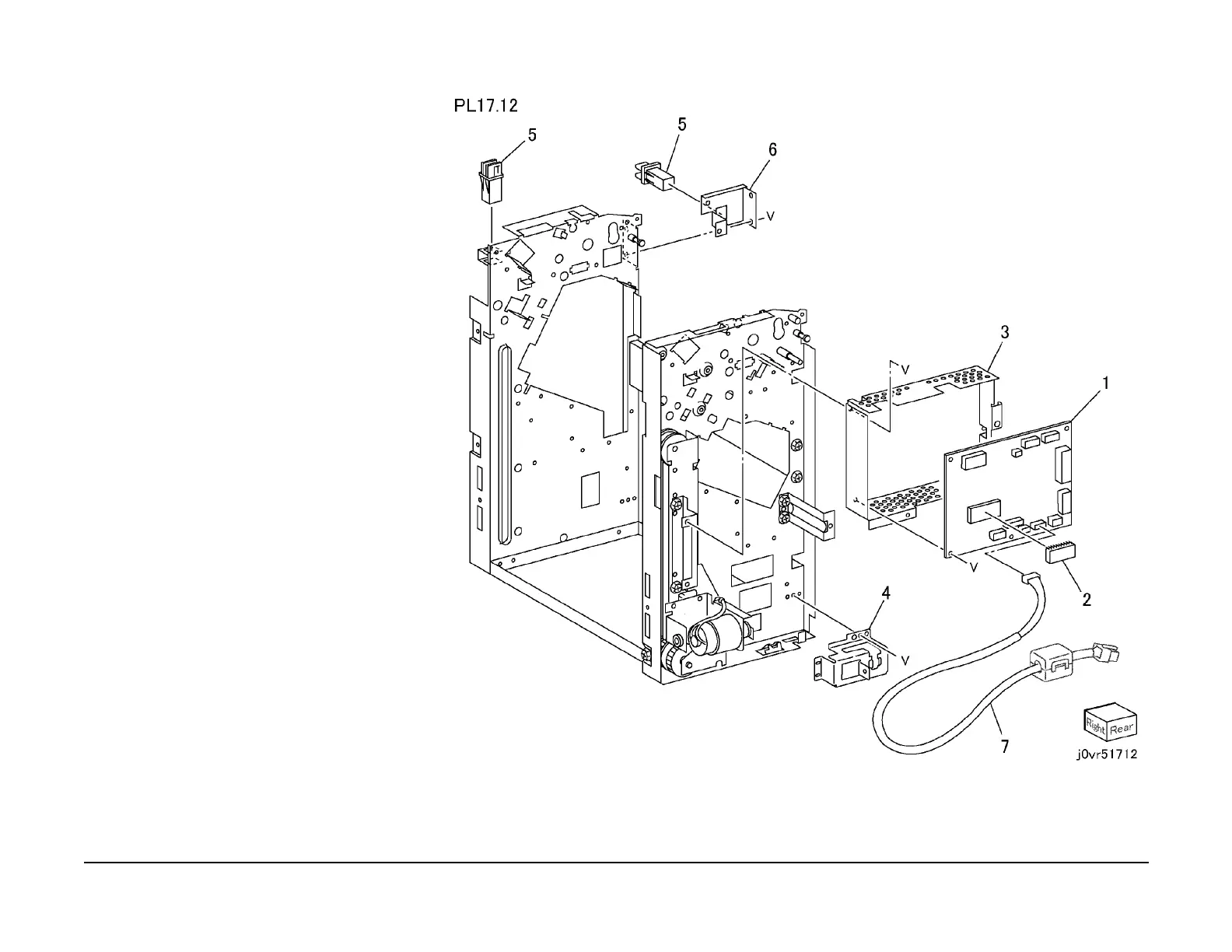

PL 17.12 Electrical
Item Part Description
1 960K15771 Finisher PWB (REP 16.12.1)
2 537K68531 ROM
– 539E02401 Finisher IC Prom
3 – PWB Bracket (Not Spared)
4 – Bracket (Not Spared)
5 110E97990 Top Cover/Front Door Interlock
Switch
6 – Bracket (Not Spared)
7 962K27330 I/F Harness
– 962K45100 I/F Harness
