January 2007
4-79
WorkCentre 7132
REP 11.3.1, REP 11.3.2
Repairs/Adjustments
Reversion 4.0

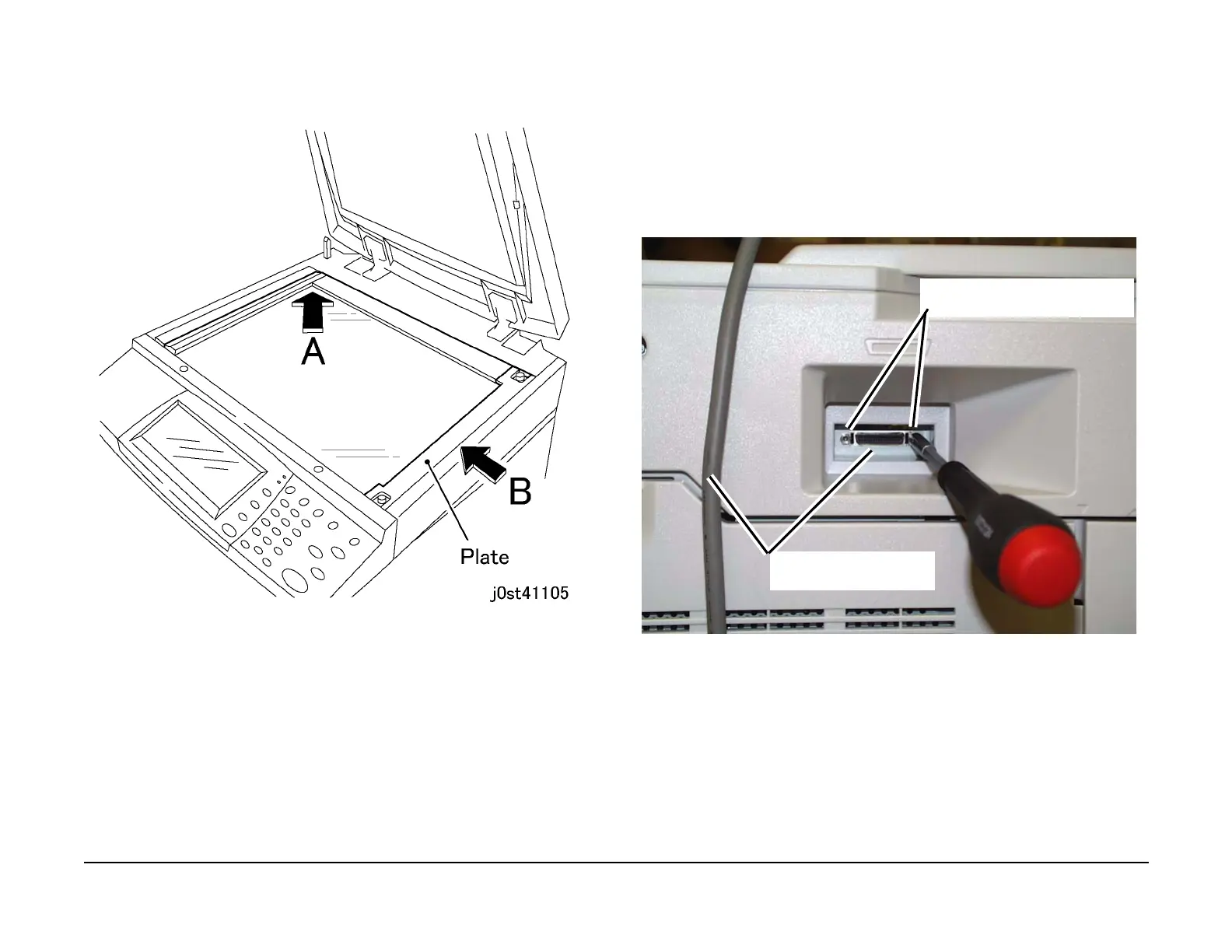

NOTE: To install the Platen Glass, push the Platen Glass in the direction of arrow A and
the plate in the direction of arrow B. (Figure 2)
Figure 2 Installing the Platen Glass
REP 11.3.2 IIT/IPS PWB
Parts List on PL 13.3
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
1. Switch off the power and disconnect the power cord.
2. Remove the Platen Glass (REP 11.3.1)
3. Disconnect the connector and remove the connector screws (2). (Figure 1)
Figure 1 Disconnect the connector and remove the screws (2)
4. Remove the ESS PWB cover and the Top Rear Cover. (Figure 2)
2
Remove the connector screws (2)
1
Disconnect the connector
To Next Page
