Xerox WorkCentre 7132 Service Documentation

January 2007
4-80
WorkCentre 7132
REP 11.3.2
Reversion 4.0
Repairs/Adjustments

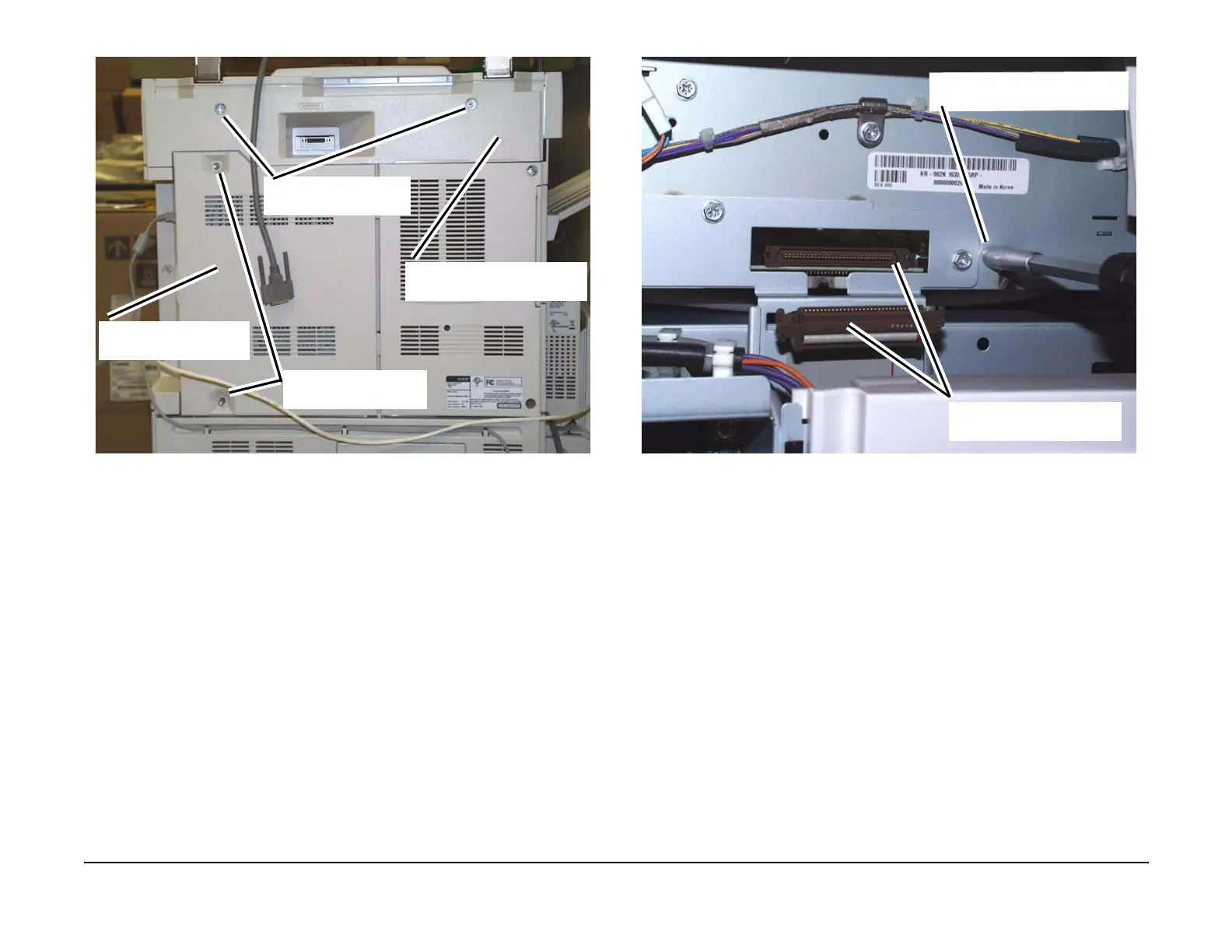

Figure 2 Removing the ESS Cover and the Top Rear Cover
5. Disconnect the connector from the left rear IIT/IPS PWB and remove the screw. (Figure 3)
Figure 3 Disconnect the connector and remove the screw (1)
6. Remove the Lens Cover. (Figure 4)
1
Loosen the screws (2)
2
Remove the ESS Cover
3
Remove the screws (2)
4
Remove the Top Rear Cover
2
Remove the connector screw (1)
1
Disconnect the connector
