Xerox WorkCentre 7132 Service Documentation

January 2007
4-97
WorkCentre 7132
REP 11.6.2
Repairs/Adjustments
Reversion 4.0
REP 11.6.2 Lamp Wire Harness
Parts List on PL 13.6
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
1. Remove the DADF. (REP 15.1.1)
2. Remove the Platen Glass. (REP 11.3.1)

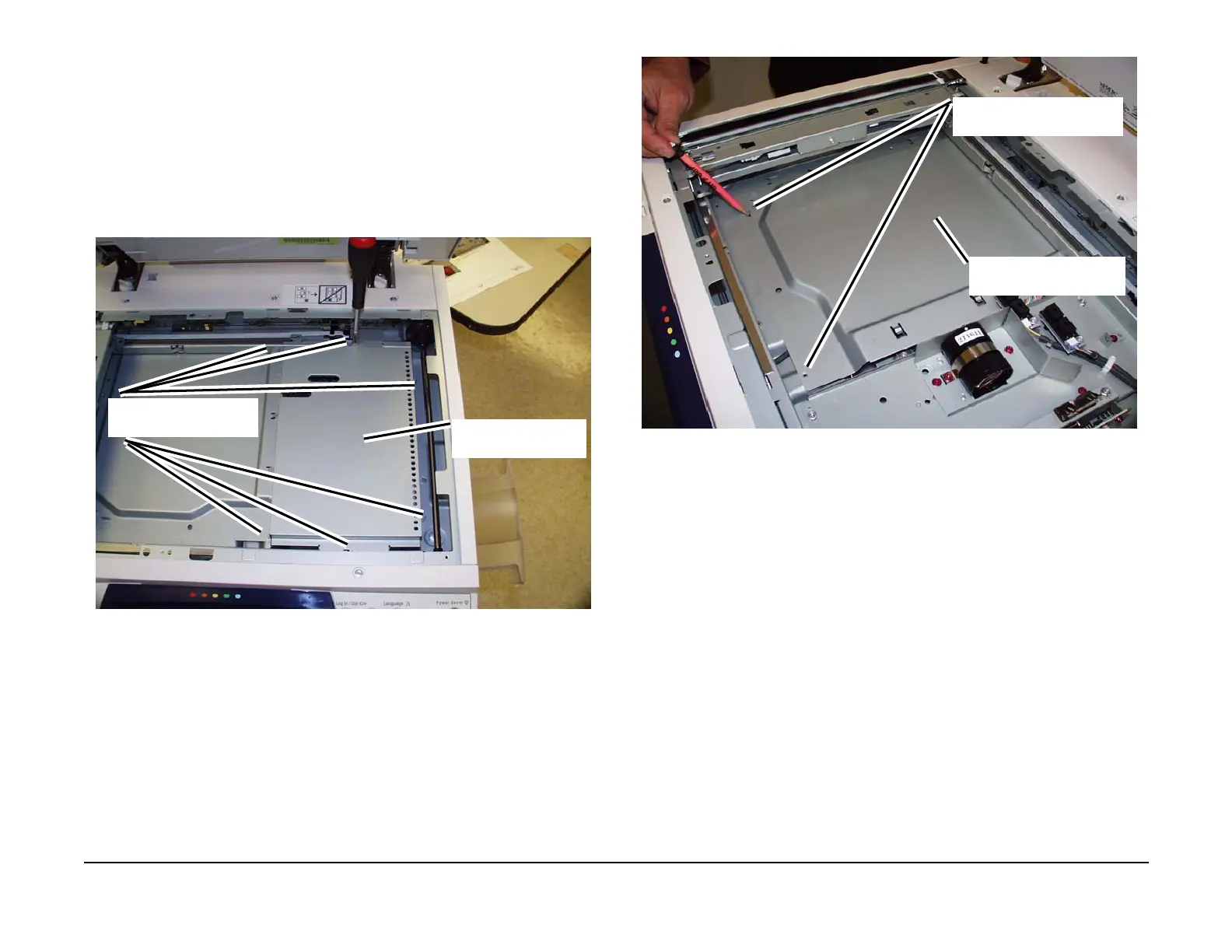

3. Remove the Lens Cover. (Figure 1)
Figure 1 Removing Lens Cover
4. Remove the IPS Cover. (Figure 2)
1. Remove the screws (2).
2. Remove the IPS Cover.
Figure 2 Removing the IPS Cover
5. Disconnect the connector of the Lamp Wire Harness. (Figure 3)
1. Disconnect the connector.
1
Loosen the screws (6)
2
Remove the cover
1
Remove the screws (2)
2
Remove the Cover
