Xerox WorkCentre 7132 Service Documentation

January 2007
4-98
WorkCentre 7132
REP 11.6.2
Reversion 4.0
Repairs/Adjustments

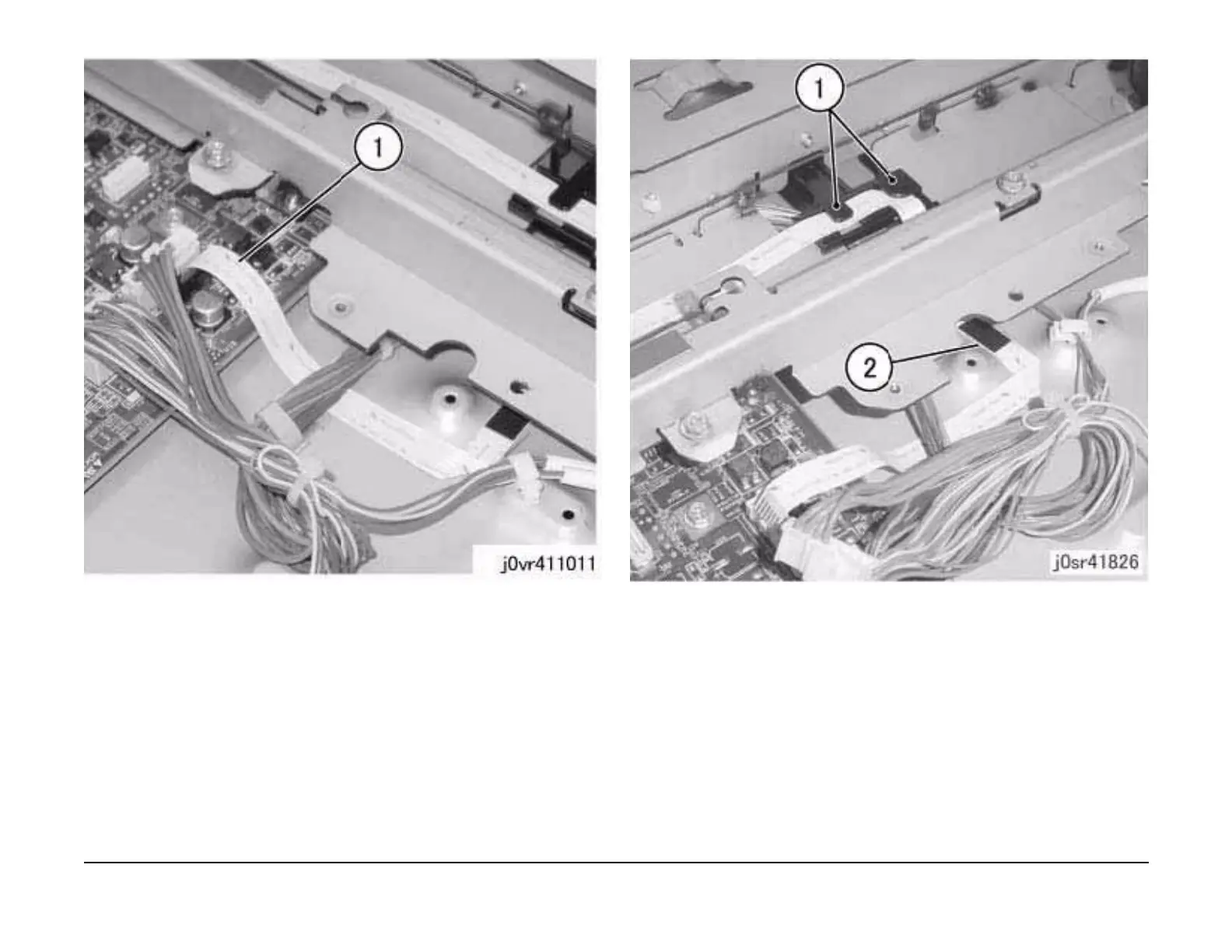

Figure 3 Disconnecting the connector (j0st41125)
6. Release the Lamp Wire Harness from the hook. (Figure 4)
1. Release the Lamp Wire Harness from the hooks.
2. Remove the Harness from the frame opening.
Figure 4 Release the Lamp Wire Harness from the hook
3. Remove the Full Rate Carriage. (Figure 5)
1. Remove the screws (2).
2. Remove the Full Rate Carriage.
