January 2007
4-99
WorkCentre 7132
REP 11.6.2
Repairs/Adjustments
Reversion 4.0

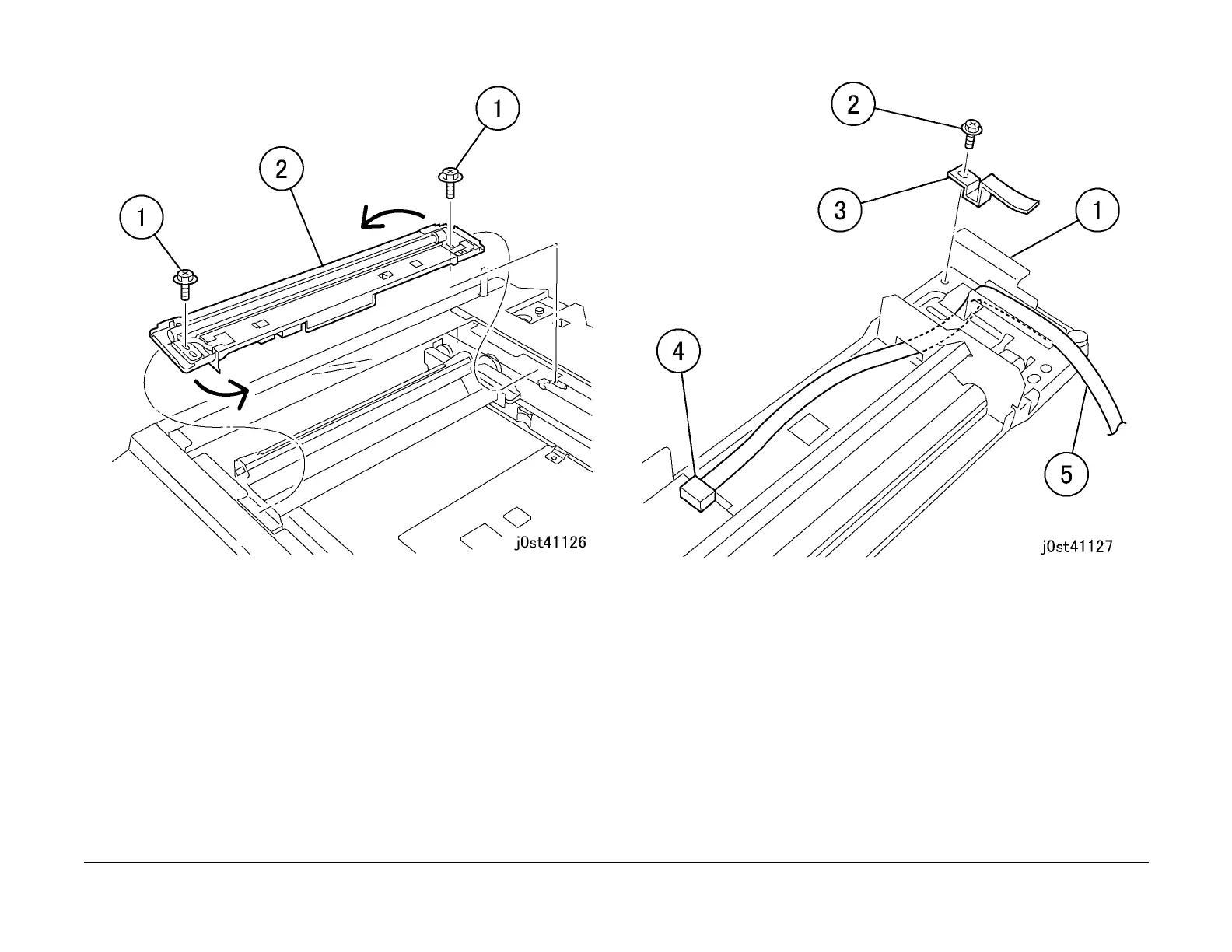

Figure 5 Removing the Full Rate Carriage (j0st41126)
4. Remove the Lamp Wire Harness from the Full Rate Carriage. (Figure 6)
1. Turn over the Full Rate Carriage.
2. Remove the screw.
3. Remove the guide.
4. Disconnect the connector.
5. Remove the Lamp Wire Harness.
Figure 6 Removing the Lamp Wire Harness (j0st41127)
Replacement
1. Install the Lamp Wire Harness by aligning it with the marks as shown in the figure. (Figure
7)
2. To install, carry out the removal steps in reverse order.
NOTE: Adjust the positions of the Full Rate/Half Rate Carriages after installation. (ADJ
11.6.1)
To Next Page
