REP 12.3.1 Feed/Retard/Nudger Roll (2TM)
Parts List on PL 14.4
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
CAUTION
Check that “Ready to Copy” is displayed on the Control Panel display.
NOTE: The Feed, Retard and Nudger Roll must be replaced at the same time.
1. Remove the paper tray for the Feed, Retard and Nudger Roll to be replaced.
a. Pull out tray and remove paper.
b. Ensure tray is pulled out to the stop.
c. Lift end and pull out to remove.
2. Remove the Tray 2/3 Feeder.
• Tray 2 Feeder (REP 12.1.1)
• Tray 3 Feeder (REP 12.1.2)

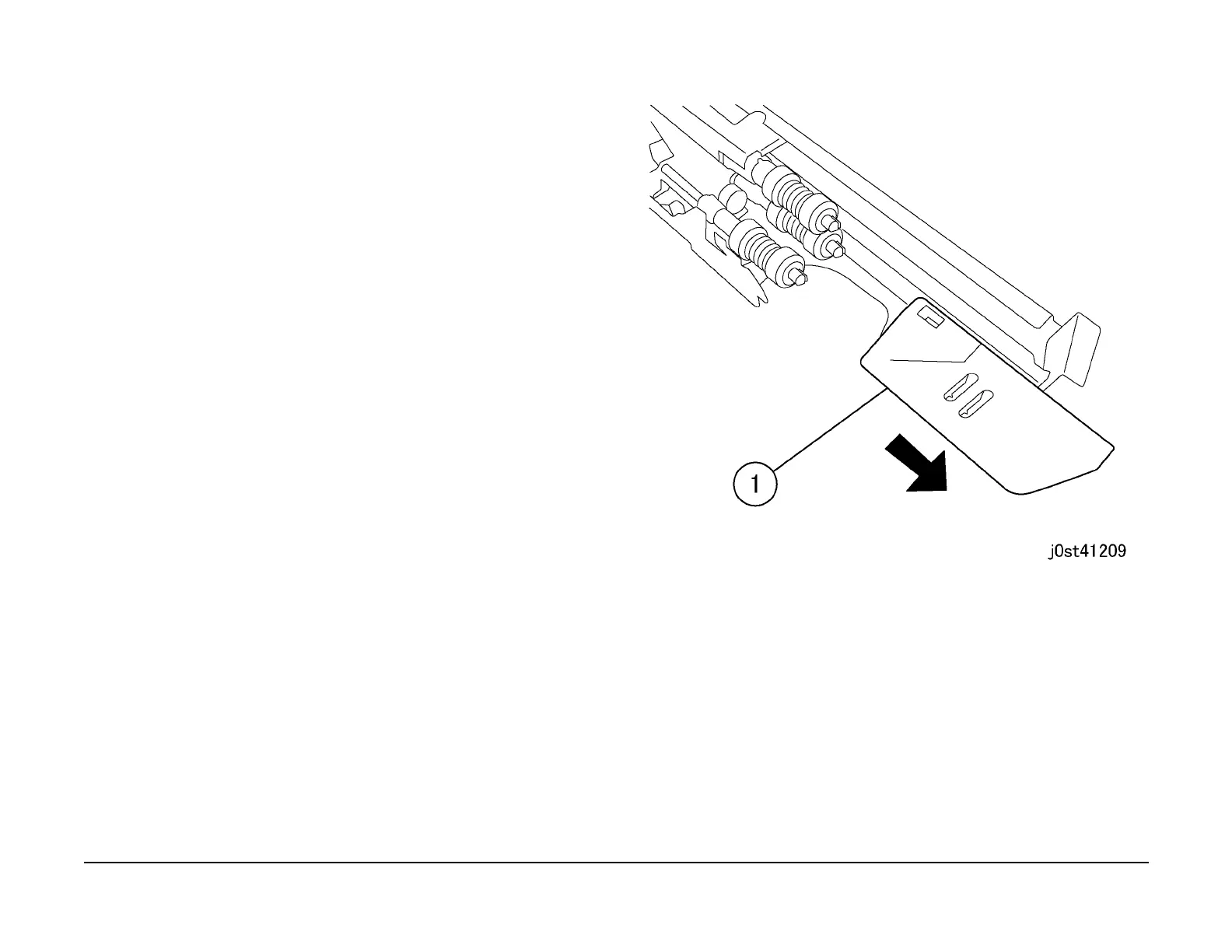

3. Move the Front Chute in the direction of the arrow. (Figure 1)
1. Move the Front Chute.
Figure 1 Moving the Front Chute
4. Remove the Feed/Retard/Nudger Roll. (Figure 2)
1. Release the hooks (3) to remove the Feed/Retard/Nudger Roll.
