Xerox WorkCentre 7132 Service Documentation

January 2007
4-106
WorkCentre 7132
REP 12.1.2
Reversion 4.0
Repairs/Adjustments

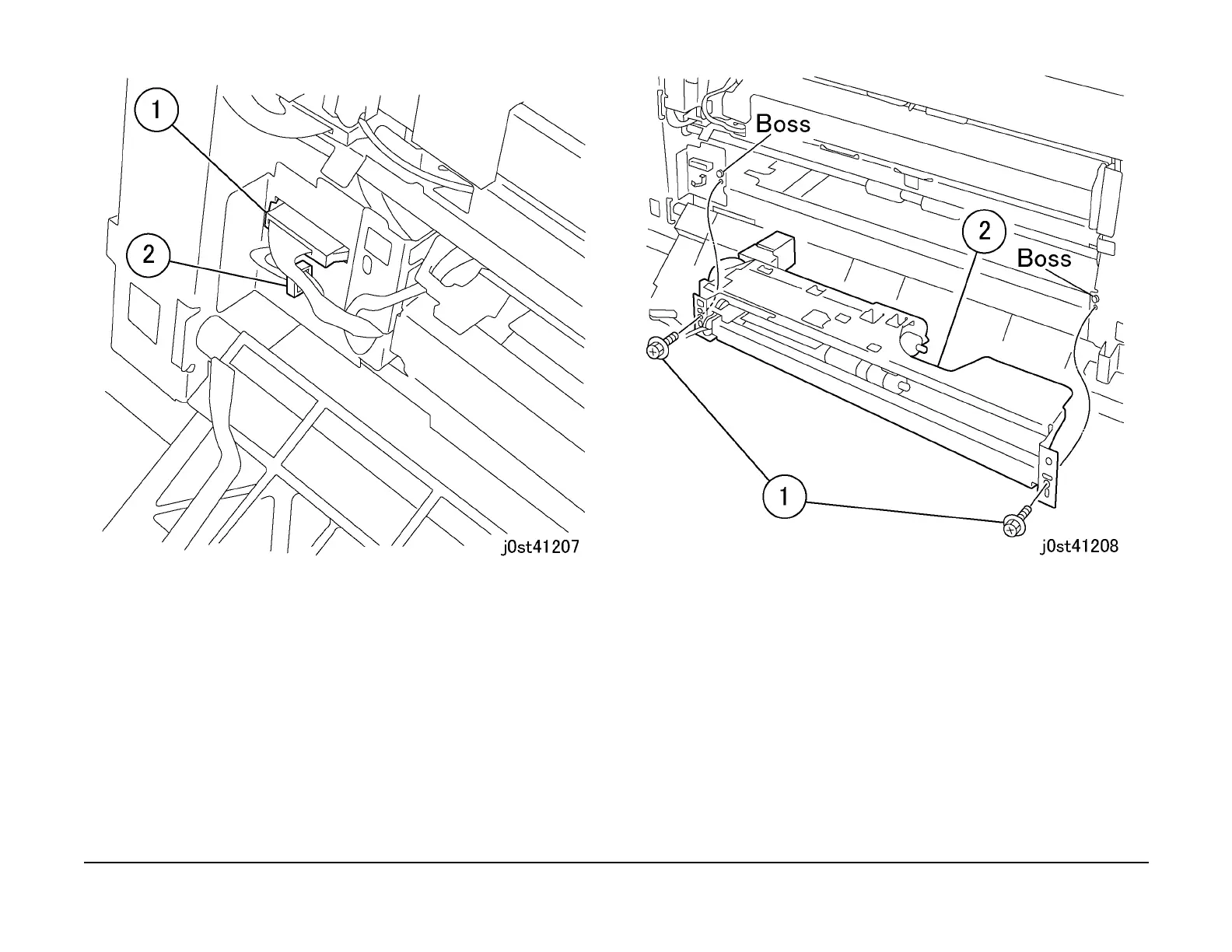

Figure 5 Disconnecting the connector
8. Remove the Tray 3 Feeder. (Figure 6)
1. Remove the screws (2).
2. Remove the Tray 3 Feeder.
Figure 6 Removing the Tray 3 Feeder
Replacement
1. To install, carry out the removal steps in reverse order.
2. When replacing, enter Diag. mode. Clear the counter.
