WorkCentre 7132
REP 12.1.2
Repairs/Adjustments
Reversion 4.0

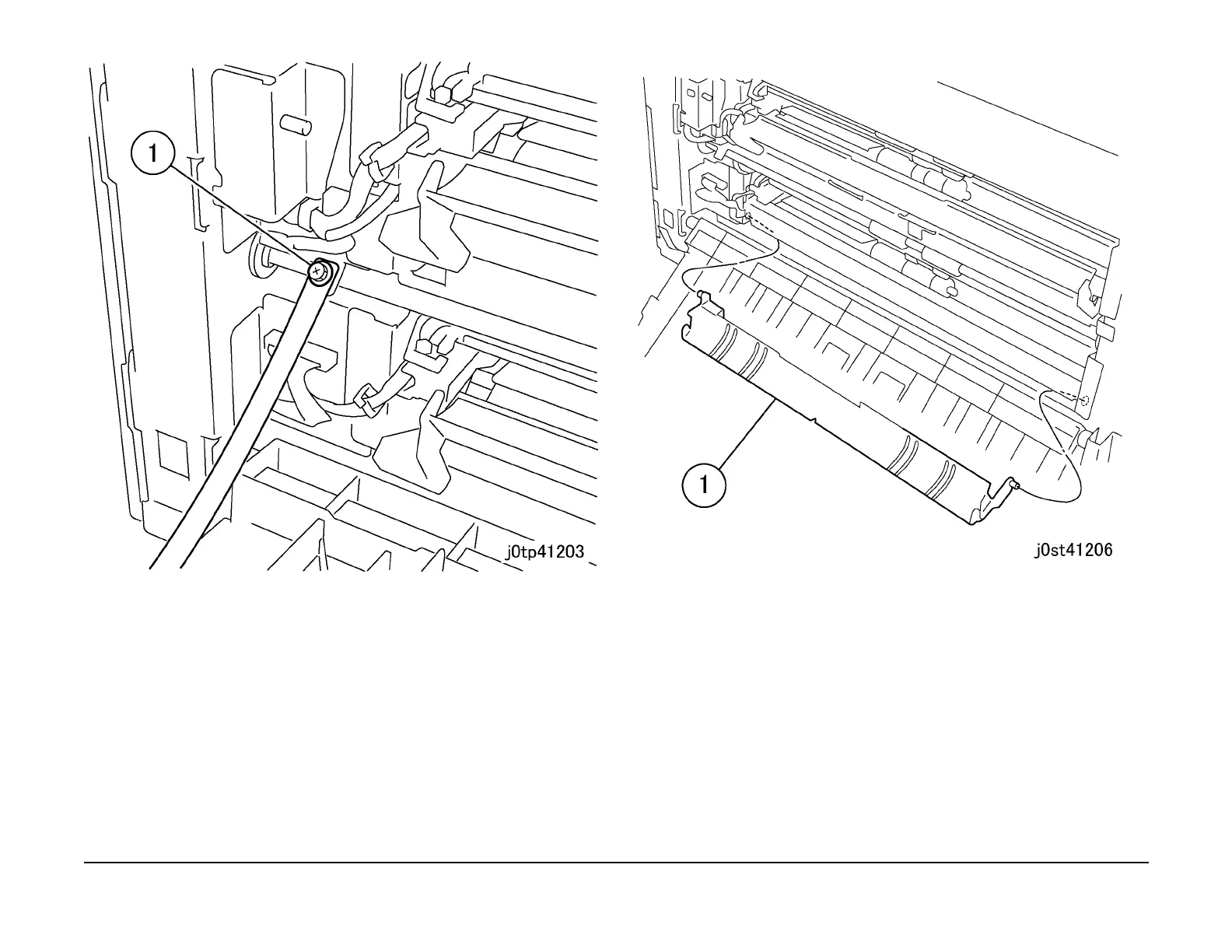

Figure 3 Removing the screws
6. Remove the Feed Out Chute. (Figure 4)
1. Remove the Feed Out Chute.
Figure 4 Removing the Feed Out Chute
7. Disconnect the connector. (Figure 5)
1. Disconnect the connector.
2. Release the clamp to remove the wire.
