January 2007
4-75
WorkCentre 7132
REP 10.2.2, REP 10.2.3
Repairs/Adjustments
Reversion 4.0

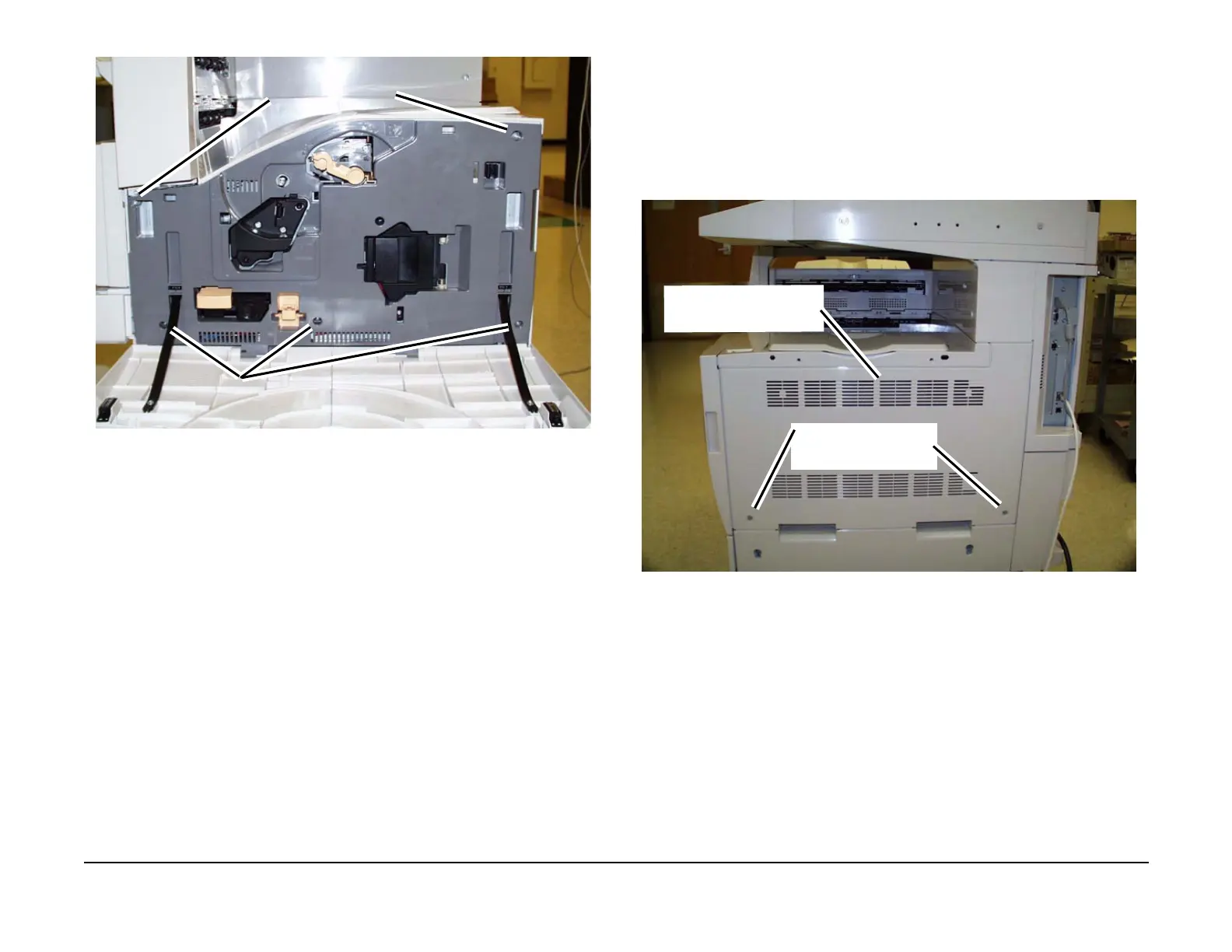

Figure 2 Remove the Front Cover
REP 10.2.3 Right Side Cover
Parts List on PL 12.2
Removal
1. Open the Front Door.
2. Remove the Right Side Cover. (Figure 1)
a. Remove the screws (2).
b. Push down on the Right Side Cover and remove it from the machine.
Figure 1 Removing the Right Side Cover
1
Remove the screws (3)
2
Remove the screws (2)
2
Push down on the cover and
remove
1
Remove the screws (2)
