January 2007
5-95
WorkCentre 7132
PL 22.8
Parts-list
Reversion 4.0

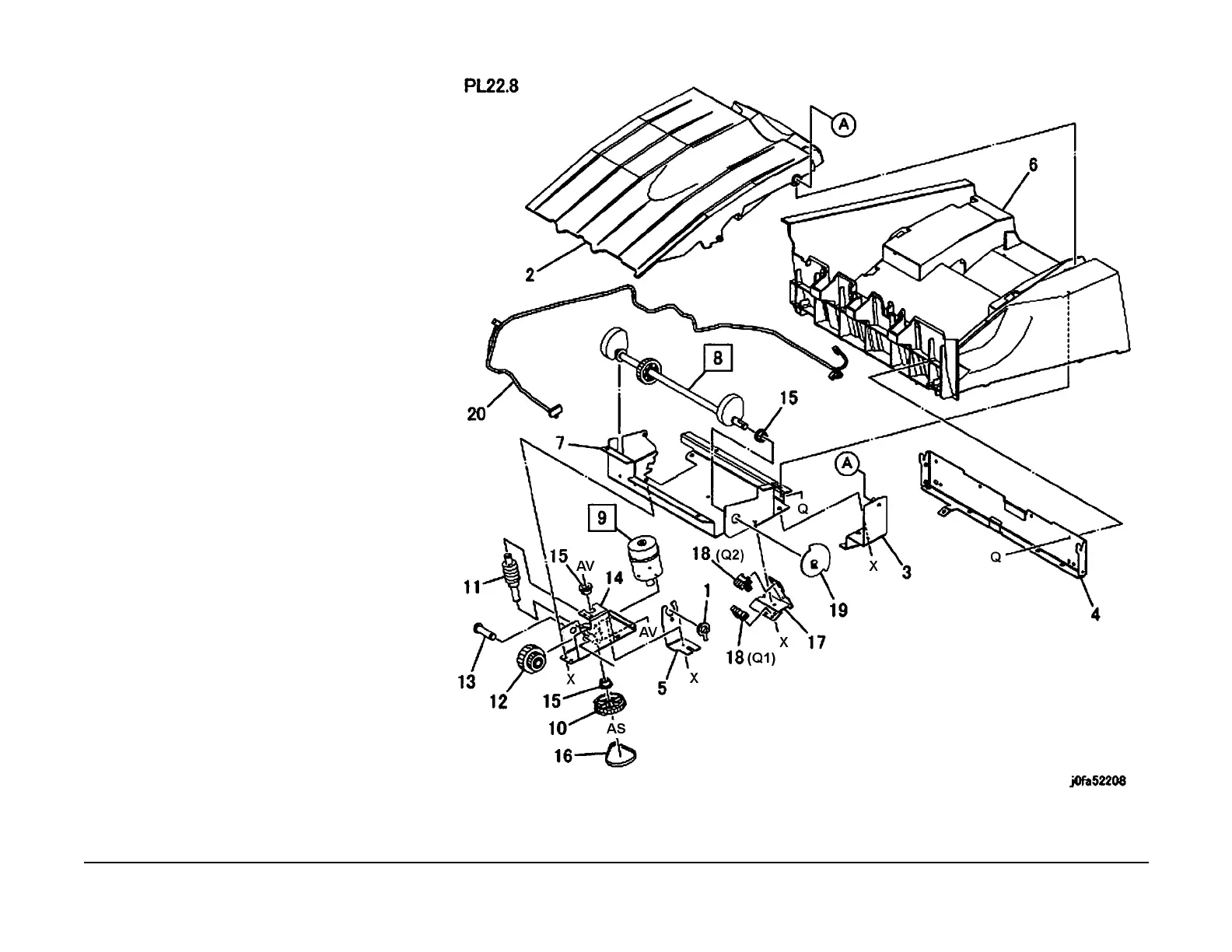

PL 22.8 Stacker Tray Assembly
Item Part Description
1 – Bearing (Not Spared)
2 – Top Tray (Not Spared)
3 – bracket (Not Spared)
4 – Plate (Not Spared)
5 – Bracket (Not Spared)
6 – Base Tray (Not Spared)
7 – Base Bracket (Not Spared)
8 006K25031 Stacker Shaft Assembly (REP
22.8.2)
9 127K49420 Stacker Motor (REP 22.8.3)
10 – Pulley (60) (Not Spared)
11 – Worm Gear (Not Spared)
12 – Gear (16T/32T) (Not Spared)
13 – Stud (Not Spared)
14 – Bracket (Not Spared)
15 – Bearing (Not Spared)
16 423W07354 Belt
17 – Bracket (Not Spared)
18 930W00111 Stacker Stack Sensor 1 (Q1),
Sensor 2 (Q2) (REP 22.8.4)
19 – Actuator (Not Spared)
20 – Wire Harness (Not Spared)
