REP 22.6.2
Reversion 4.0
Repairs/Adjustments

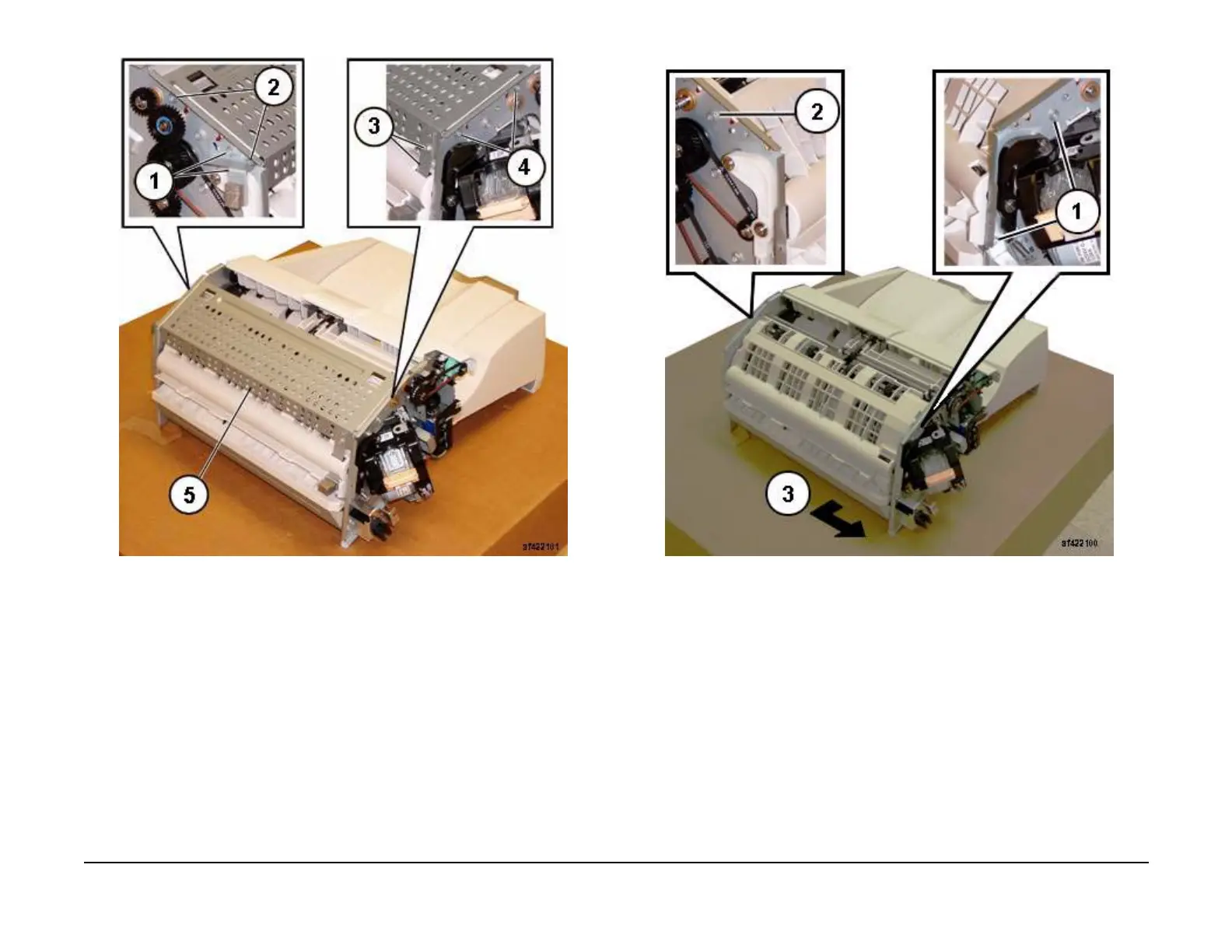

Figure 1 Removing the Upper Frame Section (af422101)
NOTE: The screws do not thread into the Upper Chute. They are used like pins to secure
the Upper Chute in place.
6. Remove the Upper Chute Assembly. (Figure 2)
(1)Remove Screws (2).
(2)Remove Screw.
(3)Carefully Remove the Upper Chute Assembly.
Figure 2 Removing the Upper Chute Assembly (af422100)
Replacement
1. Reverse the removal procedure for replacement.
NOTE: Ensure that the Paper Guides (PL 22.6) are not folded back on top of the Exit Roll
Assembly (PL 22.5).
