January 2007
4-182
WorkCentre 7132
REP 16.10.2, REP 16.11.1
Reversion 4.0
Repairs/Adjustments
4. Remove the Elevator Belt Assembly. (Figure 3)
1. Remove the screws (x3).
2. Remove the Elevator Belt Assembly.

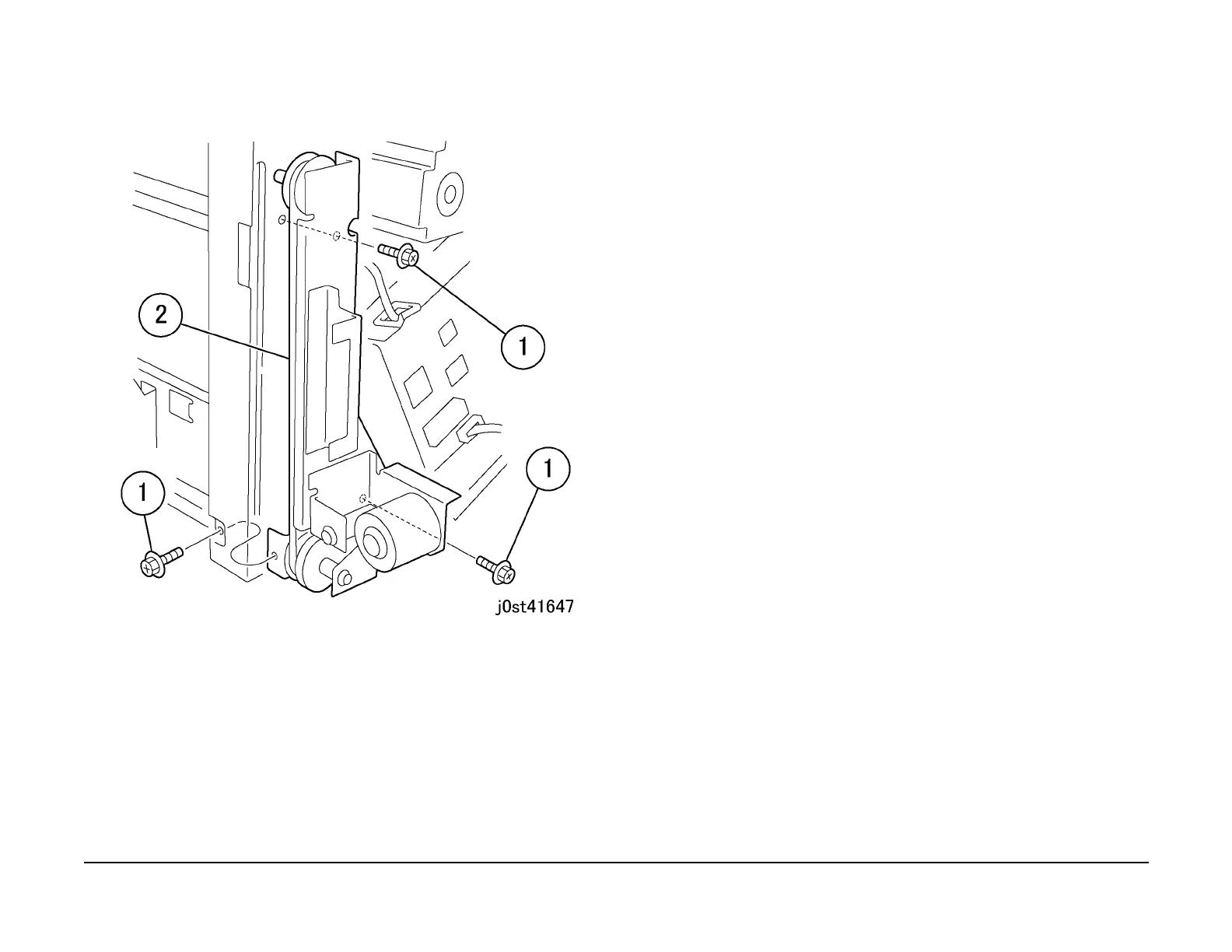

Figure 3 Removing the Elevator Belt Assembly
REP 16.11.1 Paddle Gear Shaft
Parts List on PL 17.11
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
CAUTION
Check that “Ready to Copy” is displayed on the Control Panel display.
1. Remove the Rear Cover. (REP 16.4.1)
2. Remove the Cam Bracket Assembly. (Perform REP 16.7.1 up to Step 4.)
3. Remove the bearing. (Figure 1)
1. Remove the E-Clip.
2. Remove the gear.
3. Remove the bearing.
To Next Page
