Xerox WorkCentre 7132 Service Documentation

January 2007
5-69
WorkCentre 7132
PL 16.6
Parts-list
Reversion 4.0

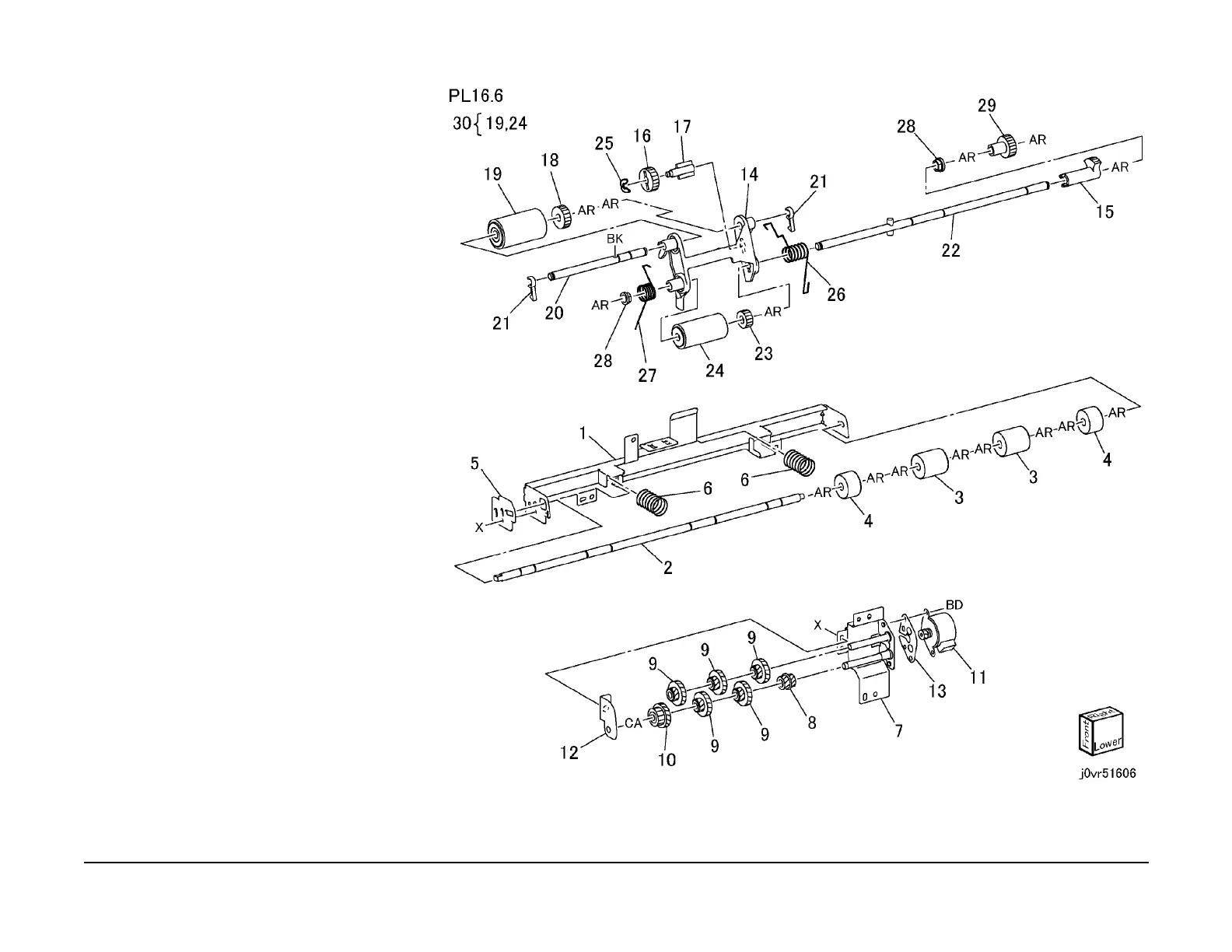

PL 16.6 Takeaway Pinch Roll, Nudger
Motor, Nudger/Feed Roll
Item Part Description
1 – Bracket (P/O PL 16.5 Item 6)
2 – Shaft (Takeaway Pinch Roll) (P/O
PL 16.5 Item 6)
3 – Roll (P/O PL 16.5 Item 6)
4 – Roll (P/O PL 16.5 Item 6)
5 – Bracket (P/O PL 16.5 Item 6)
6 – Spring (P/O PL 16.5 Item 6)
7 – Bracket (P/O PL 16.5 Item 7)
8 – Gear (18T/19T) (P/O PL 16.5 Item
7)
9 – Gear (36T/19T) (P/O PL 16.5 Item
7)
10 – Gear (36T/16T) (P/O PL 16.5 Item
7)
11 – Lift Motor (P/O PL 16.5 Item 7)
12 – Lift Bracket (P/O PL 16.5 Item 7)
13 – Motor Bracket (P/O PL 16.5 Item 7)
14 – Nudger Housing (P/O PL 16.5 Item
12)
15 – Gear (28T) (P/O PL 16.5 Item 12)
16 – Idler Gear (36T) (P/O PL 16.5 Item
12)
17 – Nudger Shaft (P/O PL 16.5 Item 12)
18 – Nudger Gear (34T) (P/O PL 16.5
Item 12)
19 – Nudger Roll (P/O PL 16.6 Item 30)
(REP 15.6.1)
20 – Nudger Shaft (P/O PL 16.5 Item 12)
21 – Set Stopper (P/O PL 16.5 Item 12)
22 – Feed Shaft (P/O PL 16.5 Item 12)
23 807E00550 Feed Gear (26T)
24 – Feed Roll (P/O PL 16.6 Item 30)
(REP 15.6.1)
25 – C-Clip (P/O PL 16.5 Item 12)
26 – Rear Nudger/Feed Spring (P/O PL
16.5 Item 12)
27 – Front Nudger/Feed Spring (P/O PL
16.5 Item 12)
28 – Bearing (P/O PL 16.5 Item 12)
29 007K88751 Feed Gear (20T)
30 604K20760 DADF Roll Kit
(Feeder/Nudger/Retard)
