January 2007
5-12
WorkCentre 7132
PL 2.4
Reversion 4.0
Parts-list

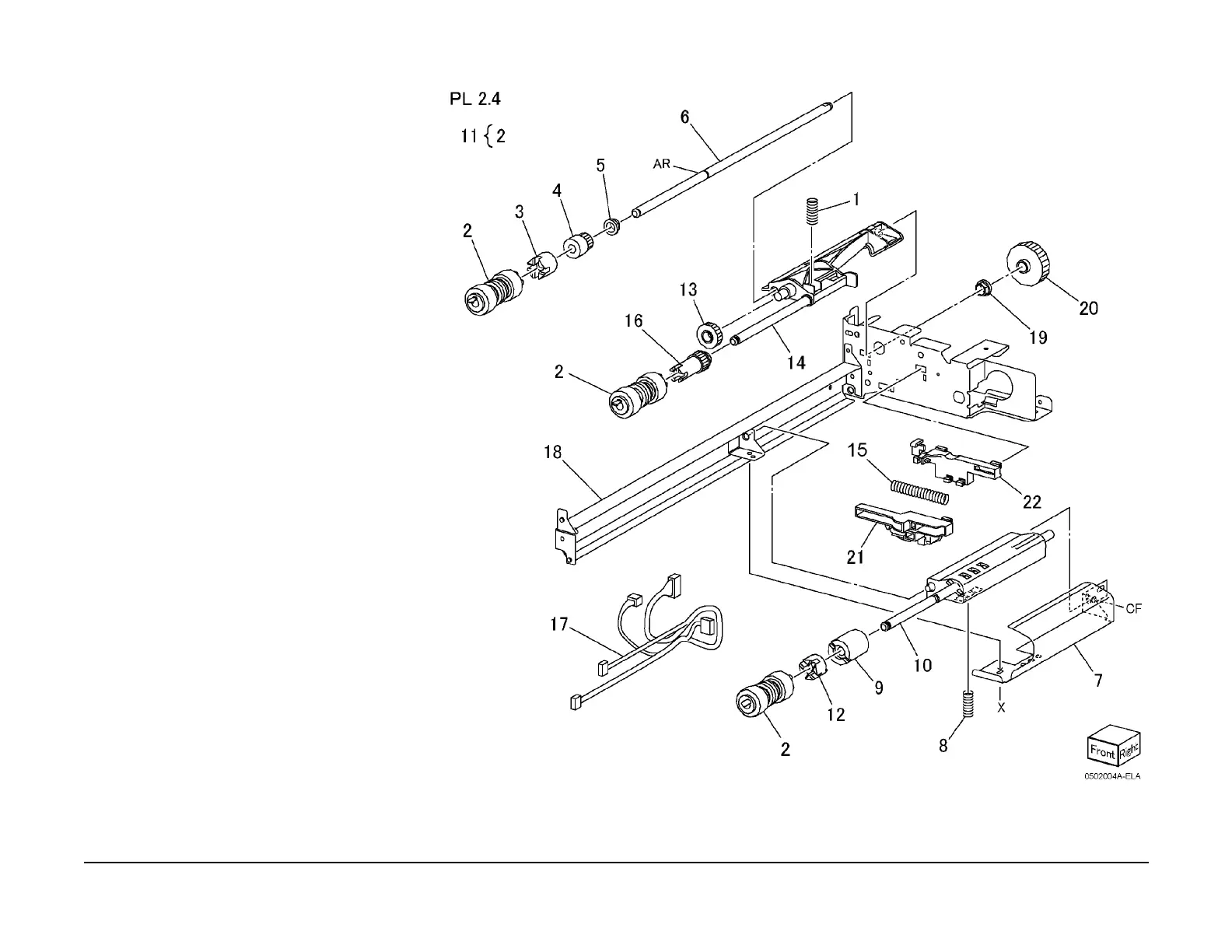

PL 2.4 Feeder 1 Assembly (2 of 2)
Item Part Description
1 – Spring (Not Spared)
2 – Feed Roll, Nudger Roll, Prefeed
Roll (Not Spared) (REP 2.3.1)
3 005K05890 Clutch
4 005K06760 Clutch (22T)
5 – Bearing (Not Spared)
6 – Feed Shaft (Not Spared)
7 054E23170 Feed In Chute
8 – Retension Spring (Not Spared)
9 005K07010 Friction Clutch
10 – Retard Support (Not Spared)
11 – Feed Roll Tray Kit (Not Spared)
12 – Spacer (Not Spared)
13 – Gear (13) (Not Spared)
14 – Support Nudger (Not Spared)
15 – Spring (Not Spared)
16 – Gear (25) (Not Spared)
17 962K18912 Feed Harness
18 – Rear Frame (Not Spared)
19 – Bearing Sleeve (Not Spared)
20 – Gear (34) (Not Spared)
21 – Lever (Not Spared)
22 – Holder (Not Spared)
