January 2007
5-77
WorkCentre 7132

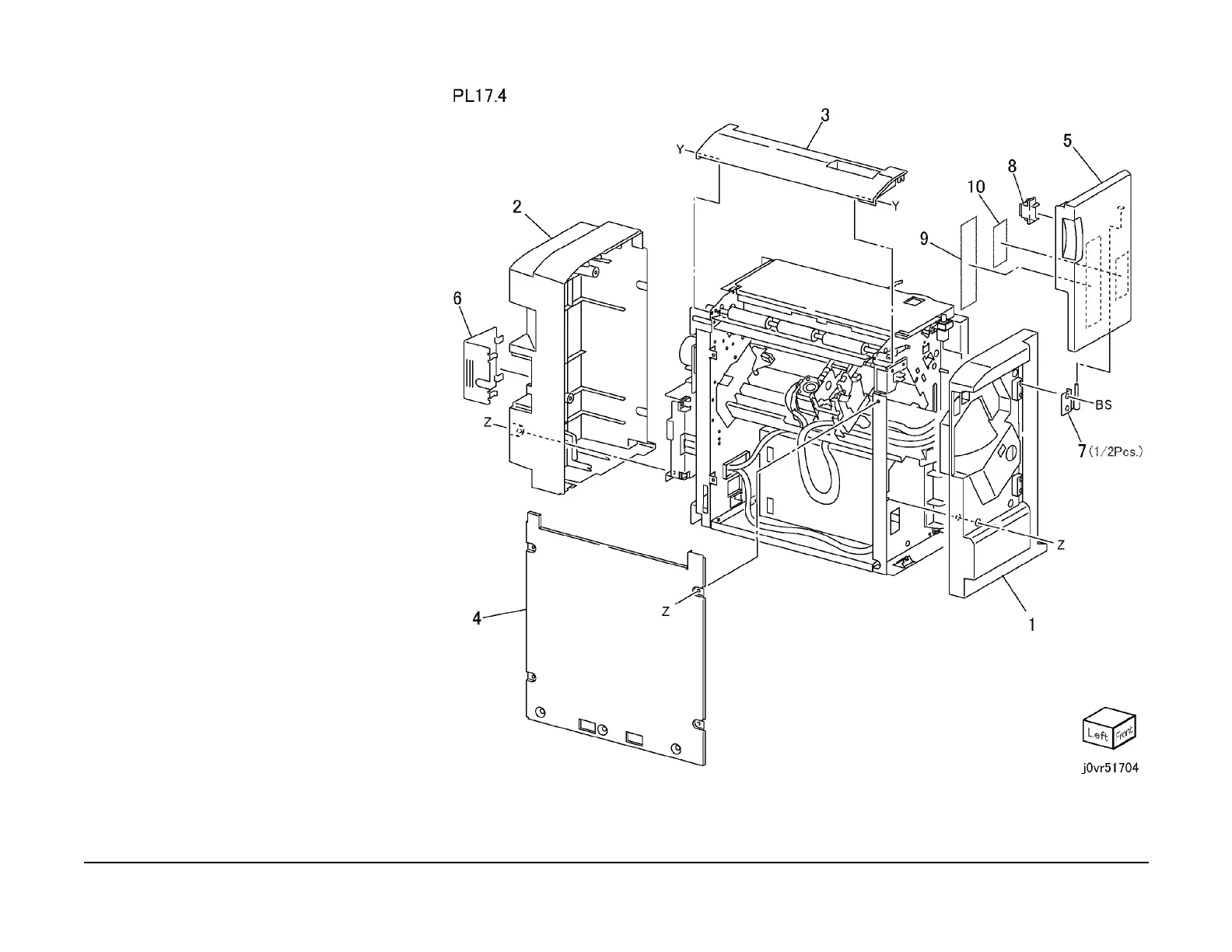

PL 17.4
Parts-list
Reversion 4.0
PL 17.4 Cover
Item Part Description
1 802E28560 Front Cover (REP 16.4.1)
2 – Rear Cover (Not Spared) (REP
16.4.2)
3 – Top Cover (Not Spared)
4 – Left Cover (Not Spared)
5 802E28550 Front Door
6 – Left Panel (Not Spared)
7 – Hinge (Not Spared)
8 – Magnet (Not Spared)
9 – Label (Not Spared)
10 – Label (Not Spared)
