Xerox WorkCentre 7132 Service Documentation

January 2007
4-212
WorkCentre 7132
REP 22.6.1
Reversion 4.0
Repairs/Adjustments

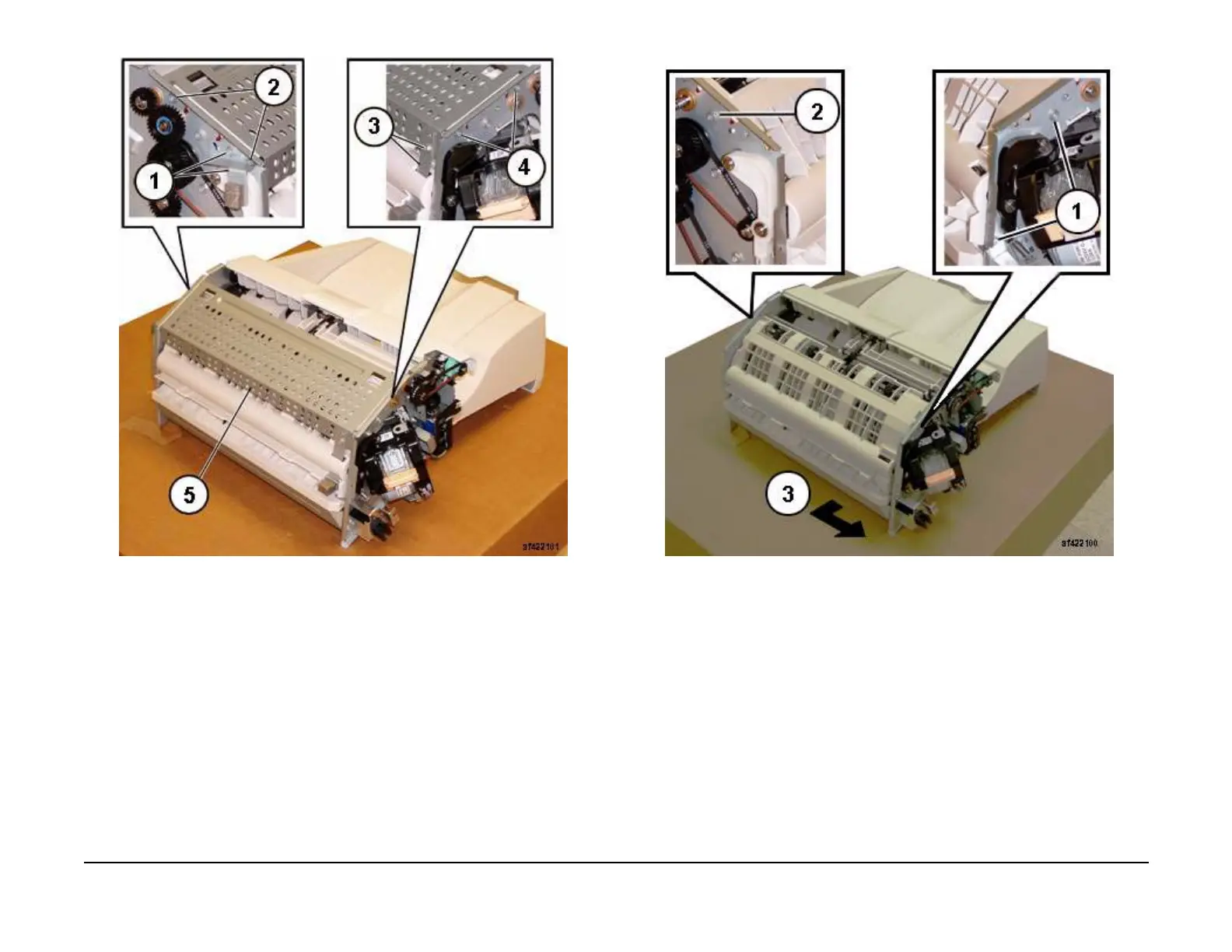

Figure 1 Removing the Upper Frame Section (af422101)
NOTE: The screws do not thread into the Upper Chute. They are used like pins to secure
the Upper Chute in place.
6. Remove the Upper Chute Assembly. (Figure 2)
(1)Remove Screws (2).
(2)Remove Screw.
(3)Carefully Remove the Upper Chute Assembly.
Figure 2 Removing the Upper Chute Assembly (af422100)
7. Remove the ENT Roll Assembly. (Figure 3)
(1)Disconnect Spring.
(2)Remove E-Rings (2).
NOTE: Capture the Bearing
(3)Remove Arm.
(4)Slide Shaft out of the Bearing in the Arm.
