January 2007
5-14
WorkCentre 7132
PL 2.6
Reversion 4.0
Parts-list

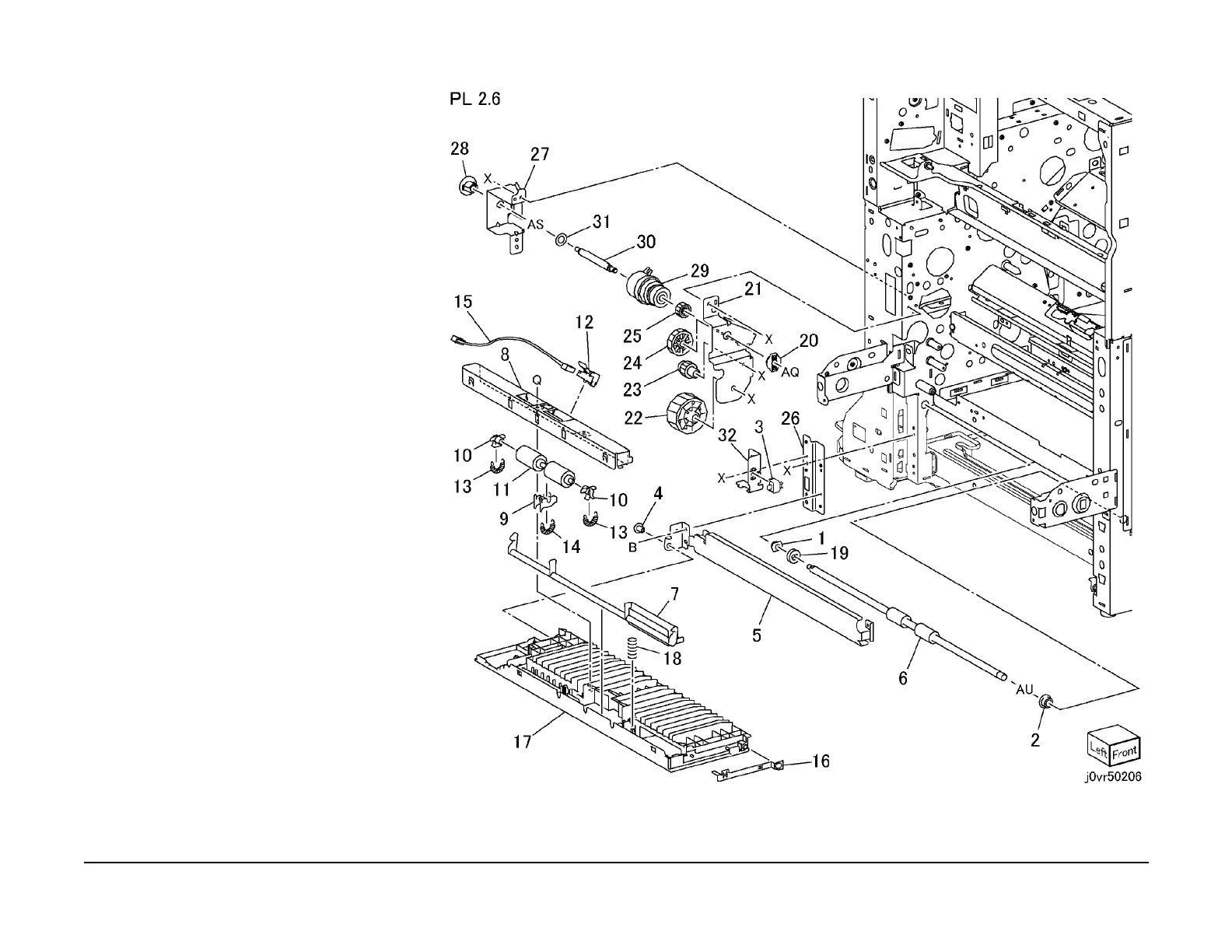

PL 2.6 Vertical Transport Cover
Item Part Description
1 013E29830 Bearing
2 413W77559 Bearing
3 110E11580 Lower L/H Cover Interlock
4 – Left Low Rivet (Not Spared)
5 – Lower Chute (Not Spared)
6 – Tray 1 Takeaway Roll (Not Spared)
(REP 2.5.1)
7 – Left Low Handle (Not Spared)
8 – Left Low Bracket (Not Spared)
9 – Bearing In (Not Spared)
10 – Bearing Out (Not Spared)
11 059E98371 Takeaway Pinch Roller
12 130K64261 Tray 1 TA Sensor
13 – Left Low Spring (Not Spared)
14 – Spring-In (Not Spared)
15 962K23460 Transport Sensor Harness
16 – Earth Plate (Not Spared)
17 802E55701 Left Low Back Cover
18 – Spring (Not Spared)
19 – Gear (18T) (Not Spared)
20 013E26091 Bearing
21 815E27180 Idler Bracket
22 807E14650 Idler Gear (54T)
23 807E14640 Idler Gear (21T)
24 807E14630 Idler Gear (37T)
25 – Gear (19T) (Not Spared)
26 – Bracket (Not Spared)
27 – Transport Bracket (Not Spared)
28 013E26060 Bearing
29 121K37120 Takeaway Clutch
30 – Transport Shaft (Not Spared)
31 – Washer (Not Spared)
32 – Switch Bracket (Not Spared)
