Xerox WorkCentre 7132 Service Documentation

January 2007
4-135
WorkCentre 7132
REP 15.3.3, REP 15.4.1
Repairs/Adjustments
Reversion 4.0

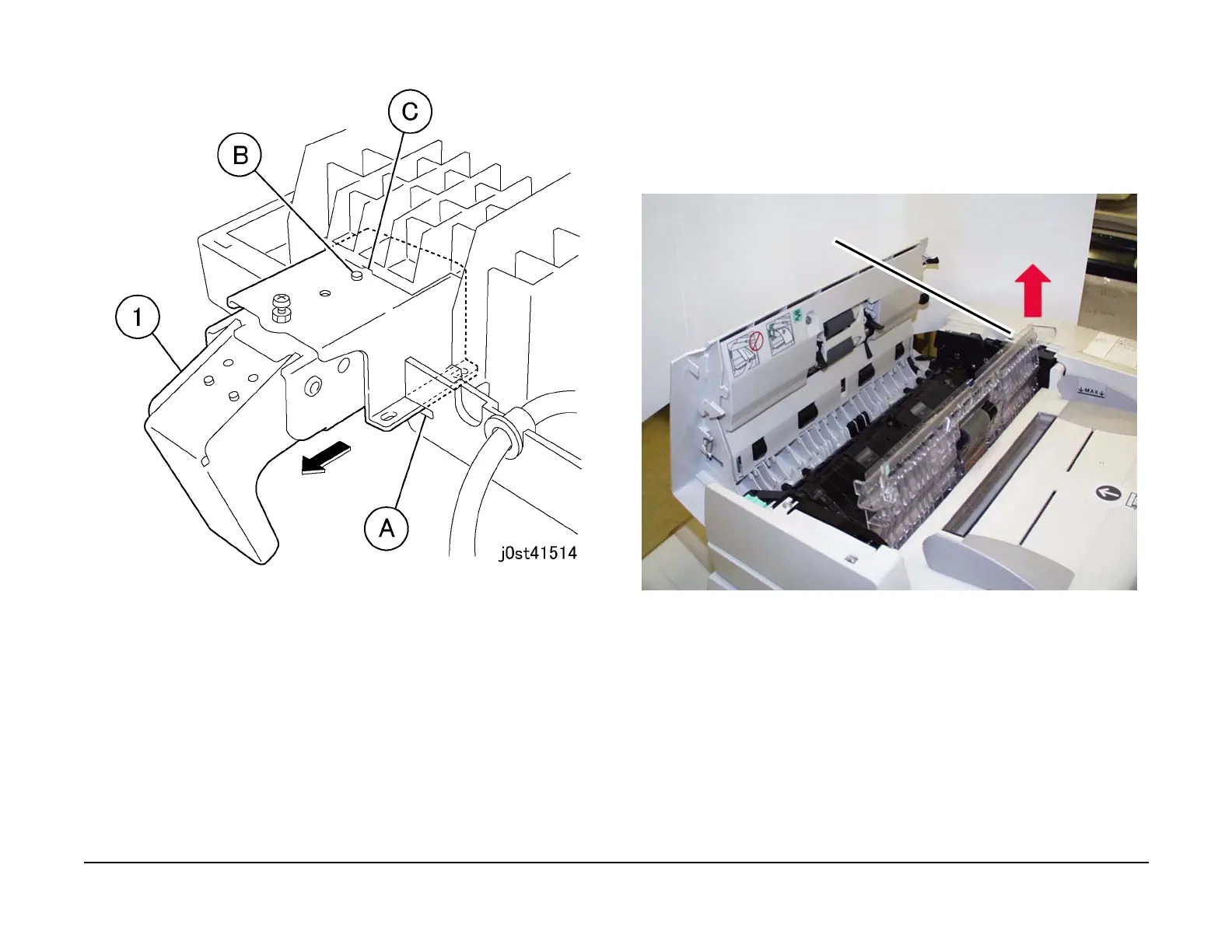

Figure 2 Removing the Right Counter Balance
Replacement
1. Check DADF (ADJ 15.1.6).
REP 15.4.1 Retard Roll
Parts List on PL 16.4
Removal
NOTE: The Feed, Retard and Nudger Roll must be replaced at the same time.
1. Open the Top Cover Assembly.
2. Remove the Retard Roll chute. (Figure 1)
Figure 1 Removing the Retard Roll chute.
3. Remove the Retard Roll Bracket and spring. (Figure 2)
1
Lift up the inboard end
and remove the chute
