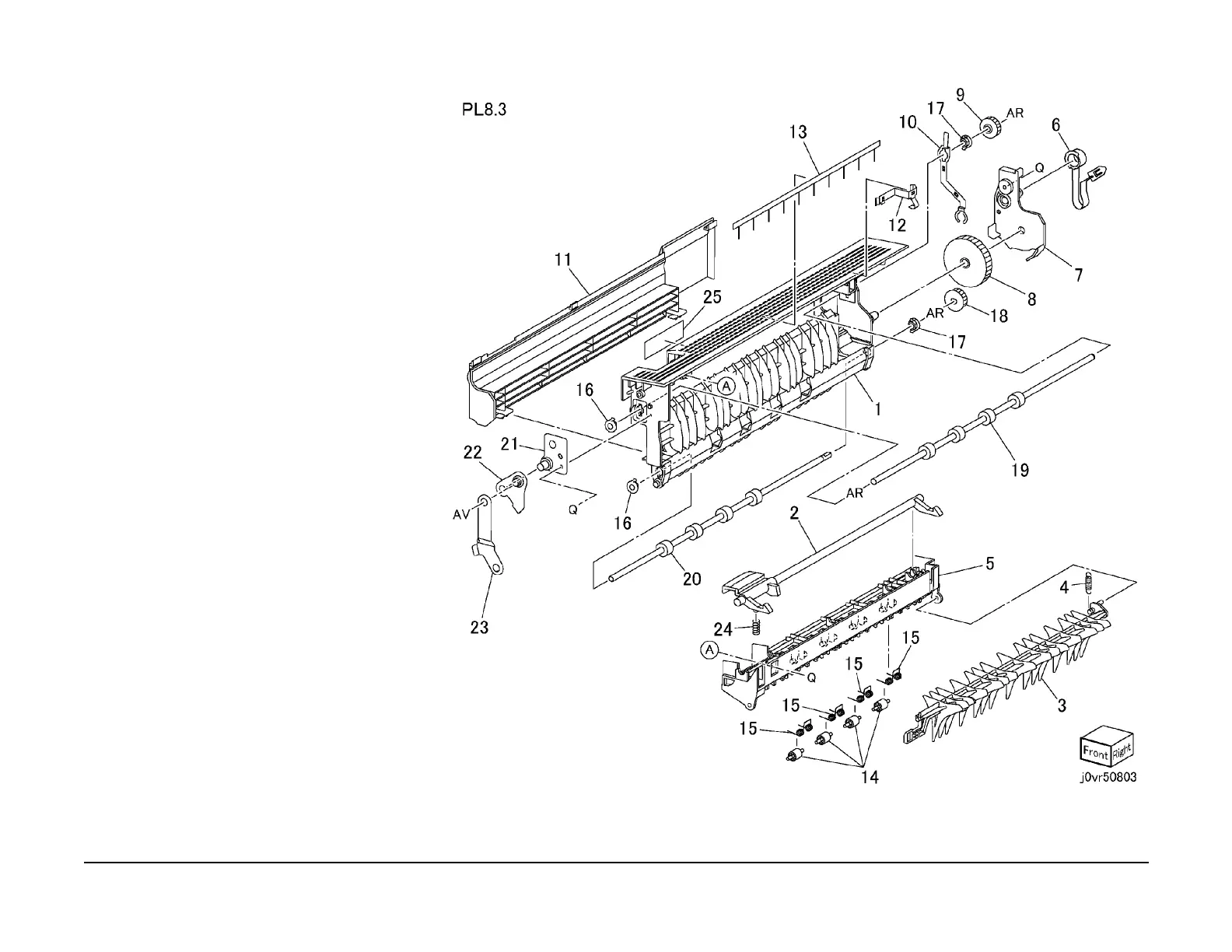

PL 8.3 L/H Upper Chute Assembly
(Exit 2)
Item Part Description
1 – L/H Upper Chute (P/O PL 8.1 Item
2)
2 003E60160 Latch
3 050E20010 Exit 2 Gate
4 – Gate 2 Spring (P/O PL 8.1 Item 2)
5 – Upper Chute (P/O PL 8.1 Item 2)
6 – Exit 2 Stopper (P/O PL 8.1 Item 2)
7 – Gear Cover (P/O PL 8.1 Item 2)
8 – Gear (49Z) (P/O PL 8.1 Item 2)
9 – Gear (22Z) (P/O PL 8.1 Item 2)
10 – Earth Plate (P/O PL 8.1 Item 2)
11 – Face Up Exit Cover (P/O PL 8.1
Item 2)
12 – Earth Plate (P/O PL 8.1 Item 2)
13 – Exit Eliminator (P/O PL 8.1 Item 2)
14 – Pinch Roller (P/O PL 8.1 Item 2)
15 – Pinch Spring (P/O PL 8.1 Item 2)
16 – Bearing (P/O PL 8.1 Item 2)
17 013E25550 Roller Bearing
18 – Gear (22Z) (P/O PL 8.1 Item 2)
19 059K43190 Roller
20 059K31010 Roller
21 – Tray Bracket (P/O PL 8.1 Item 2)
22 – Link Bracket (P/O PL 8.1 Item 2)
23 – Link (P/O PL 8.1 Item 2)
24 – Latch Spring (P/O PL 8.1 Item 2)
25 – Label (Height) (P/O PL 8.1 Item 2)
