January 2007
5-89
WorkCentre 7132
PL 22.2
Parts-list
Reversion 4.0

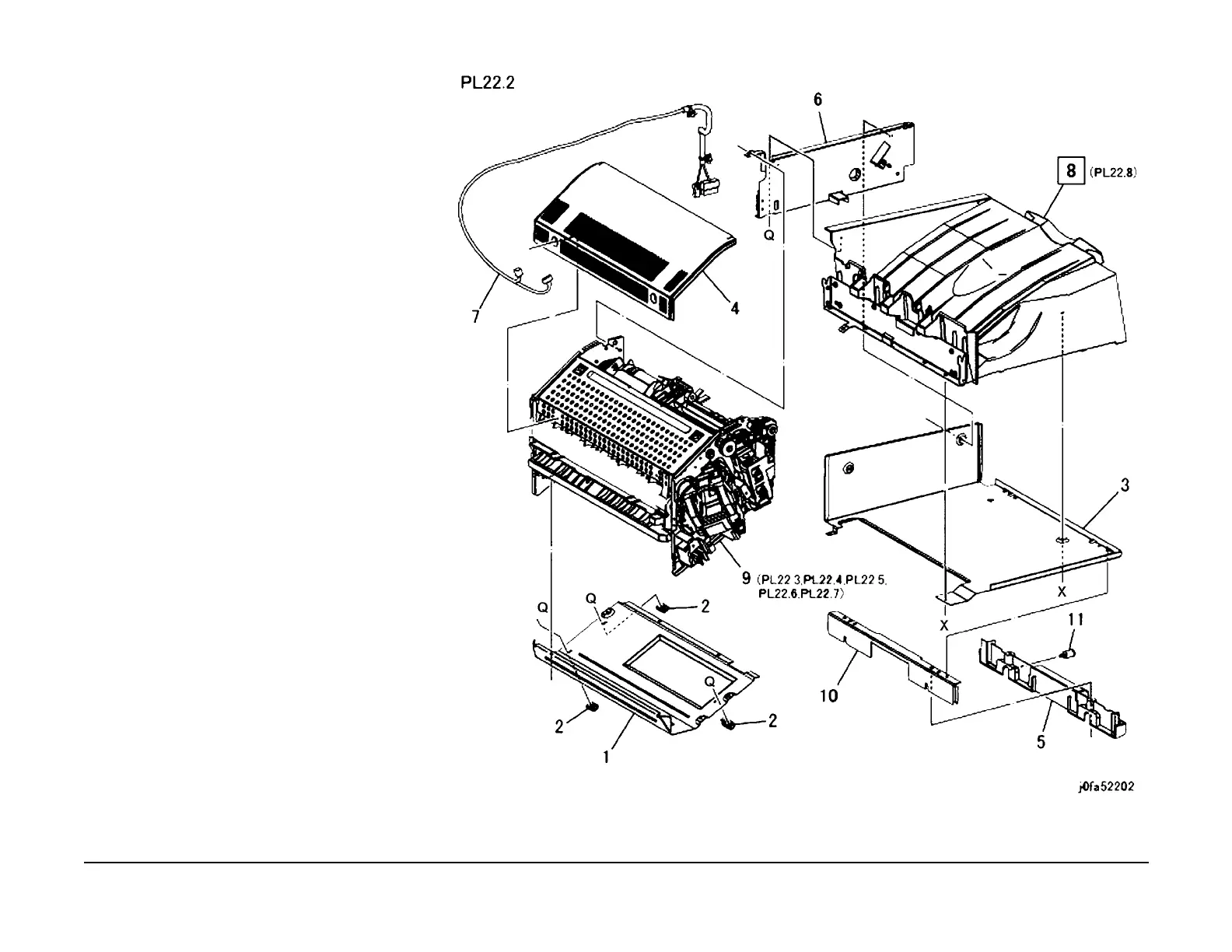

PL 22.2 Finisher Assembly (Part 2 of
2)
Item Part Description
1 – Bottom Cover (Not Spared)
2 – Spacer (Not Spared)
3 – Tray Cover (Not Spared)
4 802E95582 Left Cover
5 – Support (Not Spared)
6 – Rear Bracket (Not Spared)
7 962K42291 Wire Harness
8 050K55890 Stacker Tray Assembly (REP
22.8.1)
9 – Stacker Base Assembly (Not
Spared)
10 – Bracket (Not Spared)
11 – Screw (Not Spared)
