Xerox WorkCentre 7132 Service Documentation

January 2007
5-55
WorkCentre 7132
PL 15.2
Parts-list
Reversion 4.0

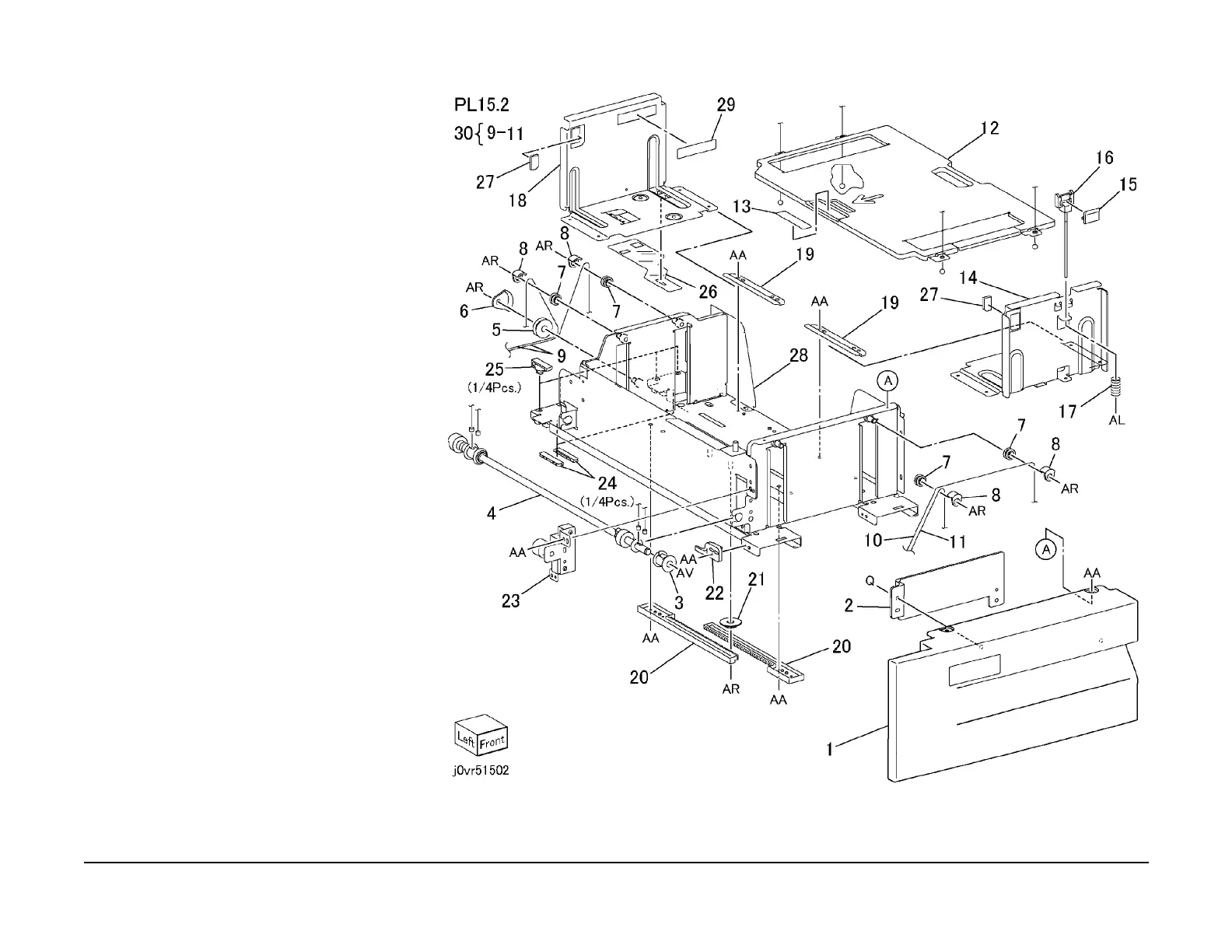

PL 15.2 Tray 2 Assembly-TTM
Item Part Description
1 – Left Tray Cover (P/O PL 15.1 Item
1)
2 – Handle Tray (P/O PL 15.1 Item 1)
3 020E36821 Pulley Cable
4 006K23014 Lift Shaft
5 020E36560 Pulley
6 032E20890 Cable Guide
7 604K20730 Pulley
8 604K20740 Cable Guide
9 – Left Rear Cable (P/O PL 15.2 Item
30) (REP 13.3.1)
10 – Left Front Cable (P/O PL 15.2 Item
30) (REP 13.3.1)
11 – Left Cable (P/O PL 15.2 Item 30)
12 – Bottom Plate (P/O PL 15.1 Item 1)
13 – Pad (P/O PL 15.1 Item 1)
14 – Front Side Guide (P/O PL 15.1 Item
1)
15 – Knob (P/O PL 15.1 Item 1)
16 – Knob (P/O PL 15.1 Item 1)
17 – Spring (P/O PL 15.1 Item 1)
18 – Rear Side Guide (P/O PL 15.1 Item
1)
19 – Side 1 Guide Bracket (P/O PL 15.1
Item 1)
20 – Gear Rack (P/O PL 15.1 Item 1)
21 – Pinion (P/O PL 15.1 Item 1)
22 003E49861 Stopper
23 030K75541 Brake Bracket
24 – Rail Spacer (P/O PL 15.1 Item 1)
25 – Spacer (P/O PL 15.1 Item 1)
26 – Actuator (P/O PL 15.1 Item 1)
27 – Pad (P/O PL 15.1 Item 1)
28 – Tray Base (P/O PL 15.1 Item 1)
29 – Label (Max) (Not Spared)
30 604K20750 Cable Guide Kit
