January 2007
4-30
WorkCentre 7132
REP 4.2.2
Reversion 4.0
Repairs/Adjustments

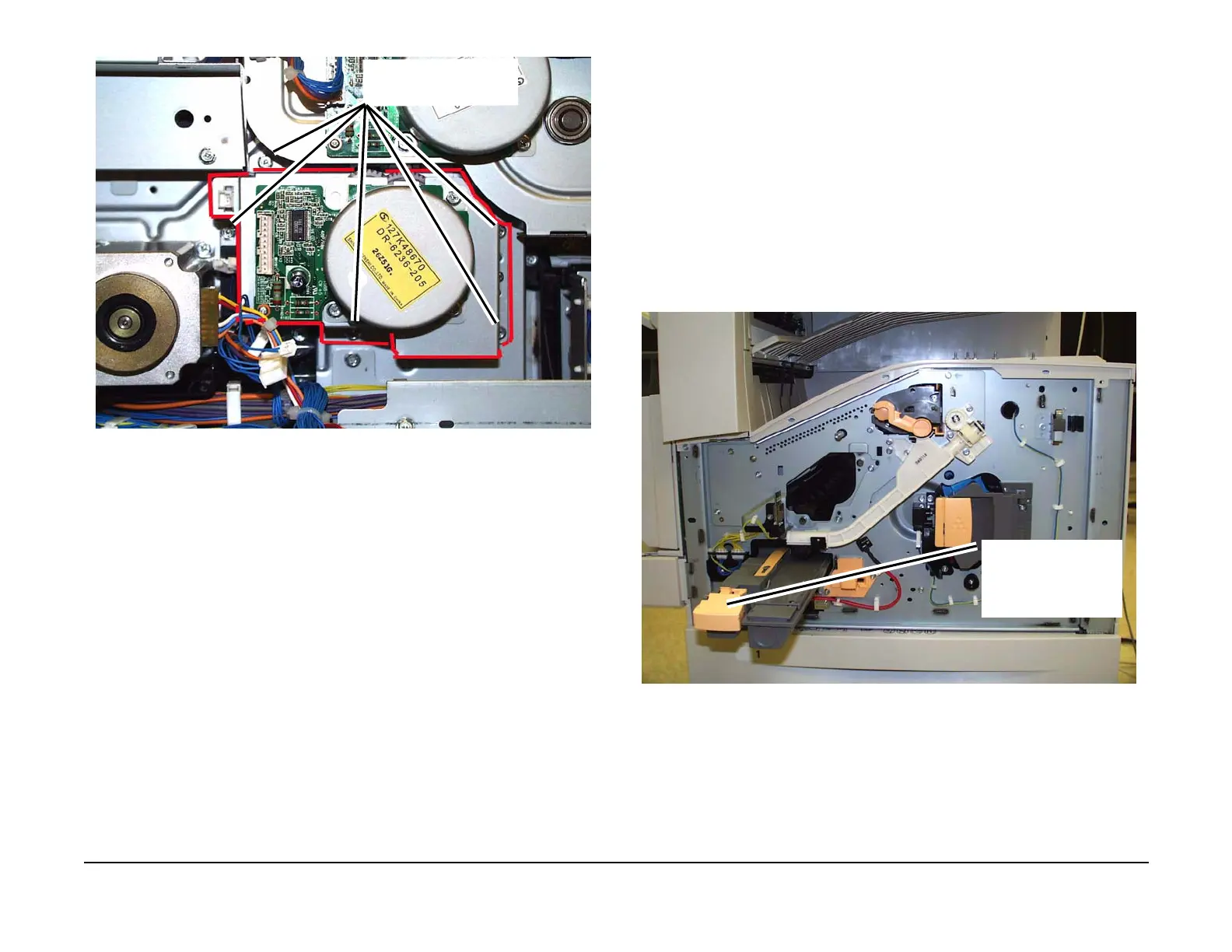

Figure 2 Removing the Developer Drive Assembly
Replacement
1. To install, carry out the removal steps in reverse order.
REP 4.2.2 IBT Module
Parts List on PL 6.1
Removal
1. Switch off the power and disconnect the power cord.
2. Remove the Front Cover. (REP 10.2.2)
3. Remove the Print Drum. (REP 4.2.3)
NOTE: Do not allow the Print Drum to be exposed to light for more than 30 seconds.
4. Store the Print Drum out of the way on a level surface and cover with paper to prevent
light shock.
NOTE: The IBT Module should be removed with the IBT Cleaner attached, especially if
the IBT Belt is to be reused.
5. Remove the Waste Toner Bottle, (Figure 1)
Figure 1 Removing the Waste Toner Bottle
6. Remove the Xerographic Drum CRUM Bracket. (Figure 2)
Remove the screws (5)
then remove the Devel-
oper Drive Assembly
1
Lift the handle and pull
the Waste Toner Bottle
from the machine
To Next Page
