WorkCentre 7132
PL 17.6
Parts-list
Reversion 4.0

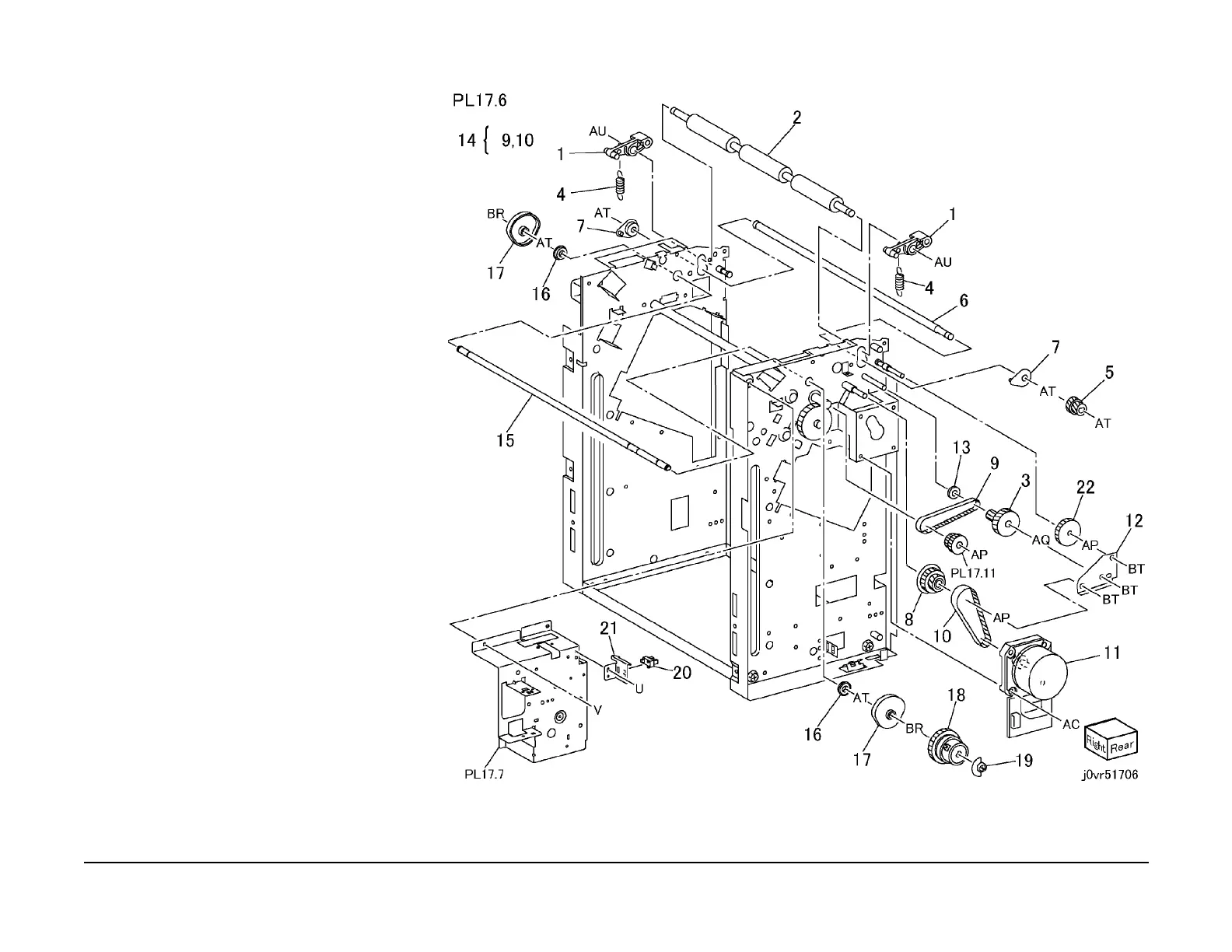

PL 17.6 Paper Transport (1 of 2)
Item Part Description
1 – Arm (Not Spared)
2 022K67450 Decurler Roll Assembly (REP
16.6.1)
3 – Gear (40/20T) (Not Spared)
4 – Spring (Not Spared)
5 – Gear (18/21T) (Not Spared)
6 – Shaft (Not Spared)
7 – Bearing (Not Spared)
8 – Gear (23/52T) (Not Spared)
9 – Belt (P/O PL 17.6 Item 14)
10 – Belt (P/O PL 17.6 Item 14)
11 127K45830 Finisher Drive Motor (REP 16.6.2)
12 – Bracket (Not Spared)
13 – Collar (Not Spared)
14 604K20490 Finisher Belt Kit
15 – Decurler Shaft Cam (Not Spared)
16 – Bearing (Not Spared)
17 – Decurler Cam (Not Spared)
18 – Decurler Clutch (Not Spared)
19 – Actuator (Not Spared)
20 – Decurler Sensor (Not Spared)
21 – Bracket (Not Spared)
22 – Gear (40T) (Not Spared)
To Next Page
