Xerox WorkCentre 7132

January 2007
5-10
WorkCentre 7132
PL 2.2
Reversion 4.0
Parts-list

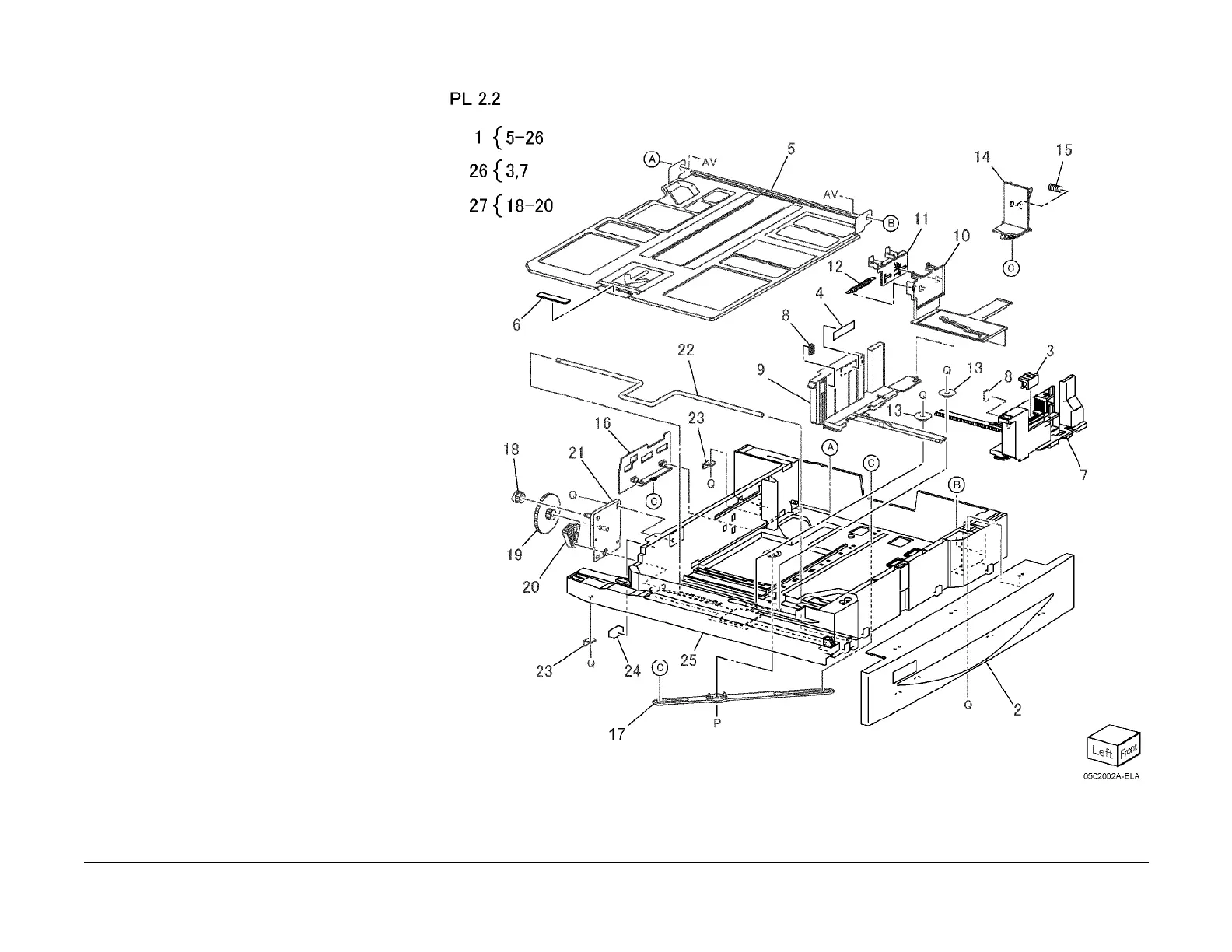

PL 2.2 Tray 1
Item Part Description
1 – Tray Assembly (Not Spared)
2 – Tray Cover (Not Spared)
3 010E94240 Slide Lock
4 – Label (Max) (P/O PL 2.2 Item 1)
5 – Bottom Plate (P/O PL 2.2 Item 1)
6 – Bottom Pad (P/O PL 2.2 Item 1)
7 – Front Side Guide (P/O PL 2.2 Item
1, 7)
8 – Tray Pad (P/O PL 2.2 Item 1)
9 – Right Side Guide (P/O PL 2.2 Item
1)
10 – Side Actuator (P/O PL 2.2 Item 1)
11 – Side Actuator (P/O PL 2.2 Item 1)
12 – Spring (P/O PL 2.2 Item 1)
13 – Pinion (P/O PL 2.2 Item 1)
14 – End Guide (P/O PL 2.2 Item 1)
15 – Spring Guide (P/O PL 2.2 Item 1)
16 – End Guide Actuator (P/O PL 2.2
Item 1)
17 – End Link Guide (P/O PL 2.2 Item 1)
18 – Gear (13) (P/O PL 2.2 Item 1, 27)
19 – Gear (13/60) (P/O PL 2.2 Item 1,
27)
20 – Gear (60) (P/O PL 2.2 Item 1, 27)
21 – Rear Plate (P/O PL 2.2 Item 1)
22 – Lift Shift (P/O PL 2.2 Item 1)
23 – Right Tray Stopper (P/O PL 2.2
Item 1)
24 – Seal (P/O PL 2.2 Item 1)
25 – Cassette Housing (P/O PL 2.2 Item
1)
26 – Front Side Guide (P/O PL 2.2 Item
1)
27 604K20541 Gear Tray Kit
