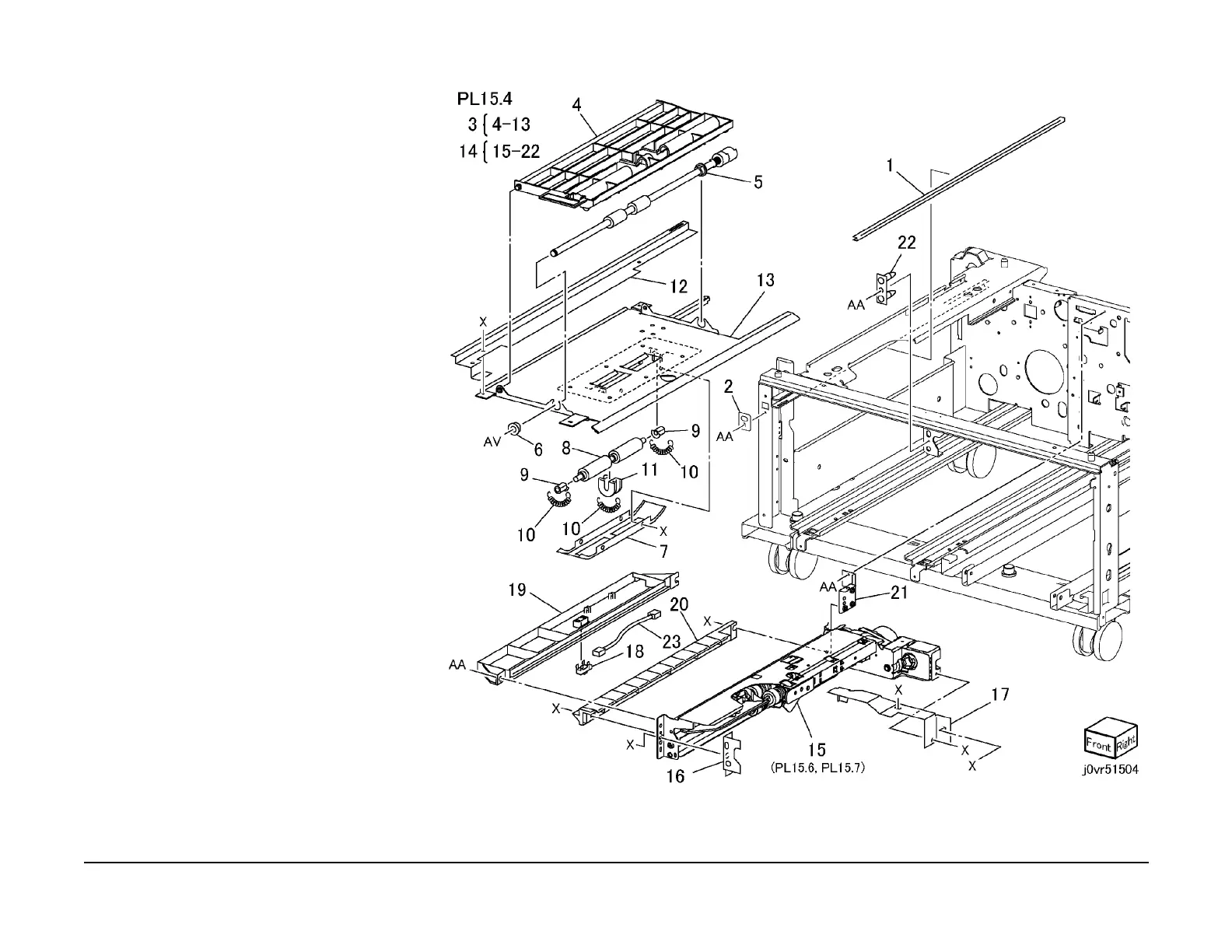

PL 15.4 Paper Feed (1 of 2)-TTM
Item Part Description
1 – Guide Rail (P/O PL 15.3 Item 2)
2 – Guide (P/O PL 15.3 Item 2)
3 059K26340 Transport Assembly
4 – Upper Chute (P/O PL 15.4 Item 3)
5 059K26350 Takeaway Roll
6 413W77559 Bearing
7 – pinch Cover (P/O PL 15.4 Item 3)
8 059E98860 Pinch Roll
9 – Bearing (P/O PL 15.4 Item 3)
10 – Spring (P/O PL 15.4 Item 3)
11 – Bearing (P/O PL 15.4 Item 3)
12 – Transport Rail (P/O PL 15.4 Item 3)
13 – Low Chute (P/O PL 15.4 Item 3)
14 059K42960 Feeder Assembly
15 059K42524 Tray 3 Feeder (REP 13.4.1)
16 – Bracket (P/O PL 15.4 Item 14)
17 – Cover (P/O PL 15.4 Item 14)
18 930W00212 Sensor
19 – Upper Chute (P/O PL 15.4 Item 14)
20 – Lower Chute (P/O PL 15.4 Item 14)
21 – Bracket (P/O PL 15.4 Item 14)
22 – Harness (P/O PL 15.4 Item 14)
23 – Harness (Not Spared)
To Next Page
