January 2007
4-151
WorkCentre 7132
REP 16.1.1, REP 16.1.2
Repairs/Adjustments
Reversion 4.0
REP 16.1.1 H-Transport Assembly
Parts List on PL 17.1
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
CAUTION
Check that “Ready to Copy” is displayed on the Control Panel display.
1. Remove the following parts:
• Finisher Assembly (REP 16.1.2)
2. Move the H-Transport Assembly. (Figure 1)
1. Remove the screws (x2).
2. Remove the H-Transport Assembly.

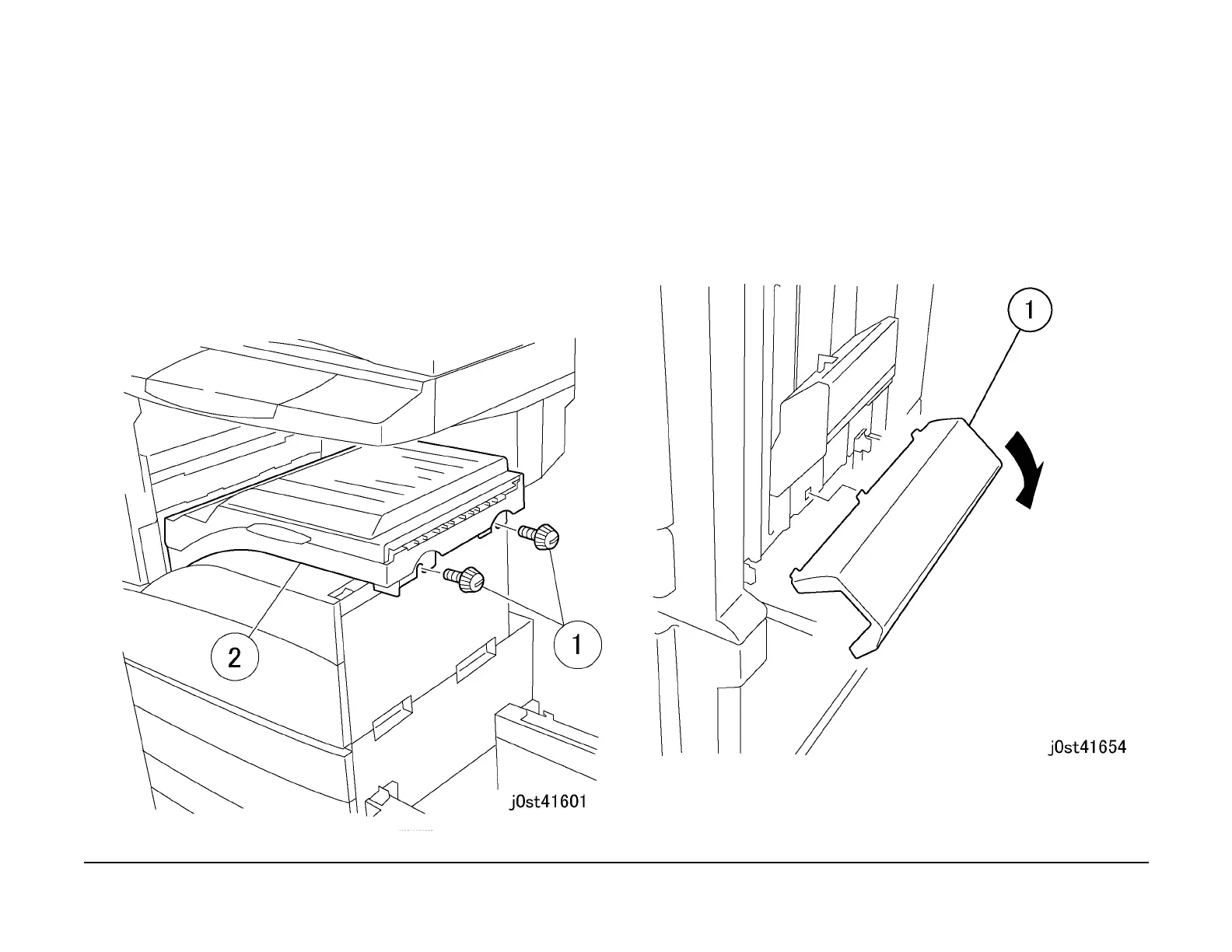

Figure 1 Removing the H-Transport Assembly
REP 16.1.2 Finisher Assembly
Parts List on PL 17.1
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
CAUTION
Check that “Ready to Copy” is displayed on the Control Panel display.
1. Remove the Right Cover. (Figure 1)
1. Remove the Right Cover.
Figure 1 Removing the Right Cover
2. Remove the cover. (Figure 2)
1. Remove the cover.
To Next Page
