Xerox WorkCentre 7132

January 2007
4-150
WorkCentre 7132
REP 15.8.1
Reversion 4.0
Repairs/Adjustments

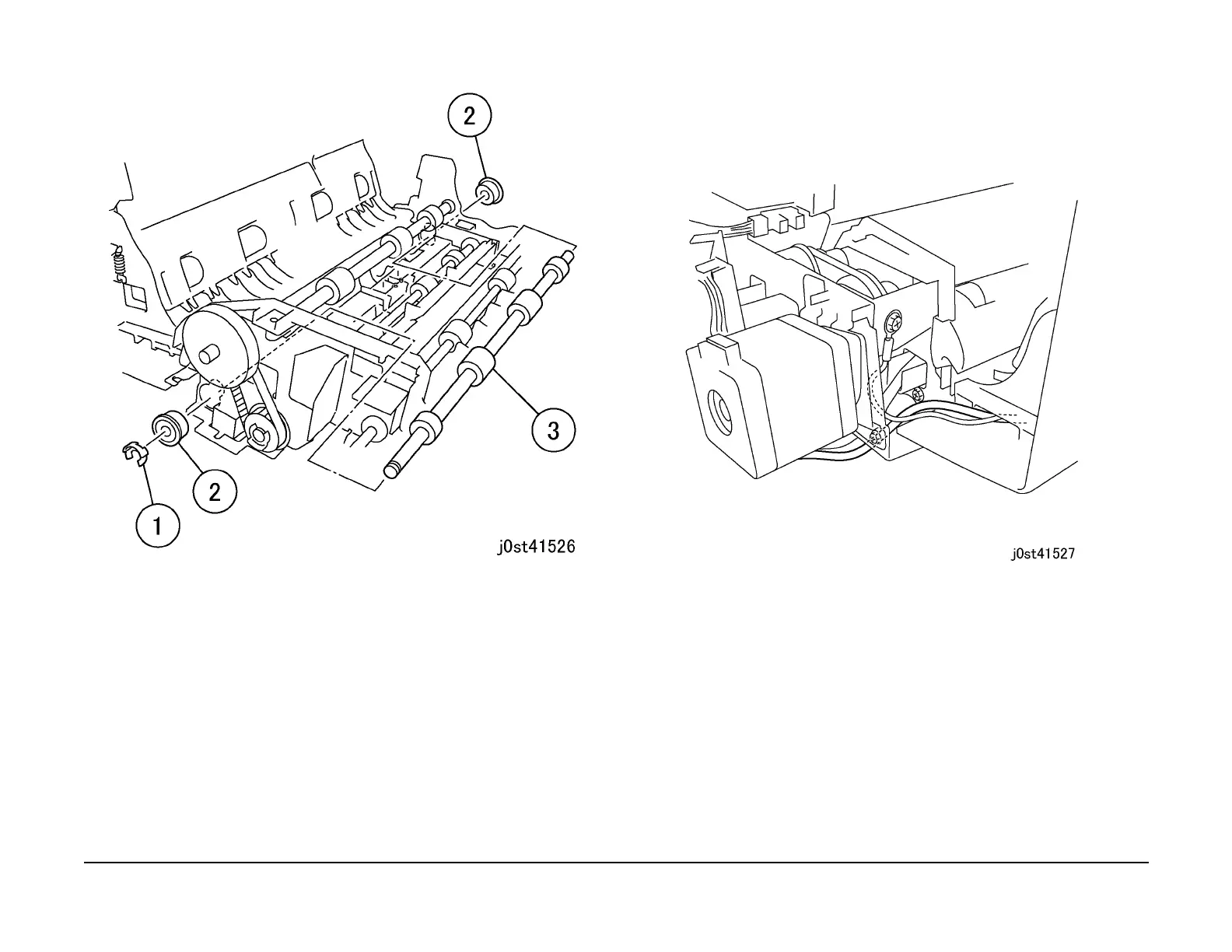

Figure 6 Removing the Registration Roll
Replacement
1. When installing the motor unit, pull the Wire Harness as shown in Fig. 7. (Figure 7)
Figure 7 Pulling the Wire Harness
