WorkCentre 7132
REP 15.8.1
Repairs/Adjustments
Reversion 4.0

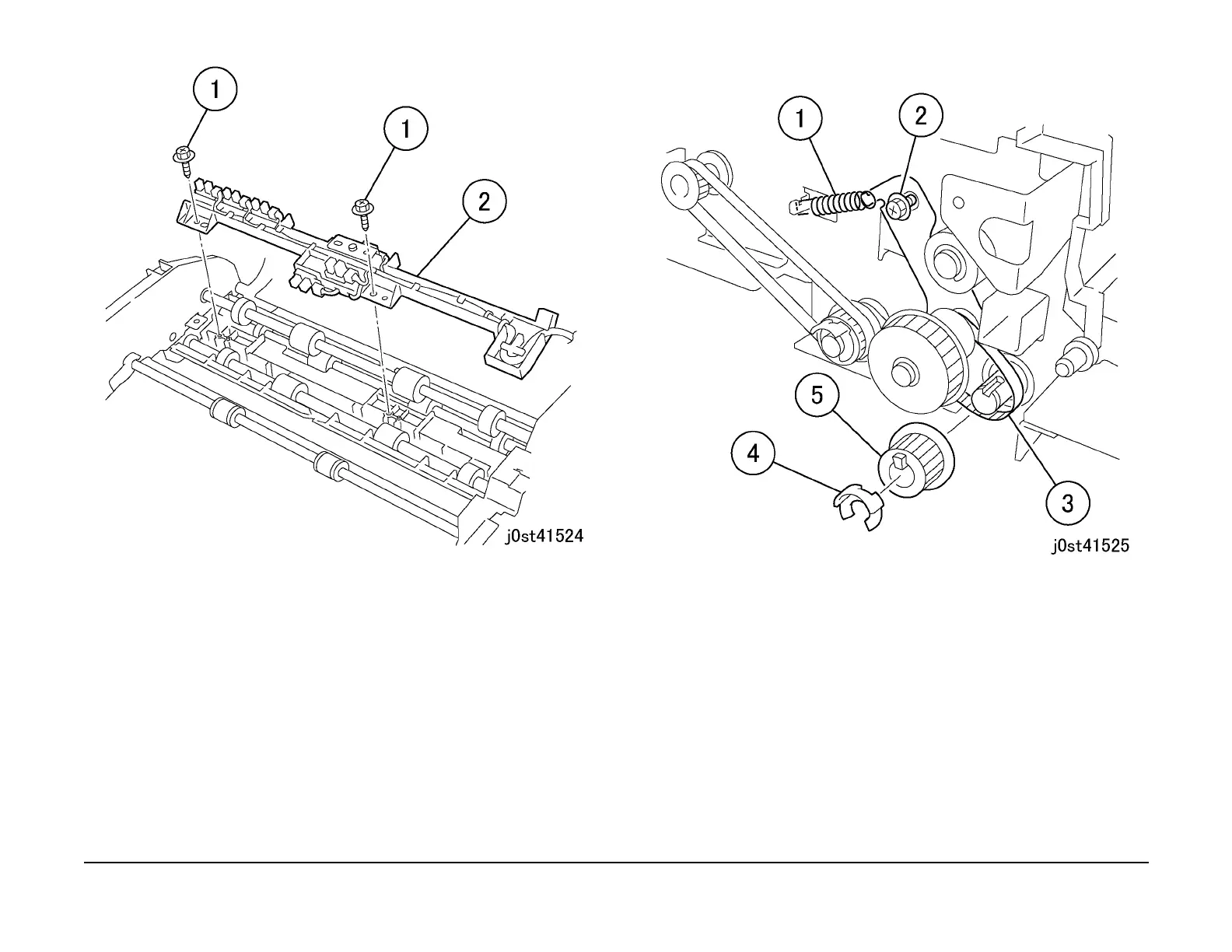

Figure 4 Removing the sensor holder
11. Loosen the belt tension. (Figure 5)
1. Remove the spring.
2. Loosen the screw.
3. Loosen the belt tension.
4. Remove the E-Clip.
5. Remove the gear.
Figure 5 Loosening the belt tension
12. Remove the Registration Roll. (Figure 6)
1. Remove the E-Clip.
2. Remove the bearings (2).
3. Remove the Registration Roll.
