Xerox WorkCentre 7132 Service Documentation

January 2007
5-88
WorkCentre 7132
PL 22.1
Reversion 4.0
Parts-list

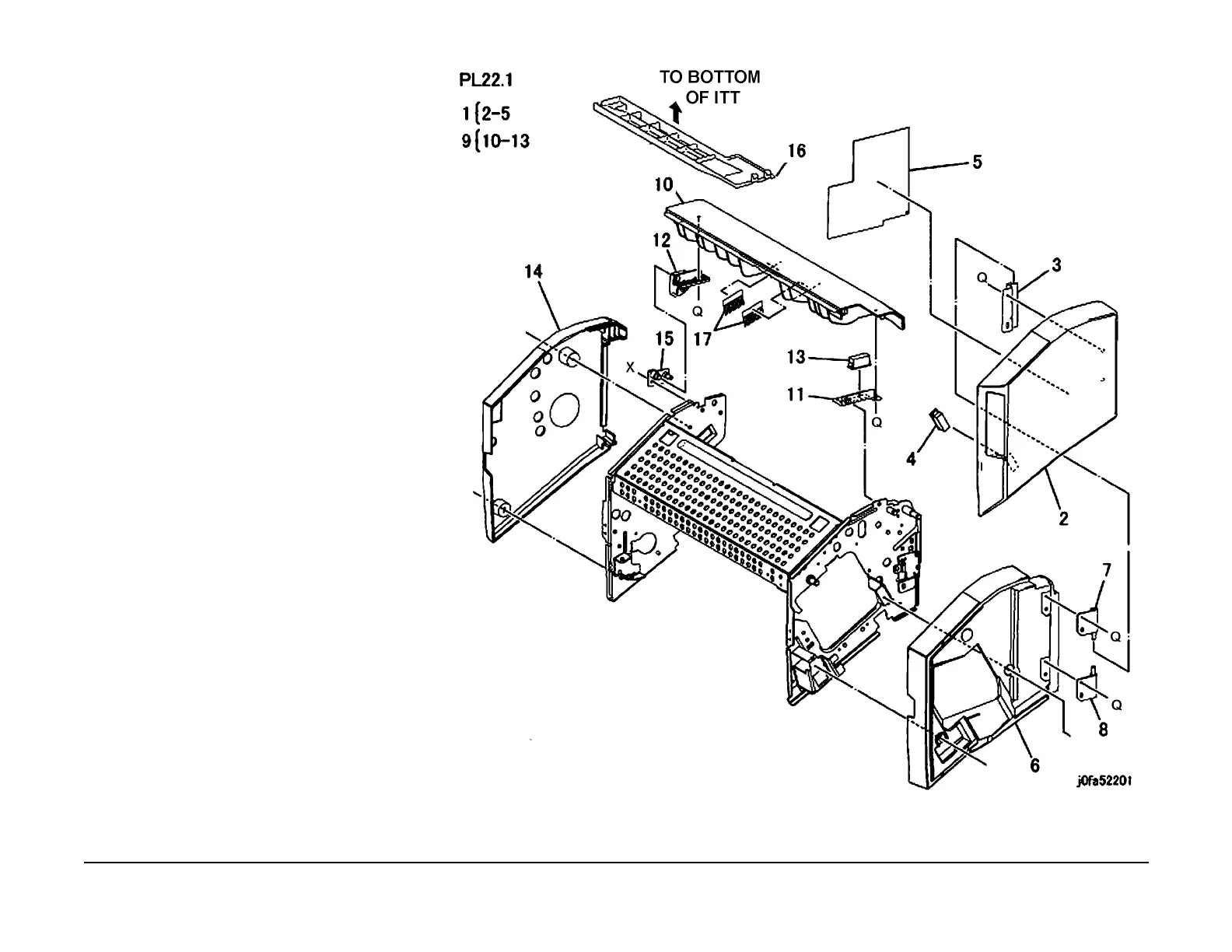

PL 22.1 Finisher Assembly (Part 1 of
2)
Item Part Description
1 802K85541 Front Cover Assembly
2 – Front Cover (P/O PL 22.1 Item 1)
3 – Bracket (P/O PL 22.1 Item 1)
4 – Magnet (P/O PL 22.1 Item 1)
5 – Label (P/O PL 22.1 Item 1)
6 802E95552 Front Inner Cover
7 068K29870 Hinge
8 068K29880 Hinge
9 802K85550 Top Cover Assembly
10 – Top Cover (P/O PL 22.1 Item 9)
11 – Bracket (P/O PL 22.1 Item 9)
12 – Stopper (P/O PL 22.1 Item 9)
13 – Magnet (P/O PL 22.1 Item 9)
14 802E95570 Rear Cover
15 – Hinge (Not Spared)
16 – ITT Cover (Not Spared)
17 042E92330 Eliminator
