Xerox WorkCentre 7132

January 2007
5-51
WorkCentre 7132
PL 14.6
Parts-list
Reversion 4.0

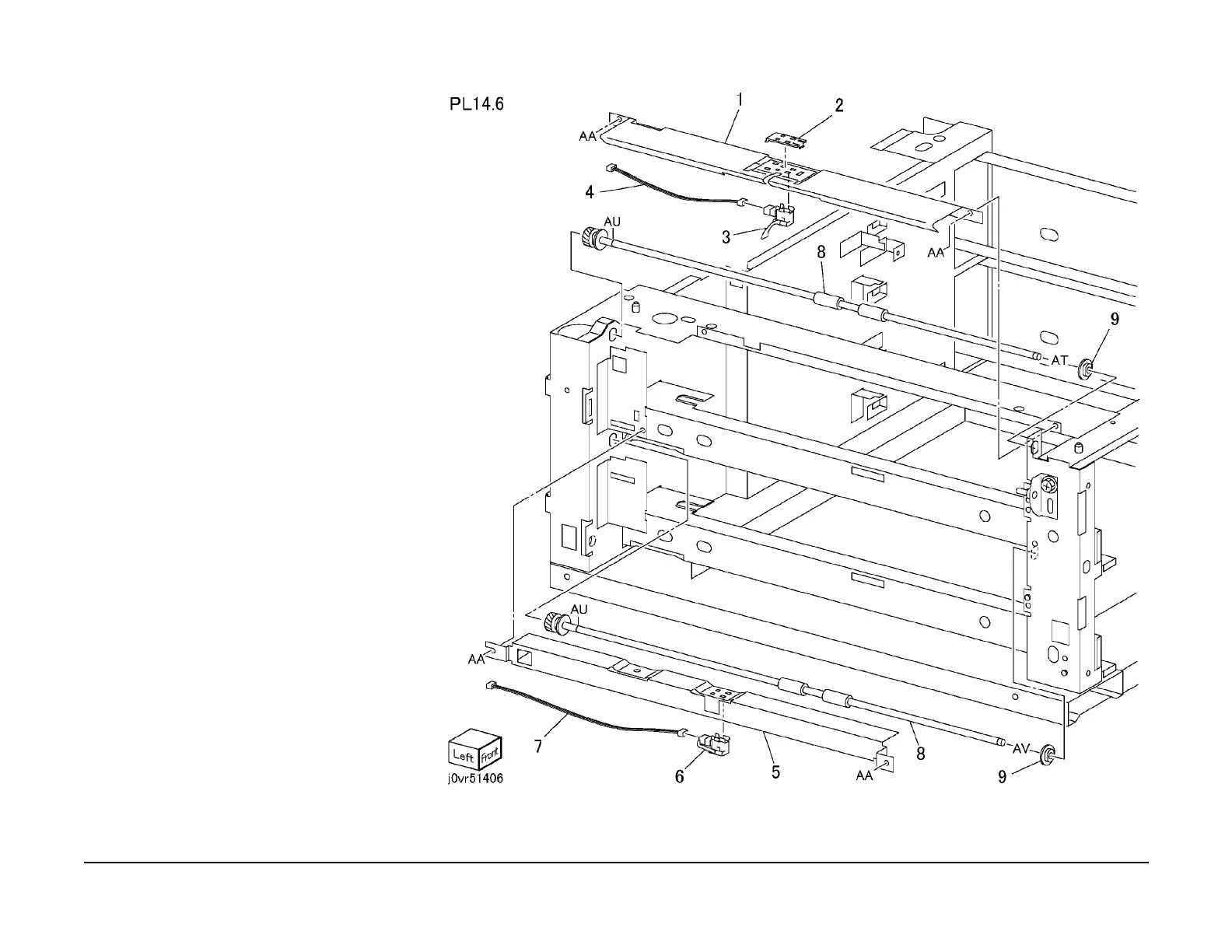

PL 14.6 Takeaway Roll-2TM
Item Part Description
1 – Chute (Not Spared)
2 – Cover Sensor (Not Spared)
3 130K64121 Tray 2 Feed Out Sensor
4 962K18171 Wire Harness
5 – Chute (Not Spared)
6 130K64471 Feed Out Tray 3 Sensor
7 962K18900 Feeder Harness
8 059K40370 Takeaway Roll
9 – Bearing (Not Spared)
