Xerox WorkCentre 7132 Service Documentation

January 2007
4-166
WorkCentre 7132
REP 16.6.1
Reversion 4.0
Repairs/Adjustments
REP 16.6.1 Decurler Roll
Parts List on PL 17.6
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
CAUTION
Check that “Ready to Copy” is displayed on the Control Panel display.
1. Remove the following parts:
• Front Cover Assembly (REP 16.1.2)
• Rear Cover (REP 16.4.1)

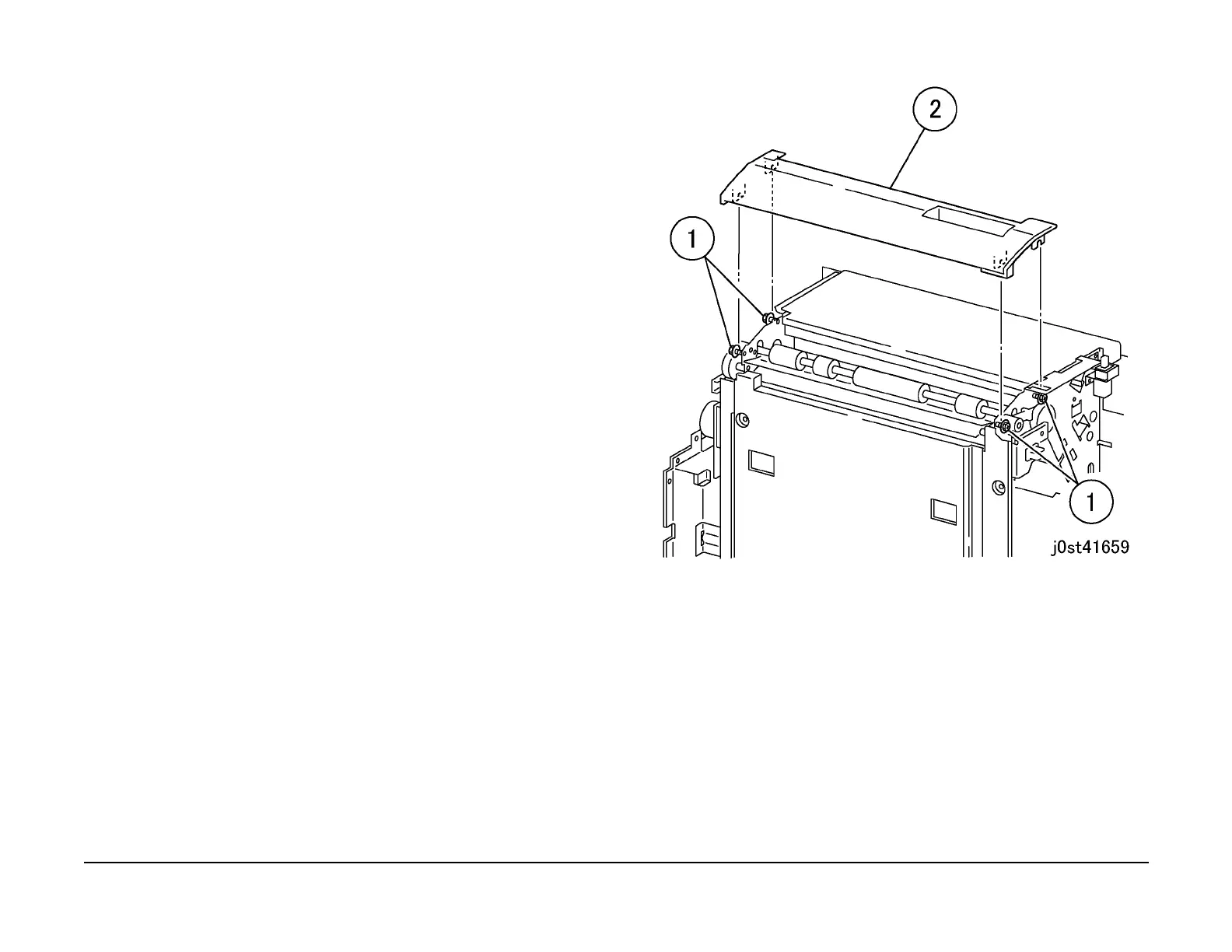

2. Remove the Top Cover. (Figure 1)
1. Loosen the screws (x4).
2. Remove the Top Cover.
Figure 1 Removing the Top Cover
3. Remove the arm. (Figure 2)
1. Remove the spring.
2. Remove the E-Clip.
3. Remove the arm.

Xerox WorkCentre 7132 Specifications

General

Functions	Print, Copy, Scan, Fax
Printing Technology	Laser
Print Speed (Black)	32 ppm
Print Resolution	1200 x 1200 dpi
Max Resolution (BW)	1200 x 1200 dpi
Duplex Printing	Yes
Scan Resolution	600 x 600 dpi
Copier Max Resolution	600 x 600 dpi
Connectivity	Ethernet, USB
Scanner Type	Flatbed
Fax Speed	33.6 Kbps
USB Connectivity	USB 2.0
Media Size	A4, Letter, Legal
Copy Speed (Black)	32 ppm
Display	Color Touch Screen
Network Connectivity	Ethernet
